51 49 000 Removing and installing / replacing trim panel for trunk lid (touring)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove trunk light (on rear lid), refer to 63 31 080 REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT LIGHT .

Open tailgate.

Detach trim (1) from retainers (2) and remove.

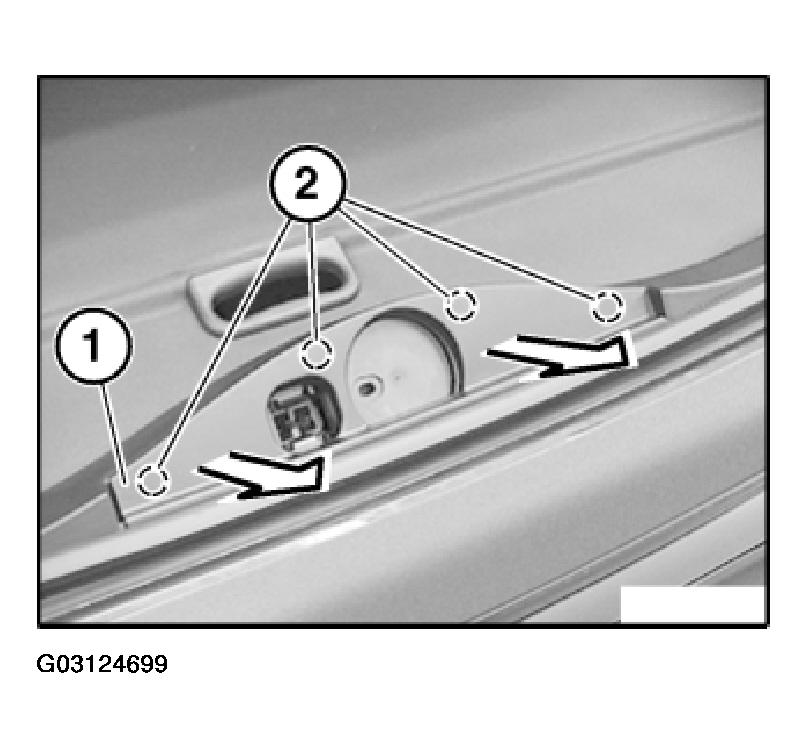

Fig 1: Removing Trim From Retainers

G03124699

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach retainers (1) to panel.

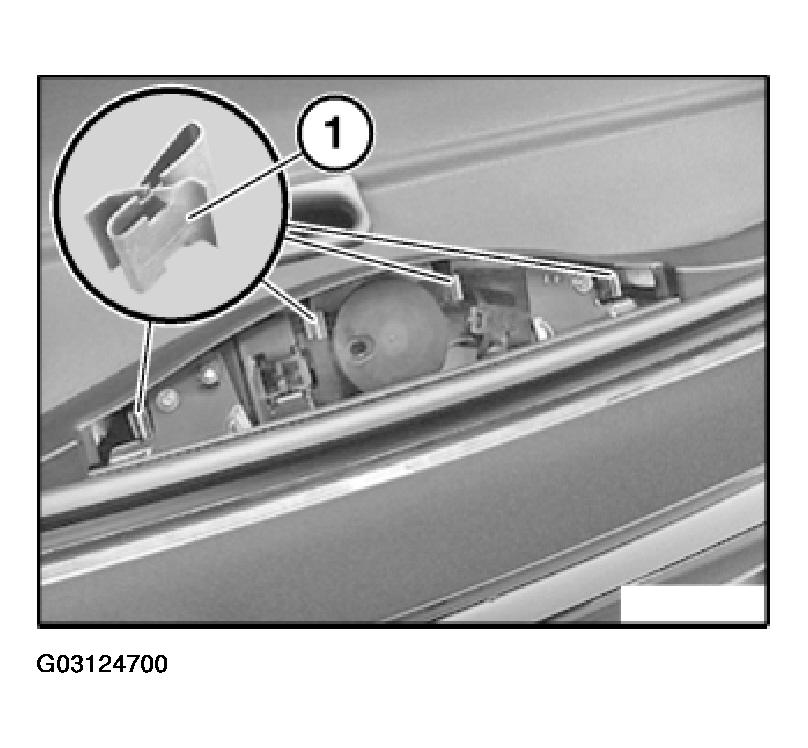

Fig 2: Attaching Retainers To Panel

G03124700

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

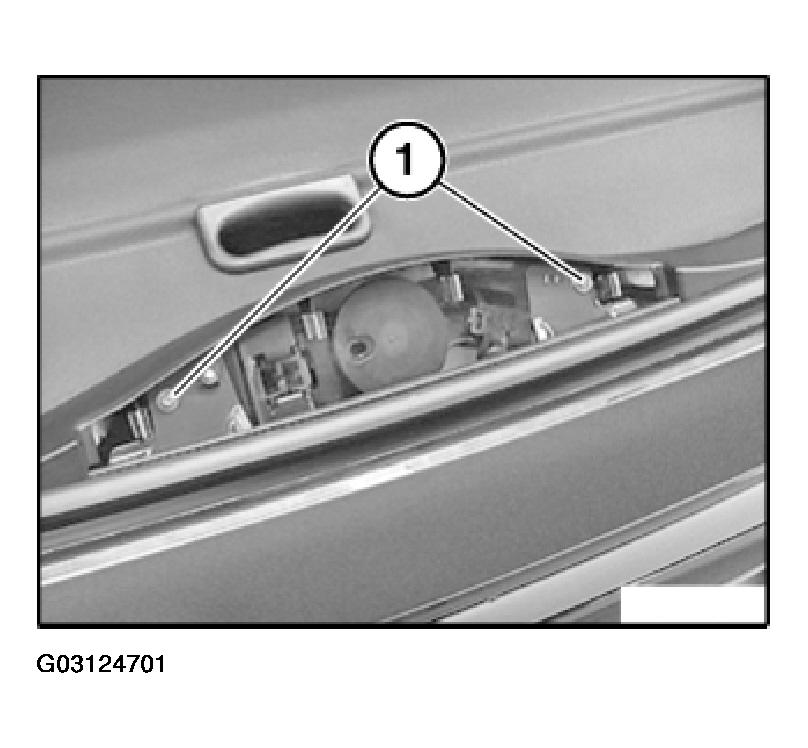

Fig 3: Releasing Screws

G03124701

Courtesy of BMW OF NORTH AMERICA, INC.

Open trunk lid.

Lift out detents (1).

Feed panel (2) out of mounts (3) and remove.

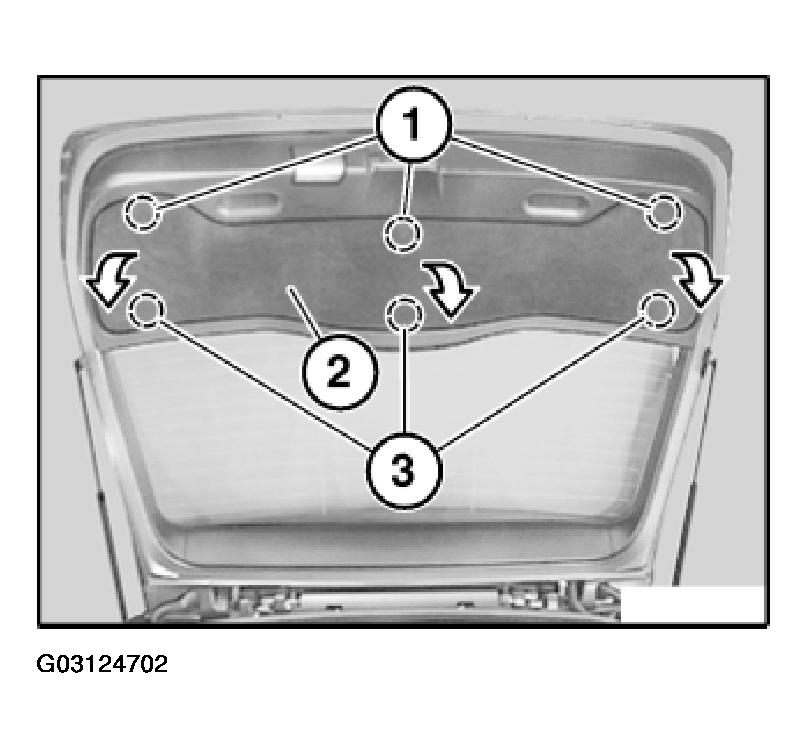

Fig 4: Removing Panel Out Of Mounts

G03124702

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guides (1) and catches (2) of panel (3) must not be damaged.

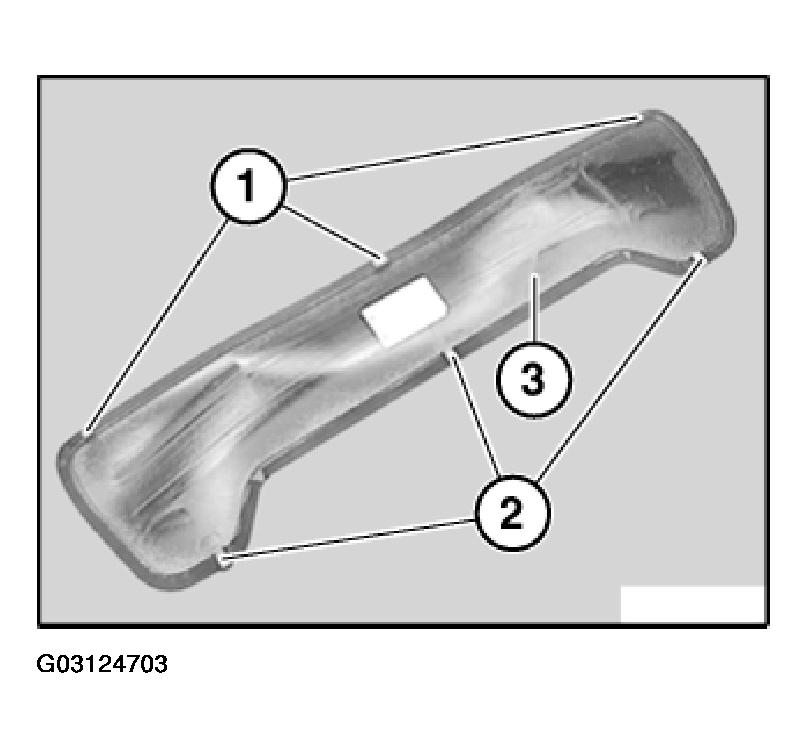

Fig 5: Identifying Guides & Catches Of Panel

G03124703

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip plate (1).

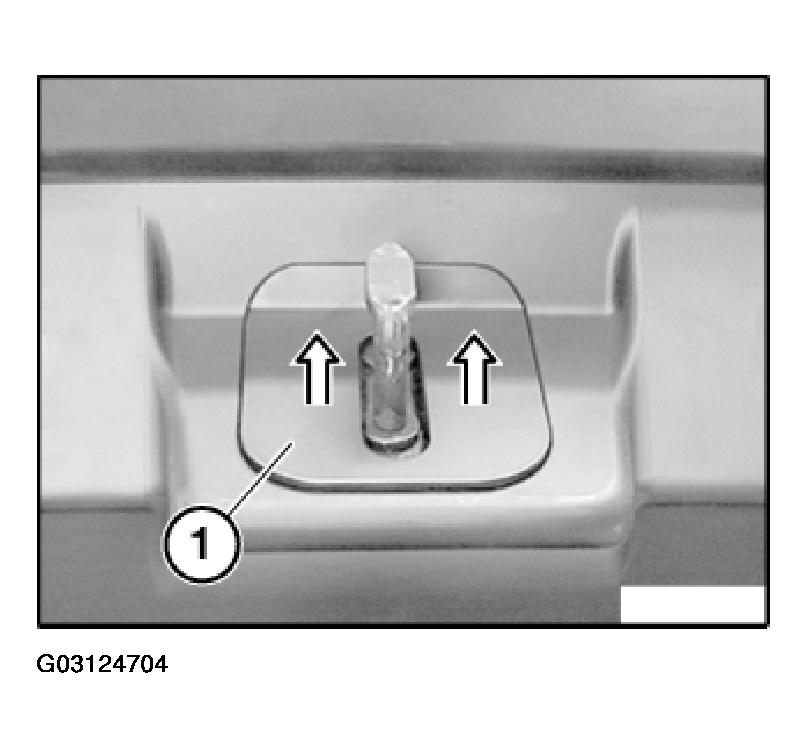

Fig 6: Unclipping Plate

G03124704

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Unclip clips (2) and remove panel (3).

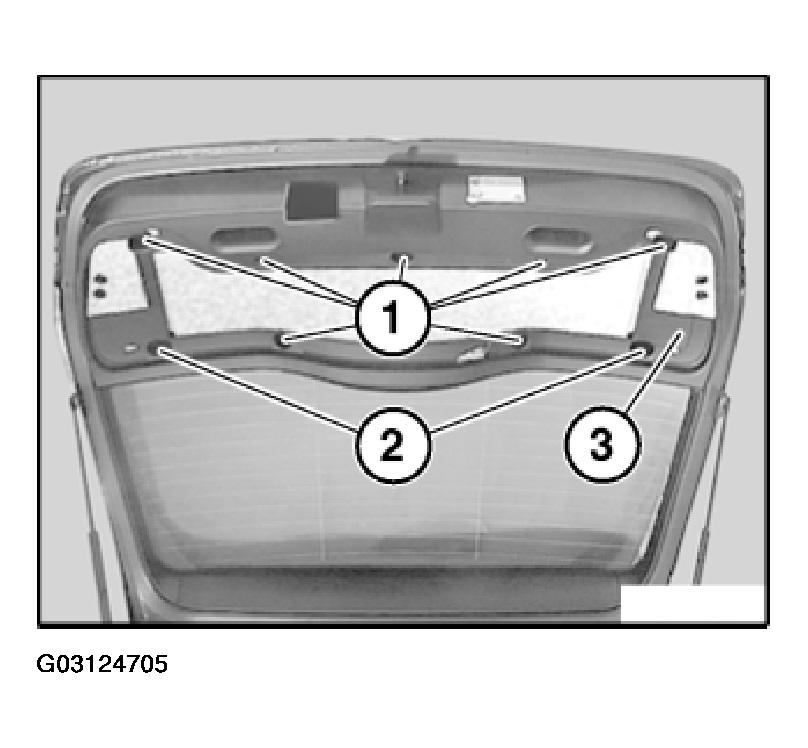

Fig 7: Removing Panel

G03124705

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty retainers (1), clips (2) or metal nuts (3) of panel (4).

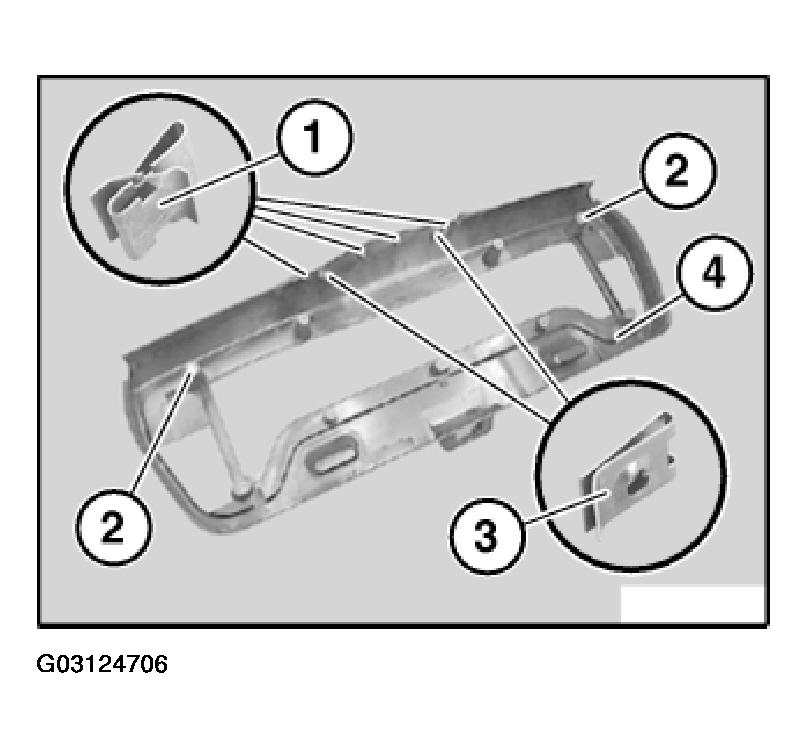

Fig 8: Identifying Retainers, Clips Or Metal Nuts Of Panel

G03124706

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Remove insulating mat (1) from old panel (2) and insert in new panel.

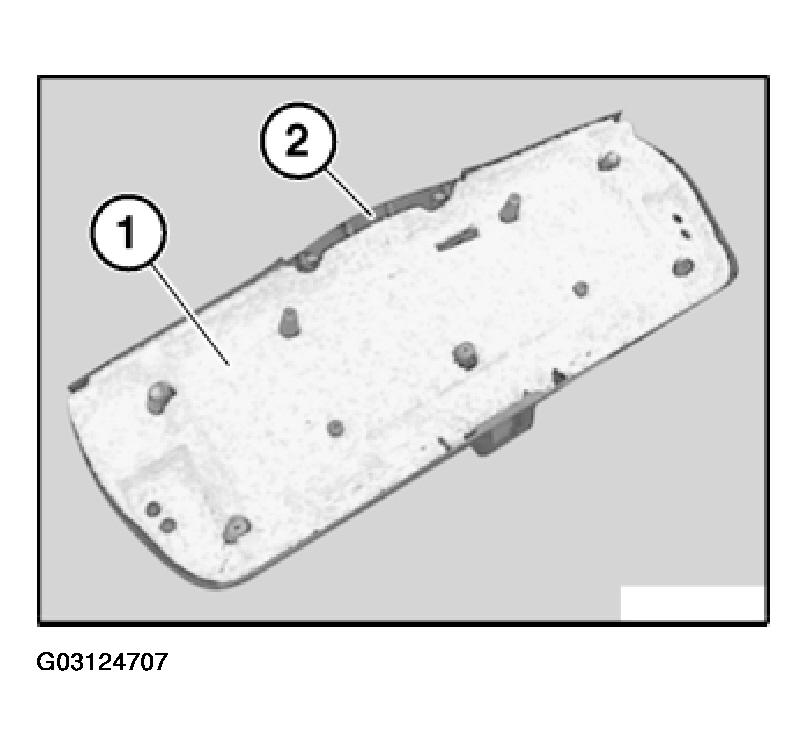

Fig 9: Removing Insulating Mat

G03124707

Courtesy of BMW OF NORTH AMERICA, INC.
