51 12 432 Replacing body molding for center rear bumper (Touring)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove side molding for rear bumper, left and right, refer to REPLACING LEFT OR RIGHT SIDE MOLDING FOR REAR BUMPER .

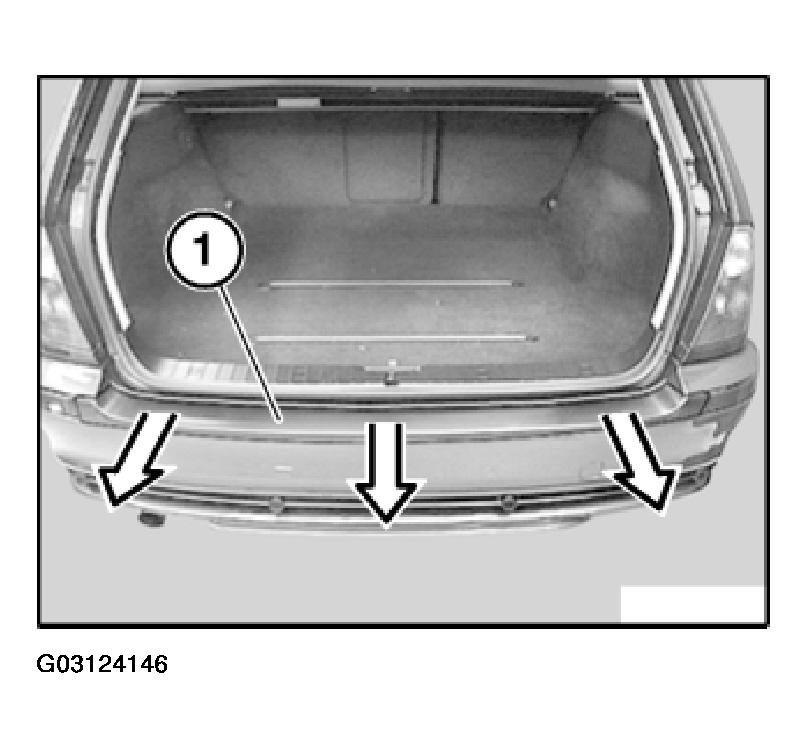

Unclip and remove molding (1) with special tool 00 9 321 (folding leg).

Fig 1: Unclipping & Removing Molding

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

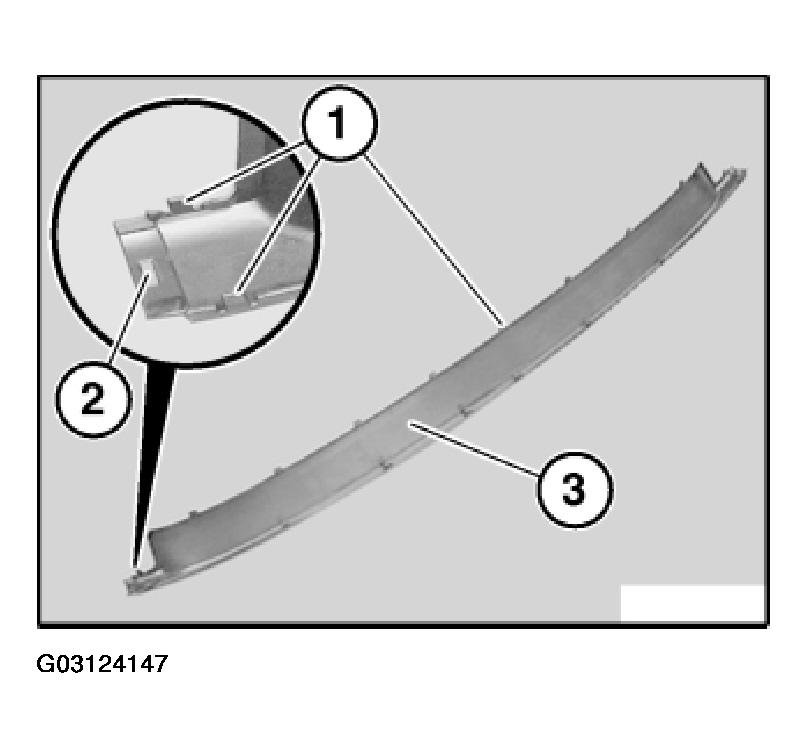

Clips (1) and bore (2) of molding (3) must not be damaged.

Fig 2: Installing Clips and bore of molding
Courtesy of BMW OF NORTH AMERICA, INC.
