51 12 435 Replacing left or right side molding for rear bumper

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 321

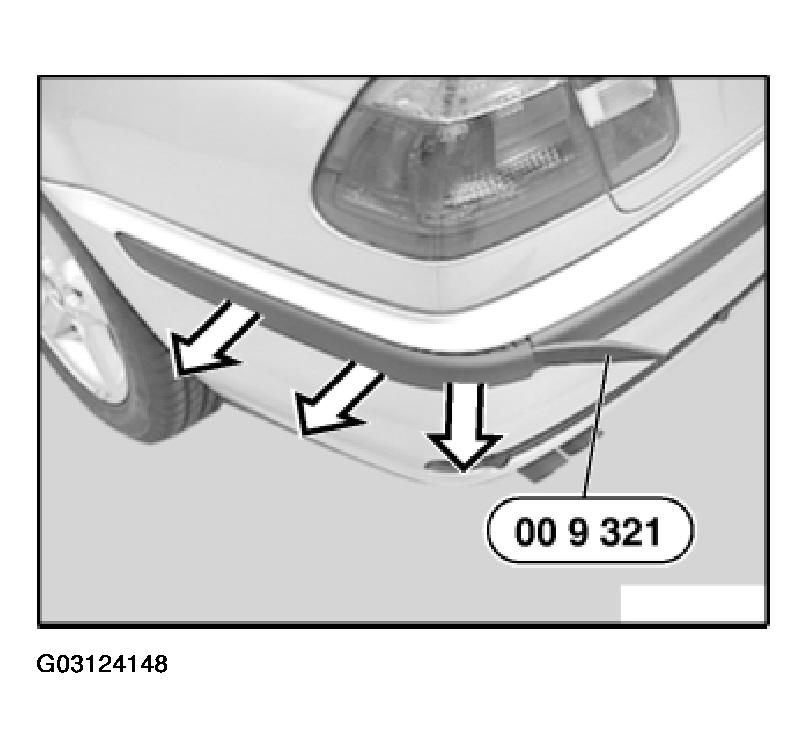

Unclip rubbing strip first at rear then at side with special tool 00 9 321 (fishbone) and remove at an angle towards rear.

Fig 1: Unclipping Rubbing Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

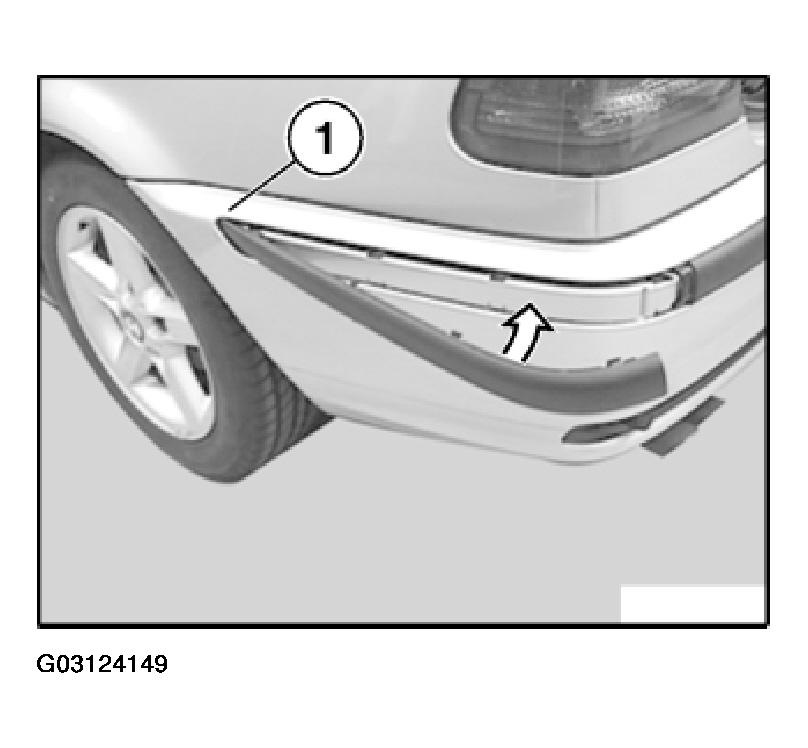

Insert rubbing strip first at front (1) and then clip into place.

Fig 2: Inserting Rubbing Strip
Courtesy of BMW OF NORTH AMERICA, INC.

Saloon/sedan, compact:

Installation:

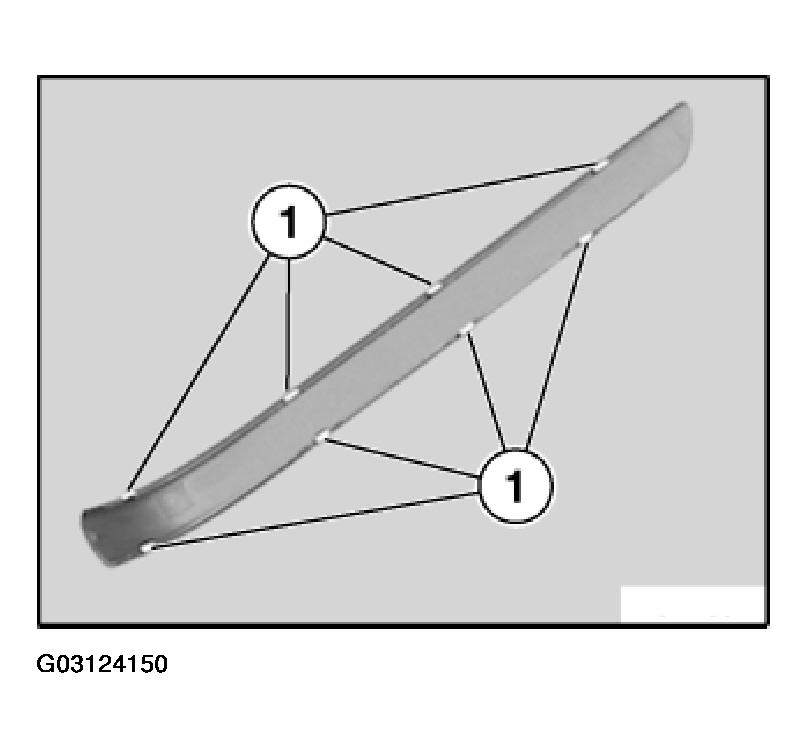

Replace rubbing strip if detent lugs (1) are faulty.

Fig 3: Replacing Rubbing Strip
Courtesy of BMW OF NORTH AMERICA, INC.

touring:

Installation:

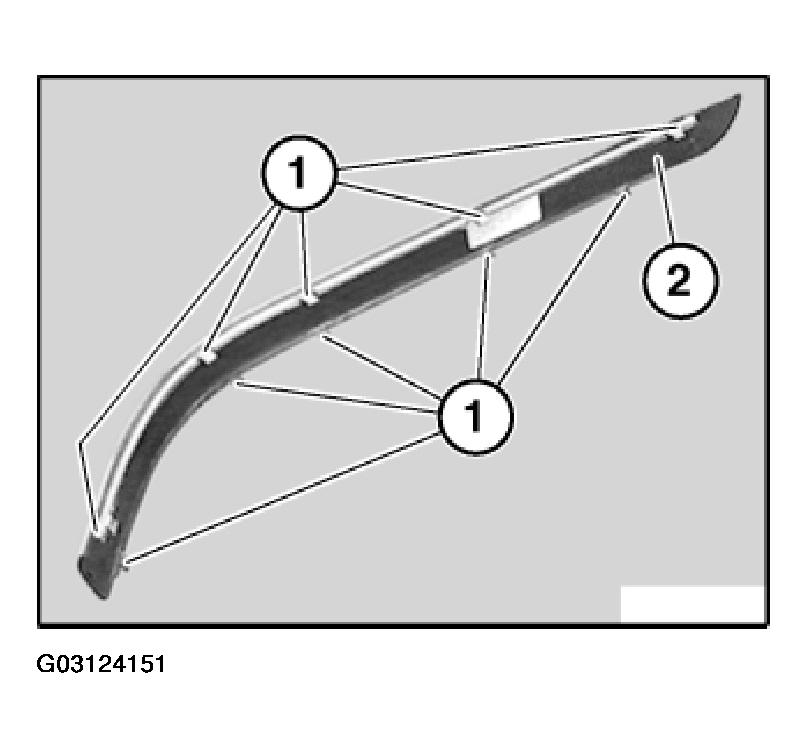

Replace rubbing strip (2) if detent lugs (1) are faulty.

Fig 4: Replacing Rubbing Strip
Courtesy of BMW OF NORTH AMERICA, INC.
