51 12 080 Removing and installing/replacing finisher strip on bumper trim

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

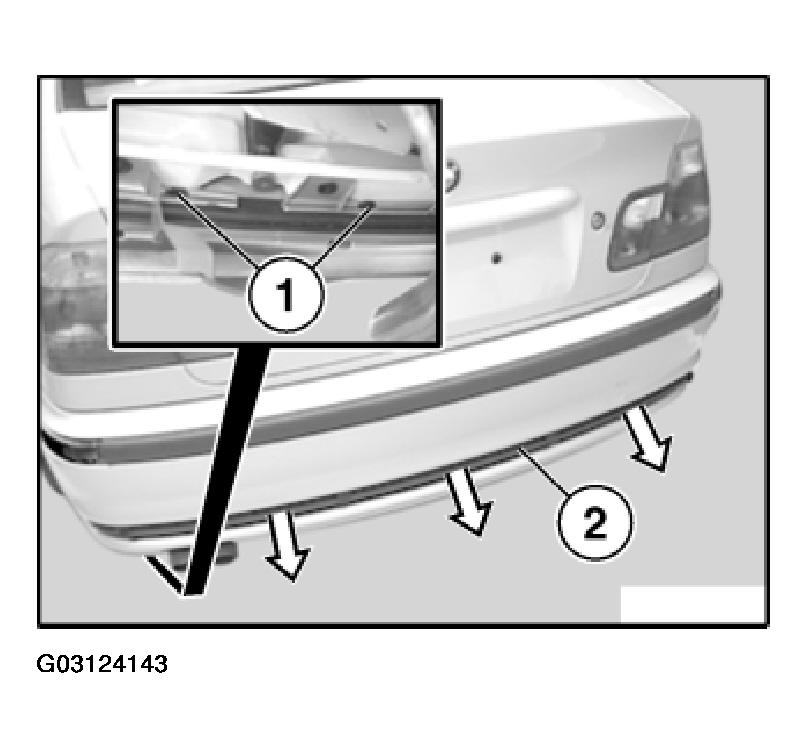

Remove detent lugs (1) on one side from below, then unclip rest of finisher strip (2).

Version without Park Distance Control (PDC):

Remove finisher strip (2).

Fig 1: Removing Finisher Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Version with Park Distance Control (PDC):

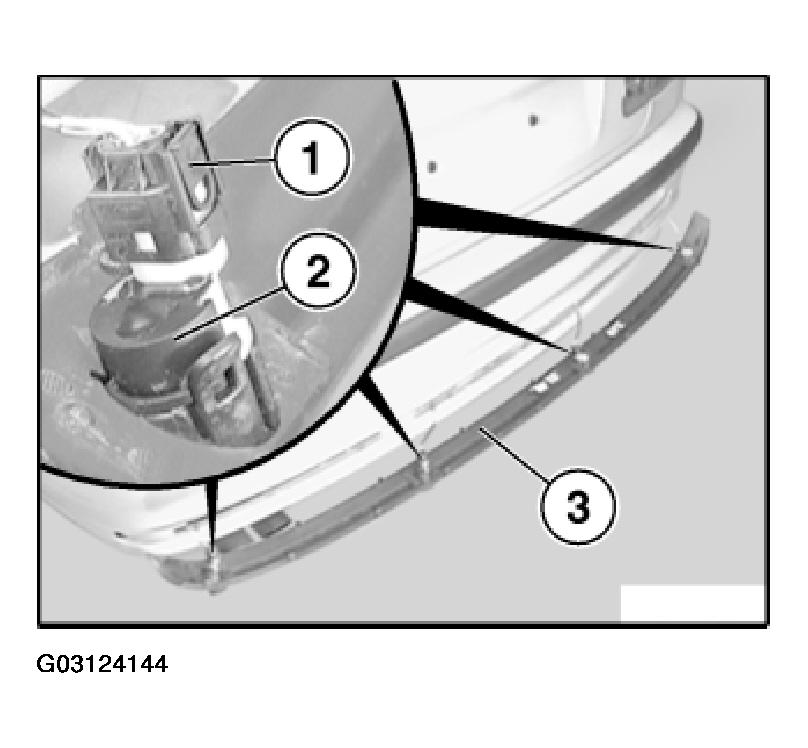

If necessary, disconnect plug connections (1) from ultrasonic converters (2) and finisher strip (3).

Fig 2: Disconnecting Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

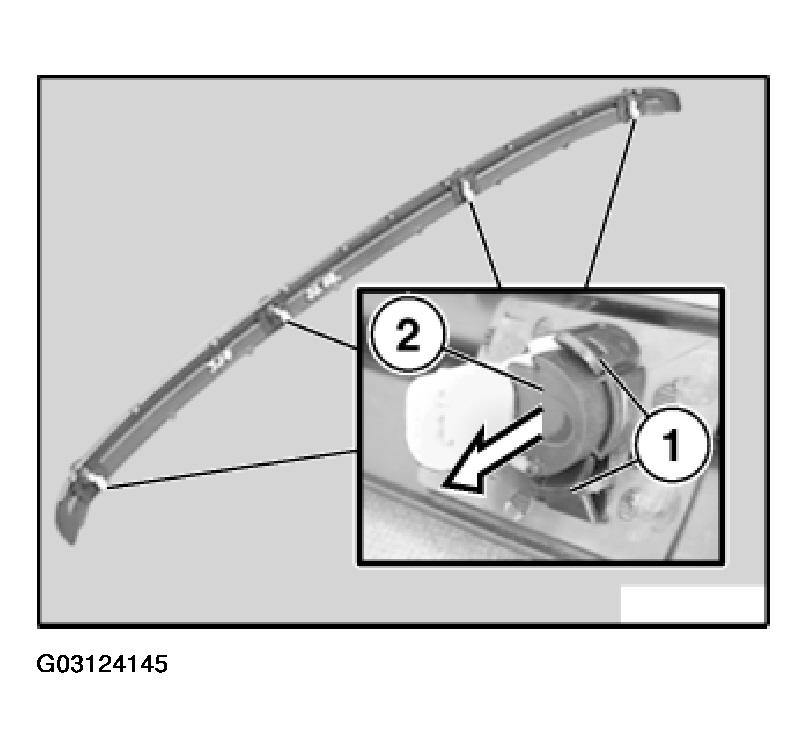

If necessary, remove retainers (1) and ultrasonic converter (2).

Fig 3: Removing Retainers & Ultrasonic Converter

Courtesy of BMW OF NORTH AMERICA, INC.
