51 36 070 Removing and installing left or right rear side window (touring): Notes
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
The "Instructions for window cementing" are an essential part of these repair instructions and must be followed without fail, refer to 51 31... INSTRUCTIONS ON GLUING WINDSCREEN
.
Remove inside window cavity trim for side window at rear, refer to REMOVING AND INSTALLING / REPLACING INNER WINDOW CAVITY COVER STRIP FOR REAR LEFT OR RIGHT SIDE WINDOW (TOURING) .
Remove inside window cavity trim for side window at rear, refer to REMOVING AND INSTALLING / REPLACING INNER WINDOW CAVITY COVER STRIP FOR REAR LEFT OR RIGHT SIDE WINDOW (TOURING) .
CAUTION:
Cover rear side panels with protective covers.
Tape off body on inside around side window with fabric adhesive tape.
In addition, mask area around C-pillar finisher on rear door.
Tape off body on inside around side window with fabric adhesive tape.
In addition, mask area around C-pillar finisher on rear door.

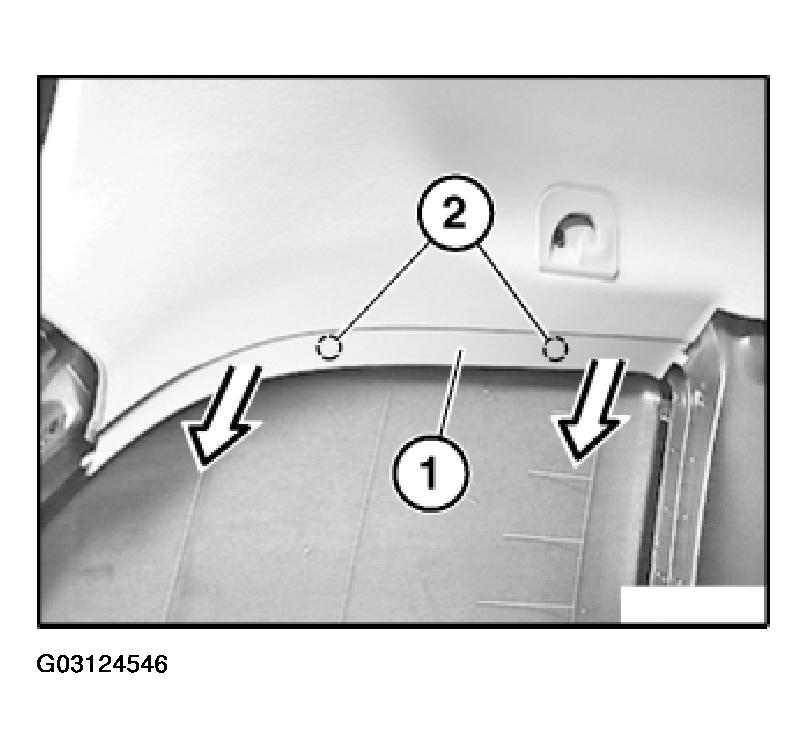

Pull off finisher (1) with clips (2).
Installation:

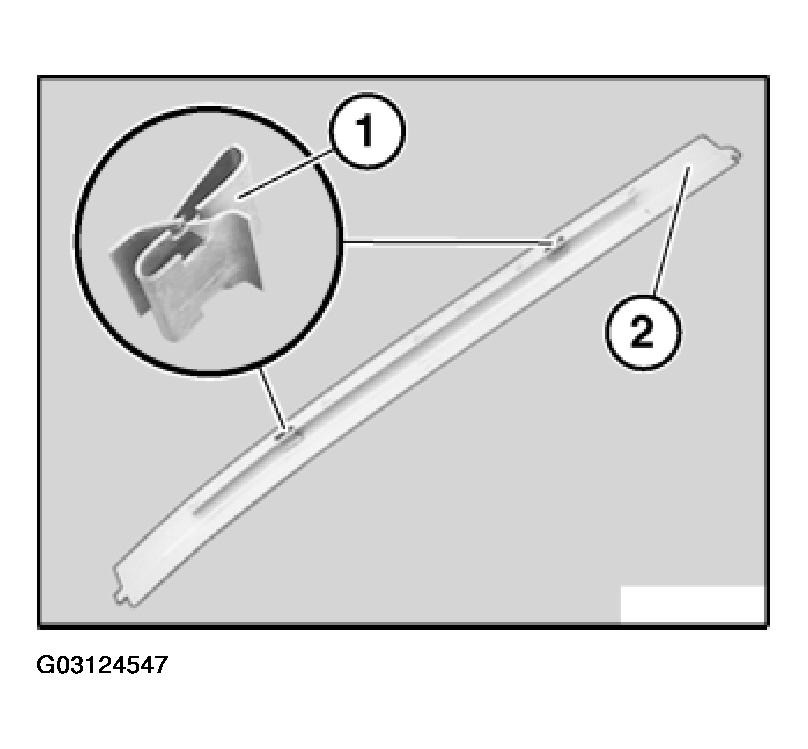

If necessary, replace faulty clips (1) on finisher (2).

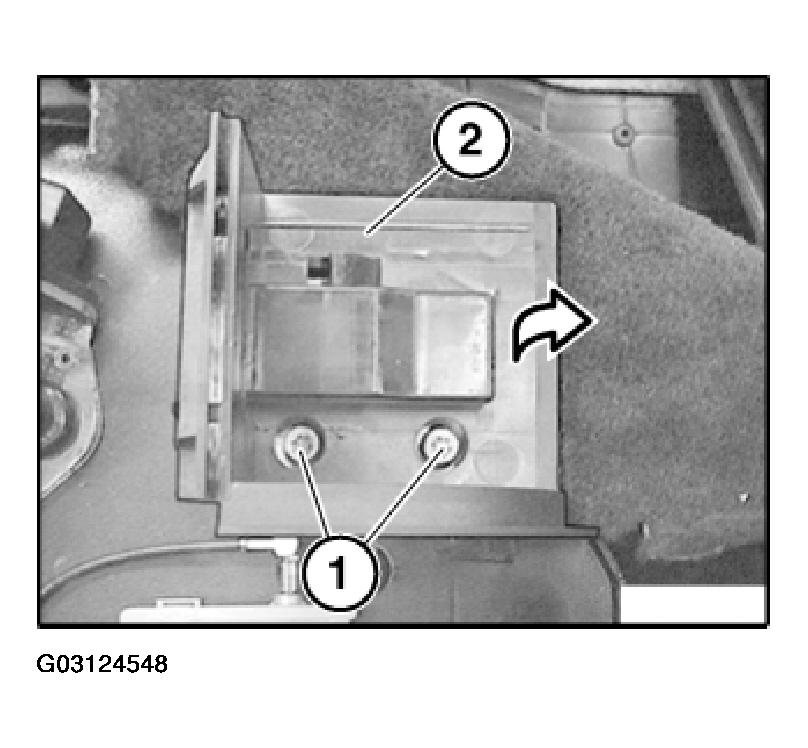

Release screws (1) and remove mounting (2) for luggage compartment roller cover.
Left side window:
If necessary, disconnect plug connections (1) and (2).
Secure connector and cable to side window with adhesive tape (danger of damage).
Installation:
Lay cable into opening.
CAUTION:
When reusing the side window:
If necessary, tape off all antenna wires on side window with fabric adhesive tape (3) (risk of damage).
If necessary, tape off all antenna wires on side window with fabric adhesive tape (3) (risk of damage).
Due to different position of adhesive bead:
Adjust starting roller of blade in areas (A) and (B) differently (risk of damage).
A scalpel is used for area (C).
