51 37 261 Removing and installing / replacing inner window cavity cover strip for rear left or right side window (touring)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim for rear roof pillar (D-pillar), refer to REMOVING AND INSTALLING / REPLACING TRIM PANEL FOR REAR LEFT OR RIGHT ROOF PILLAR (D-PILLAR) (TOURING) .

Remove cover for belt reel, refer to REMOVING AND INSTALLING/REPLACING COVER AND PARCEL SHELF IN TRUNK (TOURING)

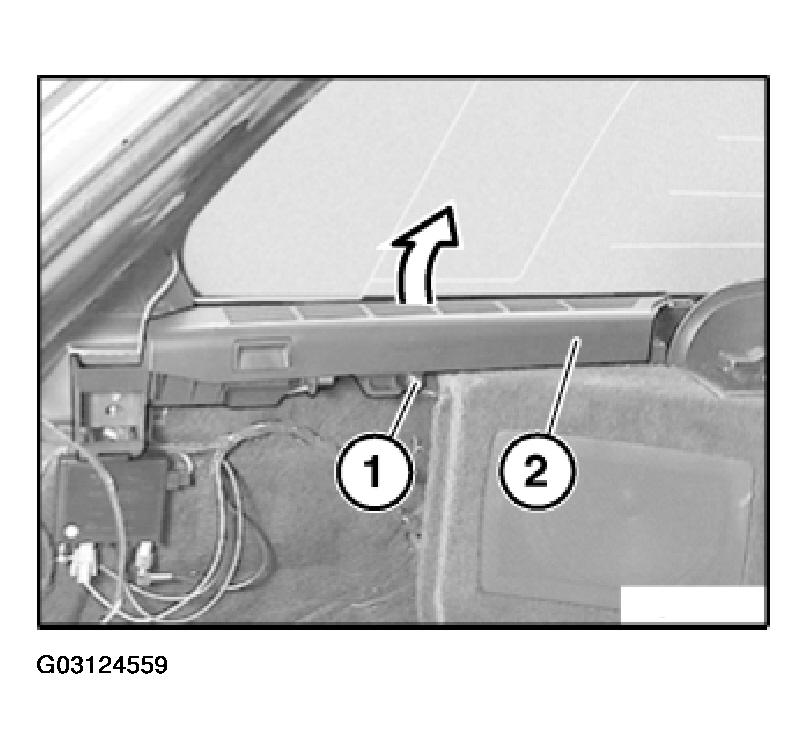

Fig 1: Removing Window Cavity Finisher Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken screw (1), do not release.

Remove window cavity finisher strip (2) towards top.

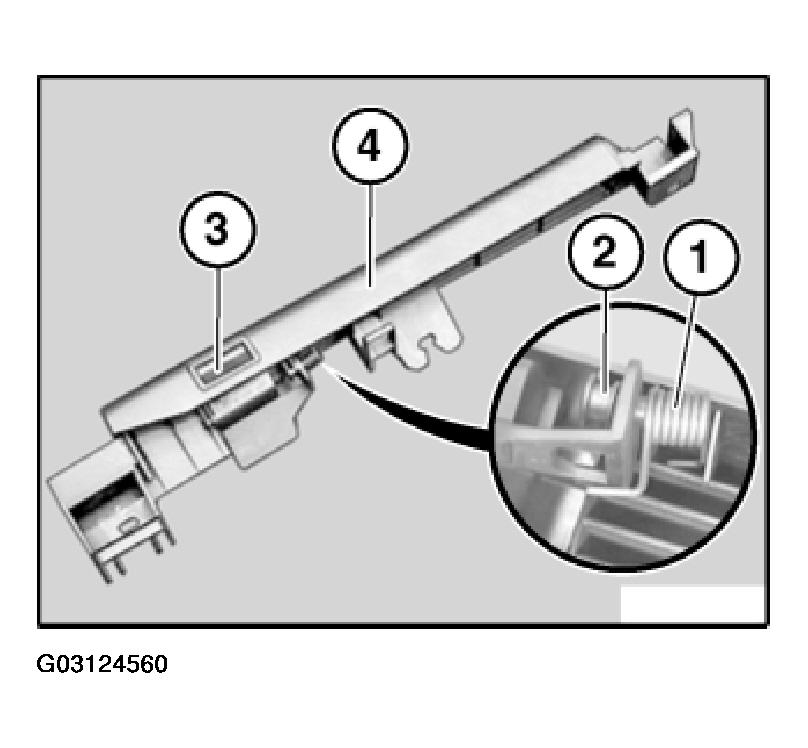

Fig 2: Installing Window Cavity Finisher Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Spring (1) must be correctly seated on mount (2).

Check button (3) of window cavity finisher strip (4) for correct operation.
