51 36 030 Removing and installing / replacing finisher on left or right C-pillar (outside on rear side window) (touring)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Install strip on side window at bottom rear, refer to REMOVING AND INSTALLING / REPLACING STRIP ON REAR SIDE WINDOW AT BOTTOM LEFT OR RIGHT (TOURING) .

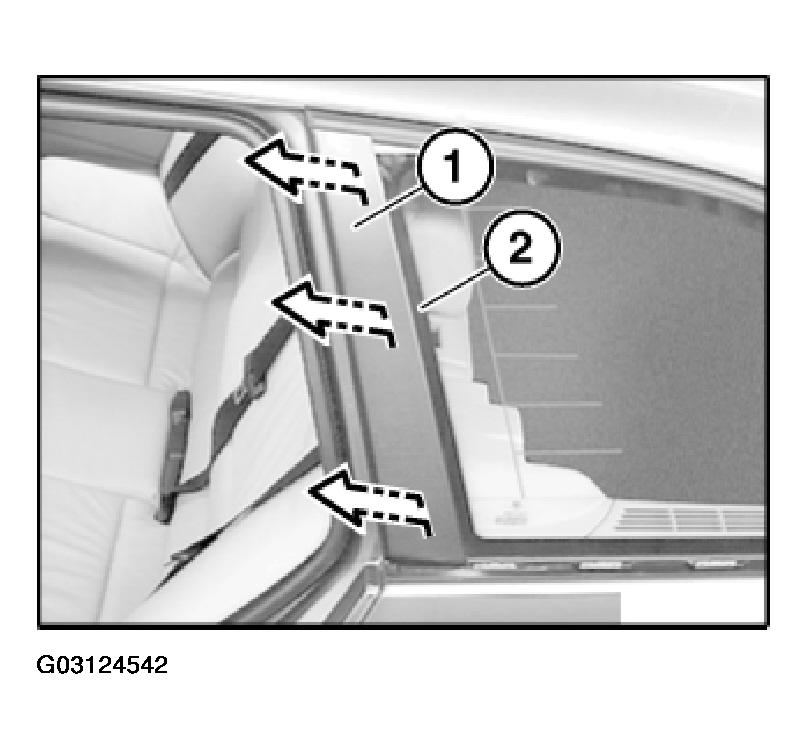

Fig 1: Detaching Finisher From Top To Bottom From Side Window

Courtesy of BMW OF NORTH AMERICA, INC.

Raise finisher (1) at rear approx. 2 mm and detach in stages by approx. 2 mm from top to bottom from side window (2).

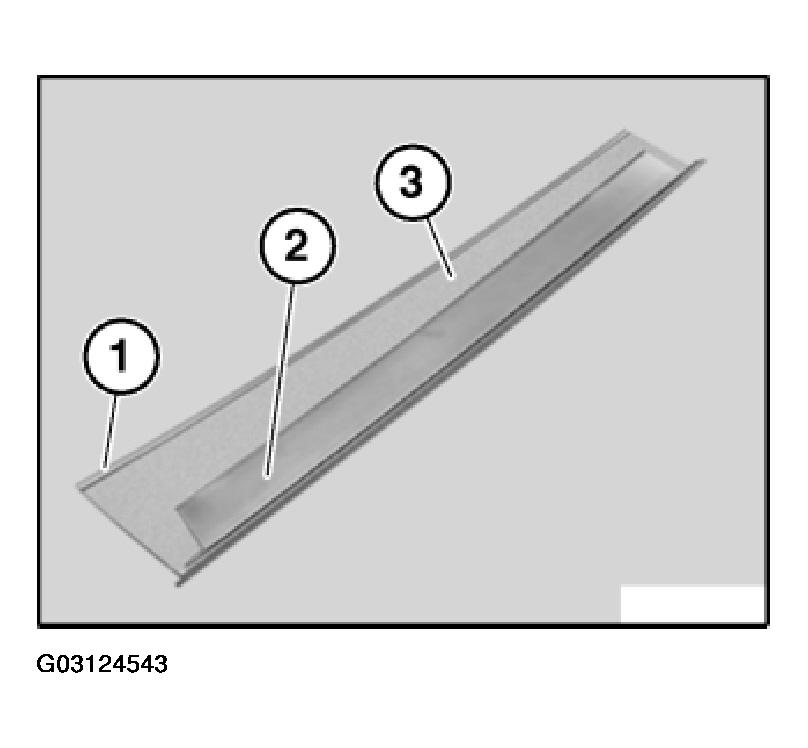

Fig 2: Identifying Fold & Retaining Lug Of Finisher

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fold (1) and retaining lug (2) of finisher (3) must not be bent up.
