51 36 040 Removing and installing / replacing strip on rear side window at bottom left or right (touring)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

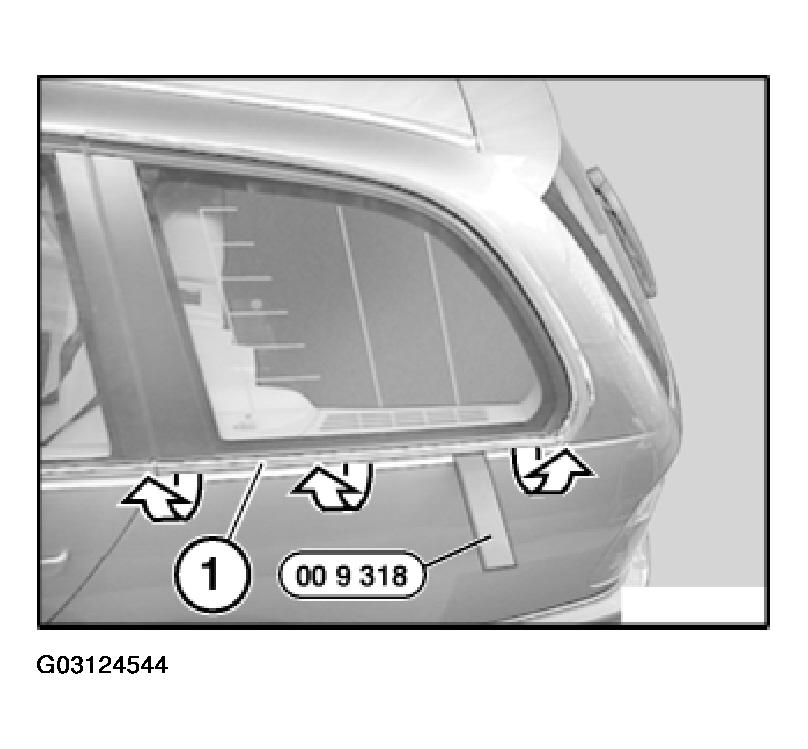

Fig 1: Removing Chrome Strip Outward/Upward With Special Tool 00 9 318

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully lift out chrome strip (1) outward/upward with special tool 00 9 318.

Installation:

If necessary, force all clips out of chrome strip (1).

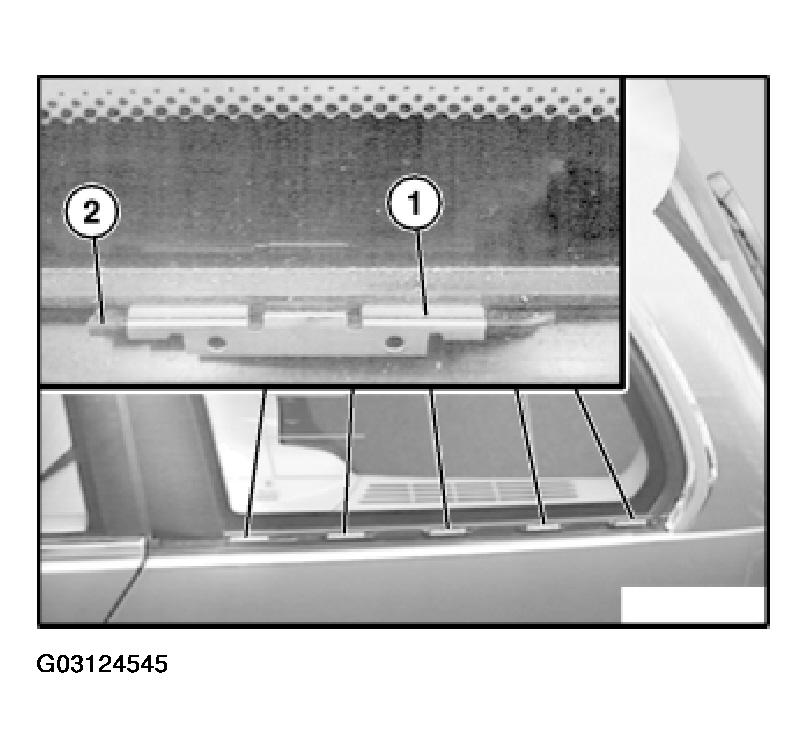

Fig 2: Installing Clips Onto Brackets

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Push new clips (1) onto brackets (2).
