51 31 200 Removing and installing rear window (touring): Notes

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear spoiler, refer to REMOVING AND INSTALLING REAR SPOILER (TOURING) .

Disconnect plug connection (1).

Fig 1: Disconnecting Plug Connection

G03124493

Courtesy of BMW OF NORTH AMERICA, INC.

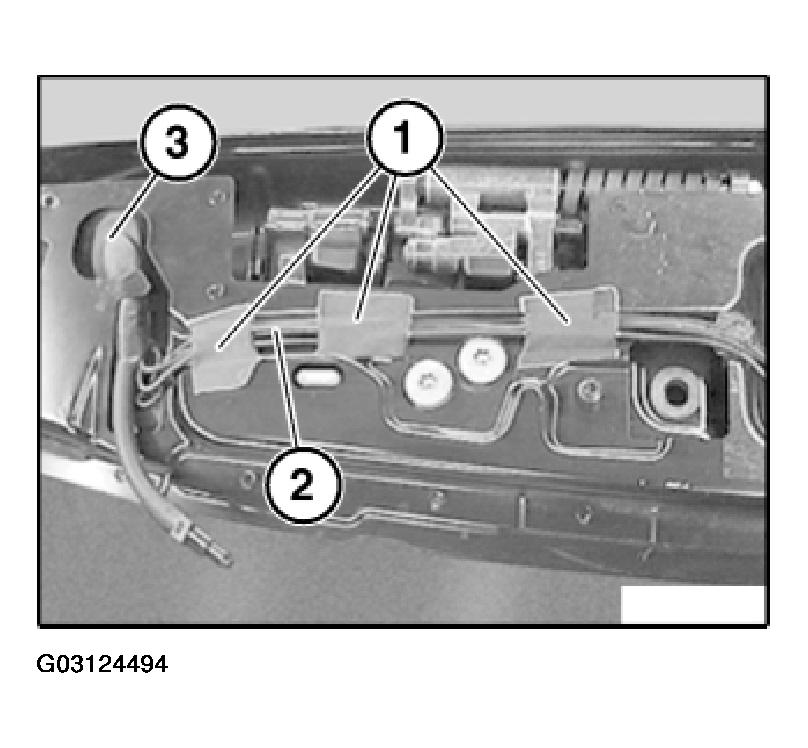

Detach adhesive tapes (1) and expose leads (2).

Fig 2: Detaching Adhesive Tapes & Exposing Leads (1 Of 2)

G03124494

Courtesy of BMW OF NORTH AMERICA, INC.

Detach adhesive tapes (1) and expose leads (2).

Fig 3: Detaching Adhesive Tapes & Exposing Leads (2 Of 2)

G03124495

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out rubber grommet (1) on left/right. Release nut (2) on left/right and detach cable (3).

Fig 4: Detaching Cable

G03124496

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: This work step must be carried out with a second person assisting.

Loosen left/right screws (1).

If spacers are fitted, remove them and make a note of number.

Release screws (1) on left/right and remove rear window (2).

Place rear window (2) on a clean surface.

CAUTION: The rear window (with frame) must not be pulled or lifted by its plugs, wires or foil conductor (risk of damage).

Fig 5: Removing Rear Window

G03124497

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace retainer inserts (1).

Replace rubber mounts (2).

Fig 6: Identifying Retainer Inserts & Rubber Mounts

G03124498

Courtesy of BMW OF NORTH AMERICA, INC.

Install rear window (1) and fix in place with screws (2).

Adjustment of rear window. .

Fig 7: Installing Rear Window

G03124499

Courtesy of BMW OF NORTH AMERICA, INC.
