51 47... Removing and installing/replacing cover for left or right belt reel (Touring)
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.
Removing roller cover from luggage compartment, Refer to Owner's handbook.
Remove trim for rear roof pillar (C-pillar), refer to REMOVING AND INSTALLING / REPLACING TRIM PANEL FOR LEFT OR RIGHT REAR ROOF PILLAR (C-PILLAR) (TOURING) .
Remove armrest side section on rear seat backrest (through-loading system), refer to 52 26 008 REMOVING AND INSTALLING / REPLACING SIDE SECTION ON REAR SEAT BACKREST (THROUGH-LOADING SYSTEM) ON LEFT OR RIGHT (TOURING) .
Release screw for seat belt (top belt) at bottom.
Fold rear-seat backrest forwards.

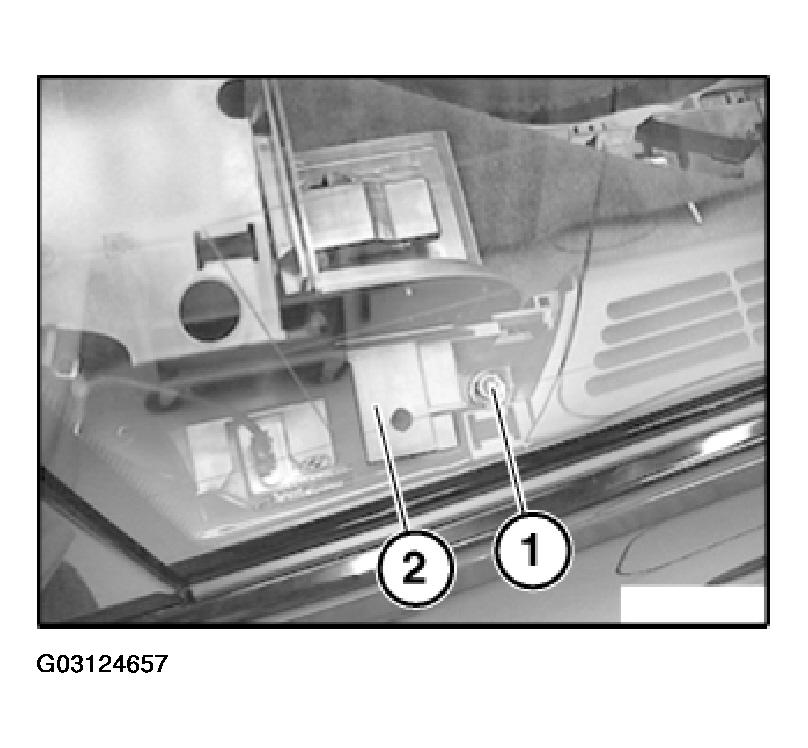

Release nut (1) on cover (2).

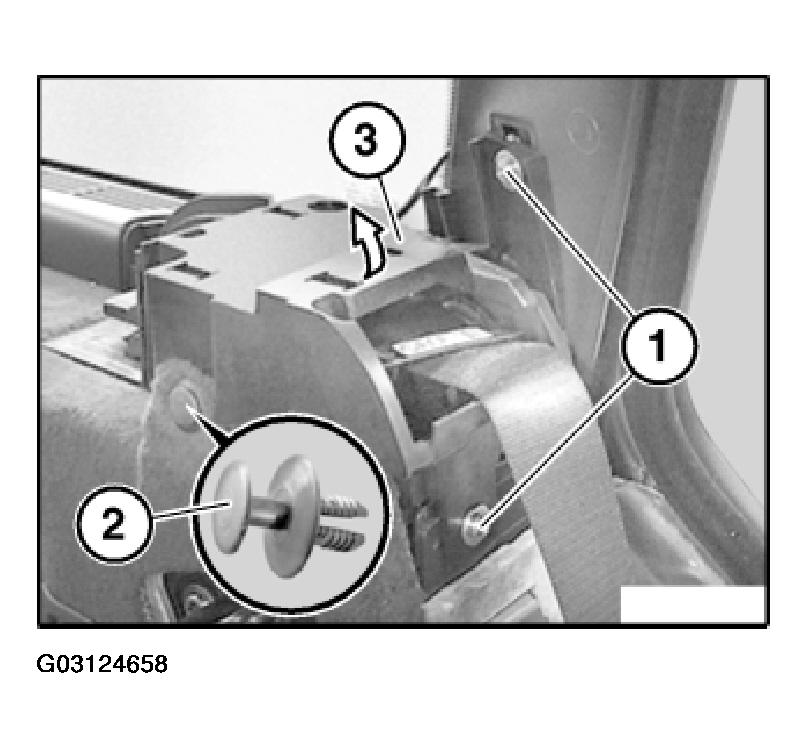

Unfasten bolts (1) and expanding rivet (2).
Lever out cover (3) and feed out belt strap.
