51 43 251 Removing and installing / replacing trim panel for left or right rear roof pillar (C-pillar) (touring)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

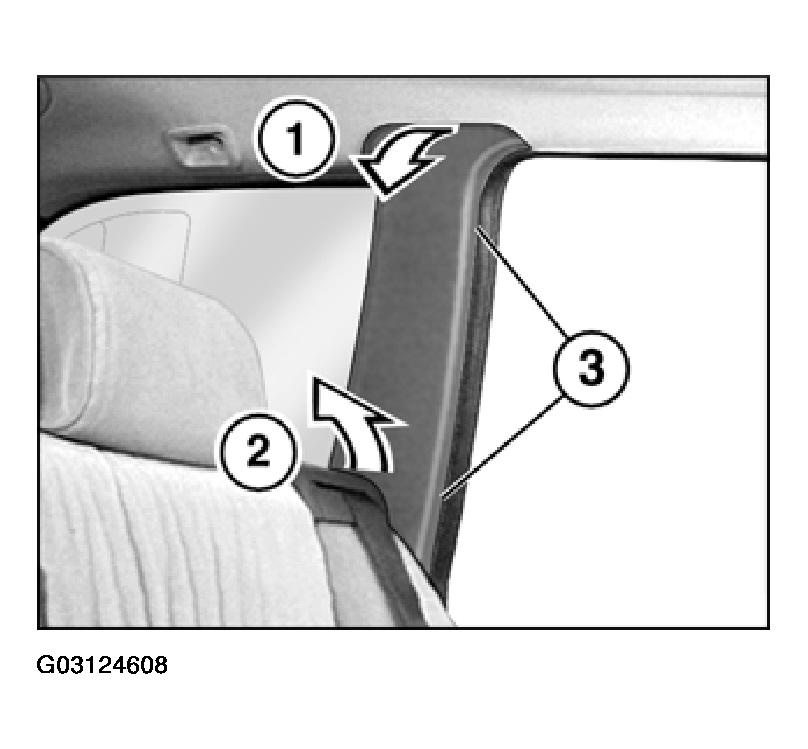

Unclip trim at top (1) and pull out towards top (2).

Installation:

Raise lip of edge protection (3) off over finisher.

Fig 1: Removing Trim Panel For Left Or Right Rear Roof Pillar (C-Pillar) (Touring)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

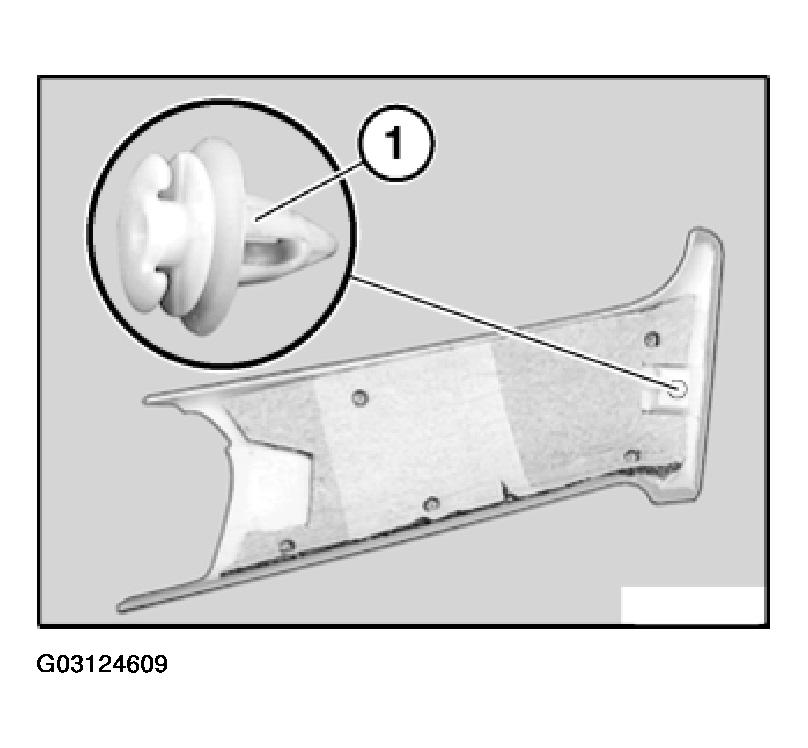

If necessary, replace defective clip (1).

Fig 2: Identifying Clip

Courtesy of BMW OF NORTH AMERICA, INC.
