51 47 172 Removing and installing/replacing flap in trunk trim panel, left or right (Touring)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Left side:

Left side:

Fold flap (2) open and remove.

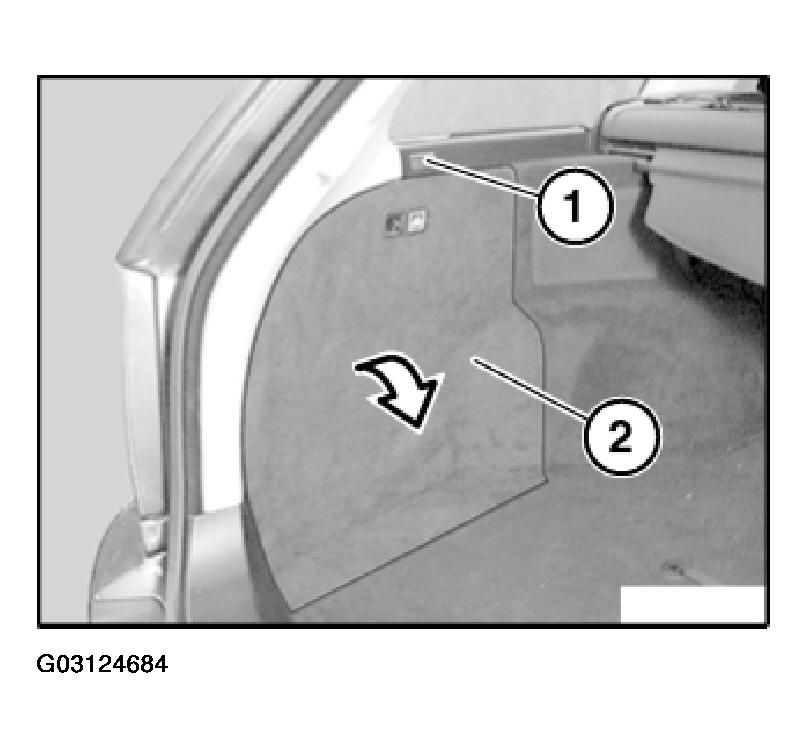

Fig 1: Removing Flap (Left Side)
G03124684Courtesy of BMW OF NORTH AMERICA, INC.

Right side:

Press release button (1).

Fold flap (2) open and remove.

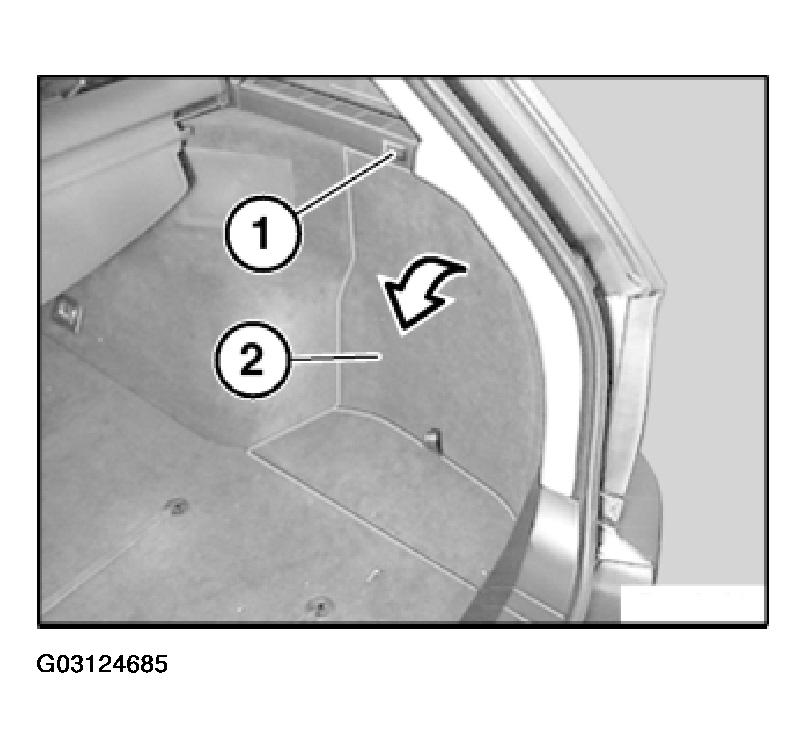

Fig 2: Removing Flap (Right Side)
G03124685Courtesy of BMW OF NORTH AMERICA, INC.

Fold flap (2) open at loop (1) and remove.

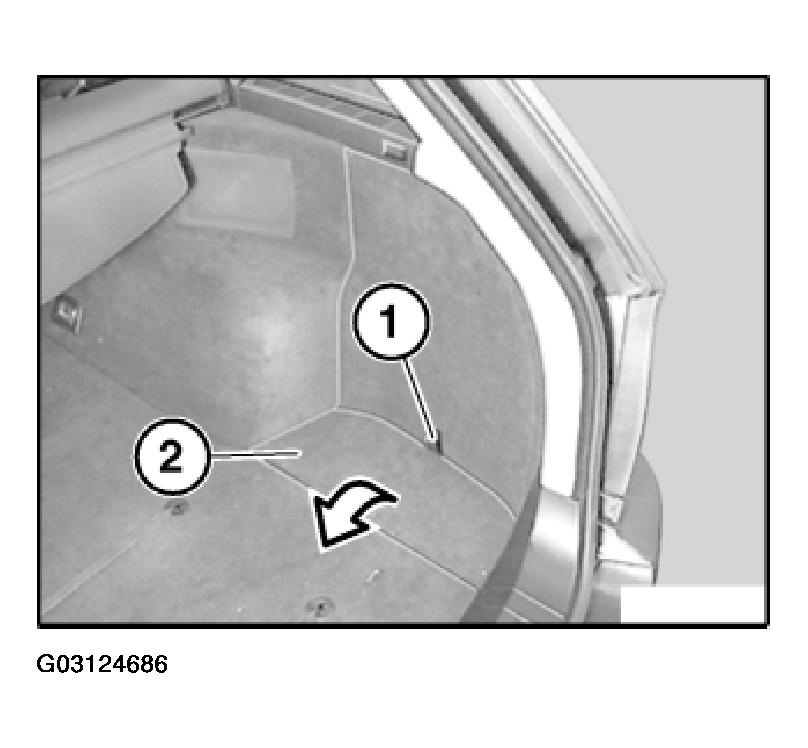

Fig 3: Removing Flap
G03124686Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Release screw (1) and remove loop (2).

Ends of mounts (3) must not be damaged.

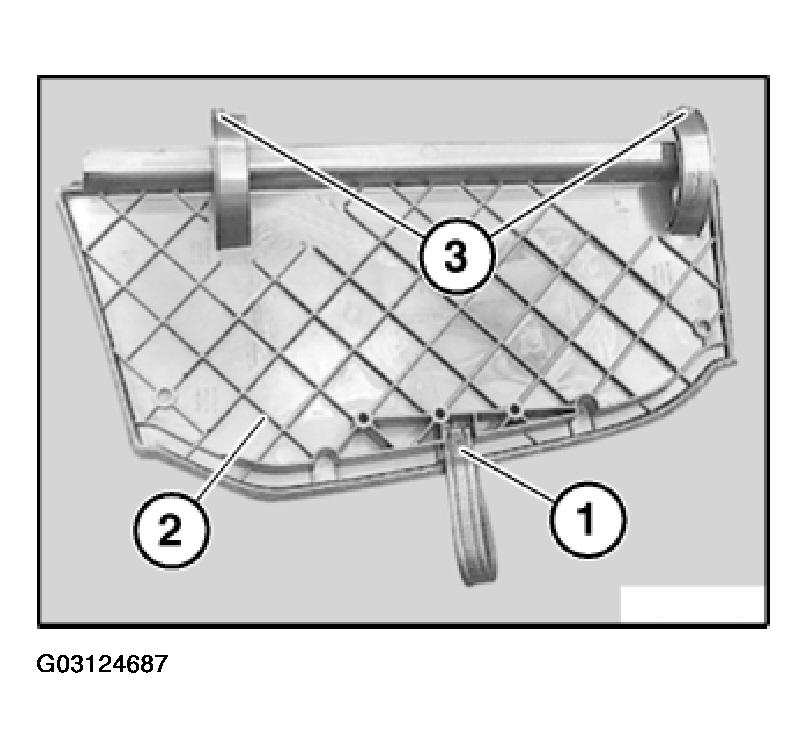

Fig 4: Identifying End Of Mounts & Removing Loop
G03124687Courtesy of BMW OF NORTH AMERICA, INC.
