23 12 055 Replacing Radial Seal For Output Flange (S5D 260Z/ 310Z): Notes
WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 5 010
- 23 0 020
- 23 2 300
- 23 2 320
- 33 1 150
NOTE:
After completion of work, check transmission oil level. Refer to 00 11 229 OIL CHANGE IN MANUAL TRANSMISSION
.
CAUTION:
Use only the approved gear oil in this manual transmission. Failure to comply with this requirement will result in serious damage to the transmission.
Unflange propeller shaft from transmission and tie up to one side. Refer to PROPELLER SHAFT ASSEMBLY .

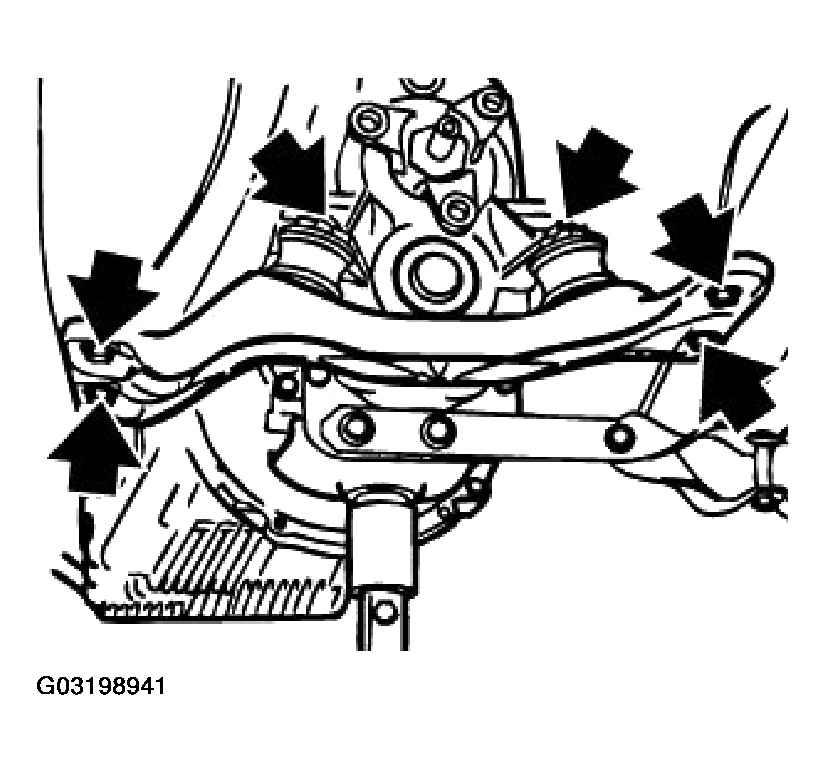

Support transmission with a workshop hoist. Unfasten screws and remove cross member.
