00 11 229 Oil change in manual transmission

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Gearbox must be at normal operating temperature.

Gear oil:

Filling capacities:

Refer to appropriate TECHNICAL DATA.

Draining gear oil:

Release oil drain plug (1) and filler plug (2).

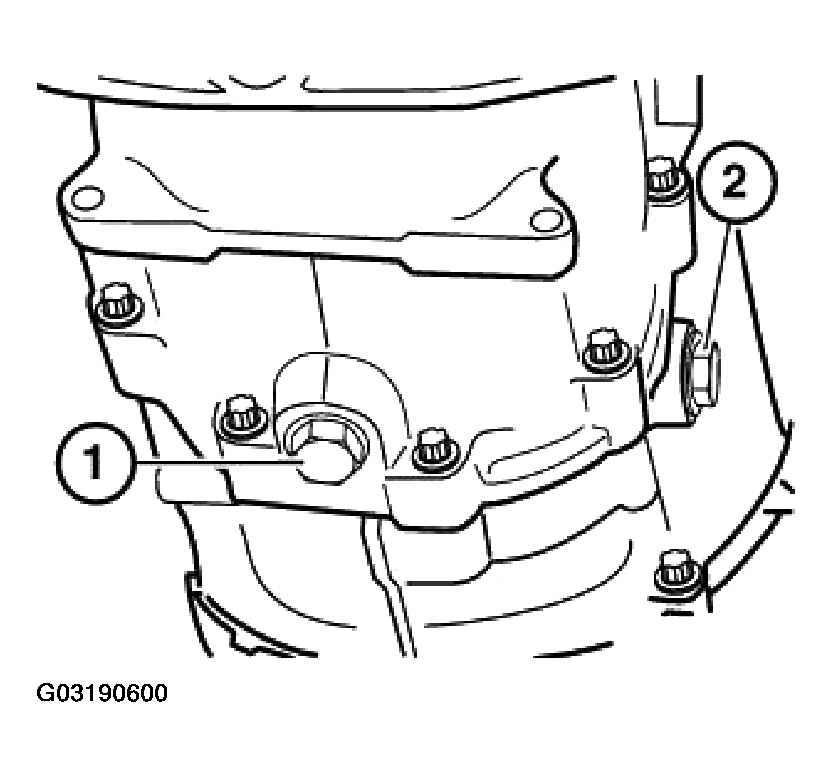

Fig 1: Identifying Plugs
Courtesy of BMW OF NORTH AMERICA, INC.
Clean oil drain plug (1) and screw in.

Tightening torque, 23 00 4AZ. Refer to 23 00 TRANSMISSION IN GENERAL .

Fill transmission with gear oil.

Pour in gear oil until overflowing.
Screw in filler plug (2).
Tightening torque: 23 00 4AZ. Refer to 23 00 TRANSMISSION IN GENERAL .
