Replacing Transmission Switch (A5S 360R / 390R, A4S 200R)
Move selector lever to position "D". Remove transmission oil sump. See REMOVING AND INSTALLING/SEALING OR REPLACING TRANSMISSION FLUID SUMP (A5S 360R / 390R, A4S 200R) .
Remove and install selector unit. See REMOVING AND INSTALLING/REPLACING SELECTOR UNIT (A5S 360R / 390R, A4S 200R) .
Grip clamping sleeve (1). Slacken nut (2). See Fig 1 .

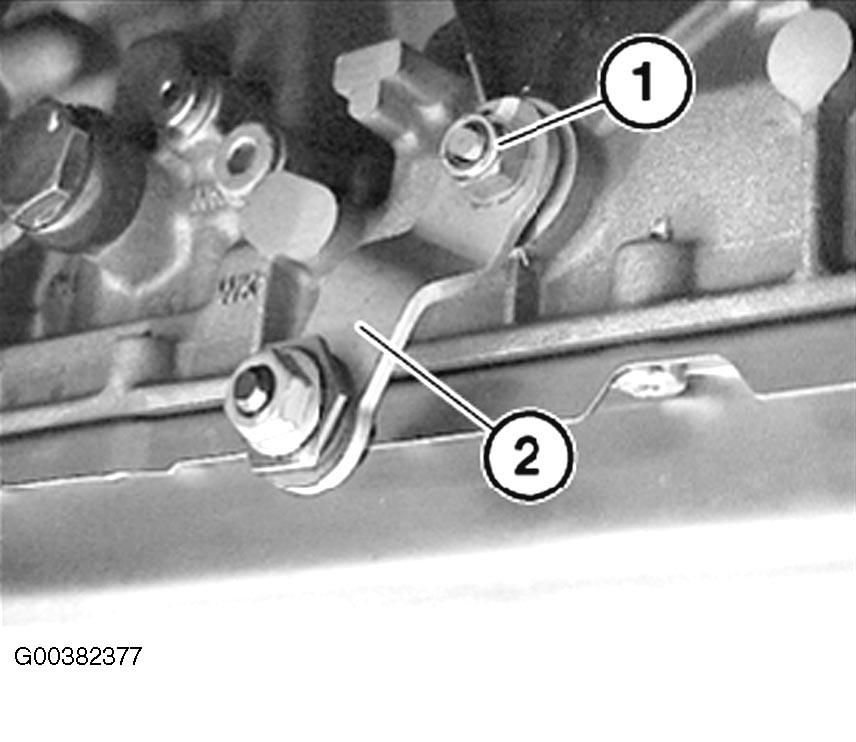

Release nut (1). See Fig 2 . Remove selector lever (2). Upon installation, tighten fasteners to specification. See TORQUE SPECIFICATIONS . Adjust selector lever. See ADJUSTING SELECTOR LEVER (A5S 360R / 390R, A4S 200R, 6HP26Z/19Z) .

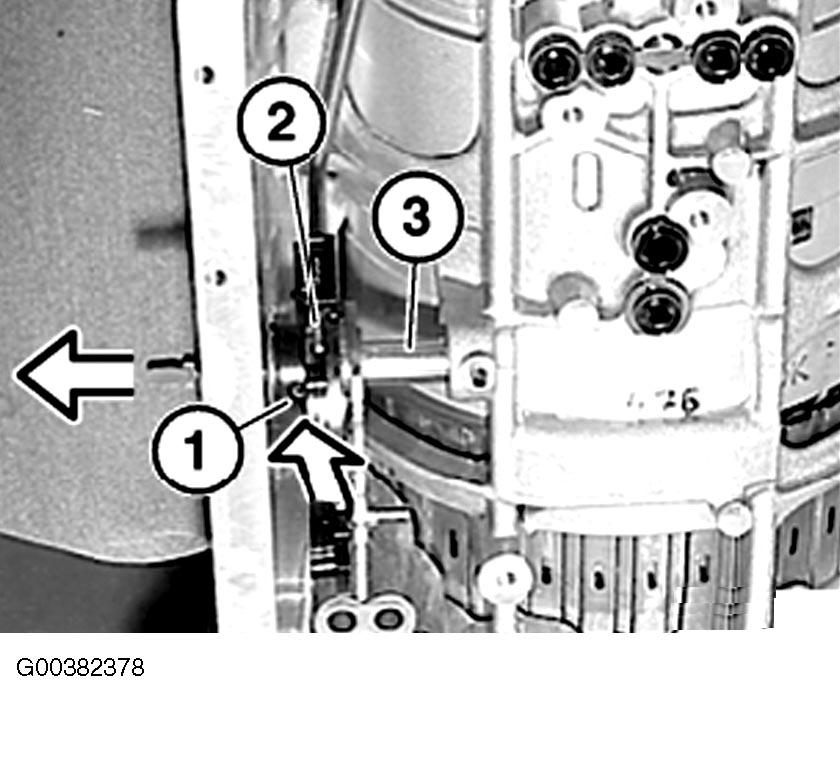

Drive spring pin (1) out of transmission switch (2). See Fig 3 . Withdraw manual shift valve shaft (3) from transmission only so far that transmission switch (2) can be removed. DO NOT remove parking gear rack. DO NOT move parking gear rack more than 10 mm; if necessary, secure with pointed pliers. Release notched disk on parking gear rack. Remove transmission switch (2) with detent disk.

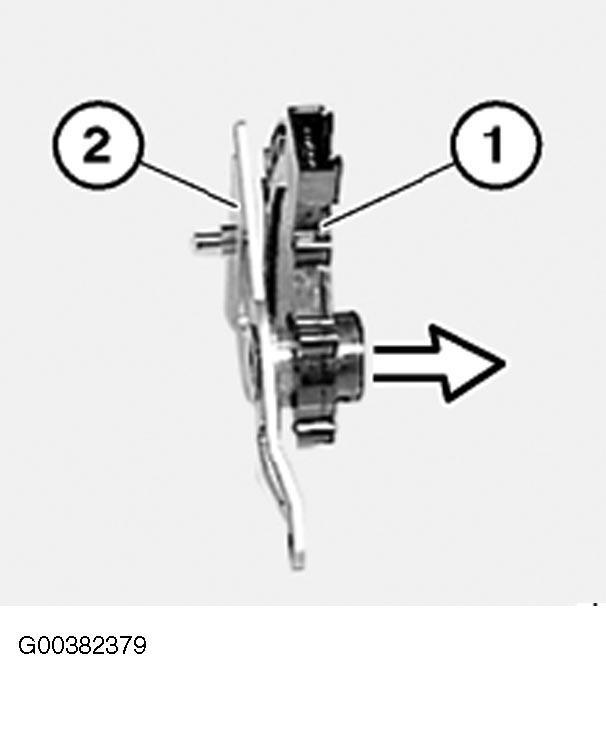

Remove transmission switch (1) from detent disk (2). See Fig 4 . Upon installation: bore holes for spring pin in transmission switch (1) must overlap with bore holes of detent disk (2) and manual shift valve shaft.

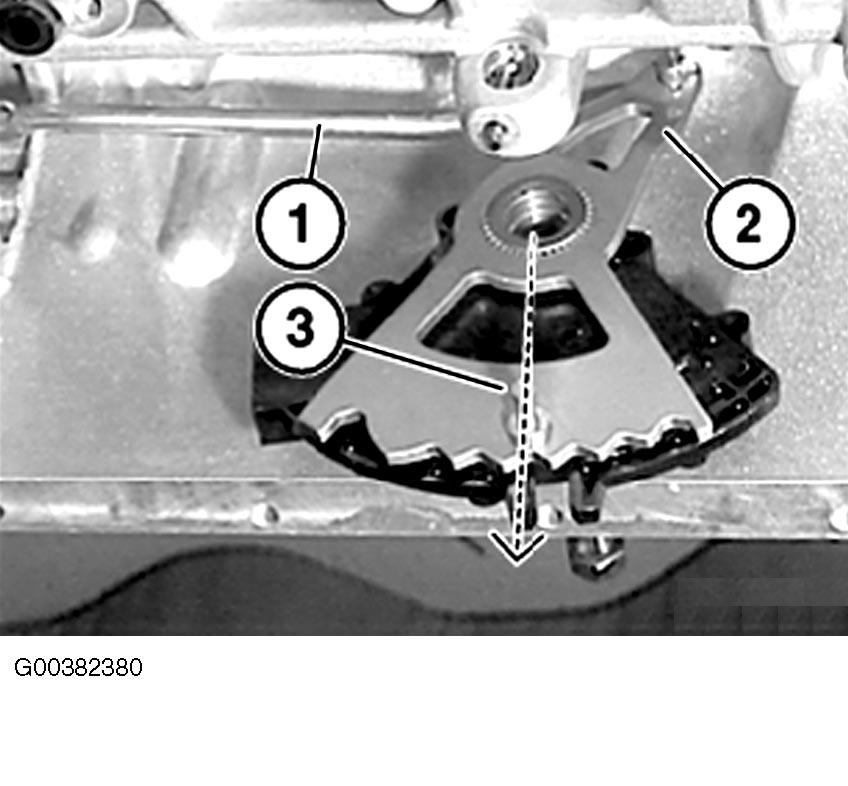

Installation: attach parking gear rack (1) from rear in detent disk (2). See Fig 5 . Slide in manual shift valve shaft. Drive in spring pin. During entire installation work, journal (3) must be aligned vertically to manual shift valve shaft. After installation of detent spring, ensure that parking lock functions correctly. Press journal (3) forwards into "P" position, rotate propeller shaft and check that locking pawl engages.
