Adjusting Selector Lever (A5S 360R/390R, A4S 200R, 6HP26Z/19Z)
WARNING: This page does not describe the selected car, but rather 49 other vehicles, including the 2007 BMW Z4, 2007 BMW X3, 2006 BMW Z4, 2006 BMW X5, and 2006 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Numbers in text refer to numbers in figures.
Check cable for ease of movement. Move selector lever to "P" position.

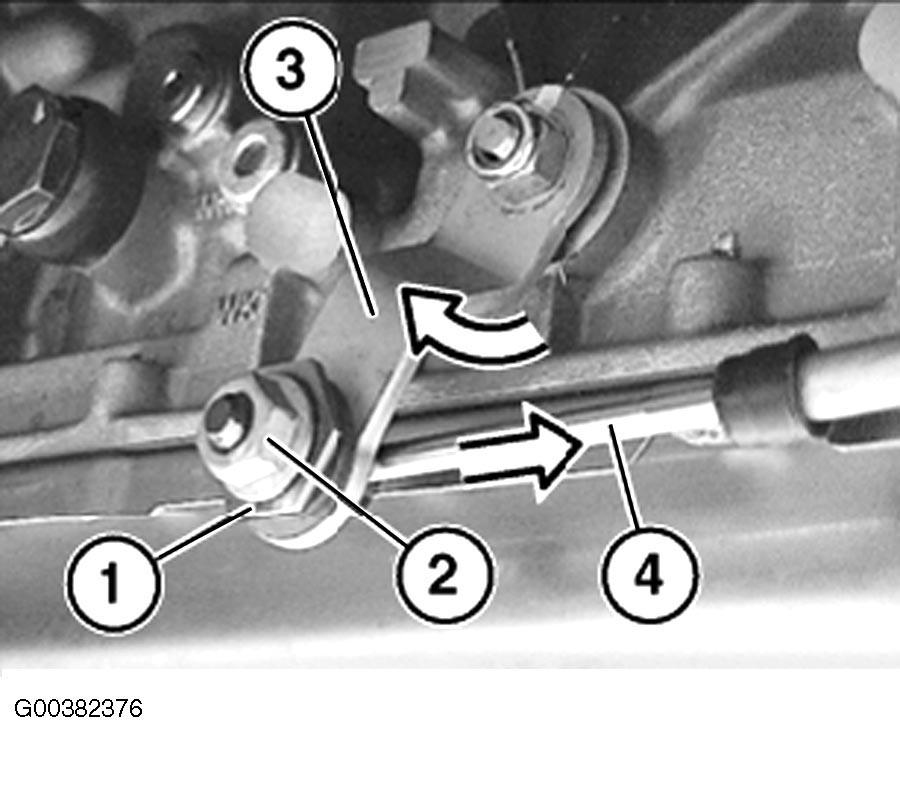

Grip clamping sleeve (1). See Fig 1 . Slacken nut (2). Press selector lever (3) forwards into park position. Press cable (4) in direction of arrow and release again. Grip clamping sleeve (1). Tighten down nut (2) to specification. See TORQUE SPECIFICATIONS .
Installation: move selector lever to "P" position. Check whether parking gear is engaged by turning propeller shaft.
