Replacing Radial Seal For Output Flange (A5S 325Z)

WARNING: This page does not describe the selected car, but rather 49 other vehicles, including the 2007 BMW Z4, 2007 BMW X3, 2006 BMW Z4, 2006 BMW X5, and 2006 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Numbers in text refer to numbers in figures.

Remove transmission extension. See REMOVING & INSTALLING TRANSMISSION EXTENSION (A5S 325Z) .

Clamp Special Tool (24 1 220) in vise. Fit transmission extension to the special tool. See Fig 1 .

Fig 1: Fitting Transmission Extension To Special Tool

G00382305

Courtesy of BMW OF NORTH AMERICA, INC.

Knock back cotter pin in grooved nut. See Fig 2 . Upon installation, peen grooved nut to secure.

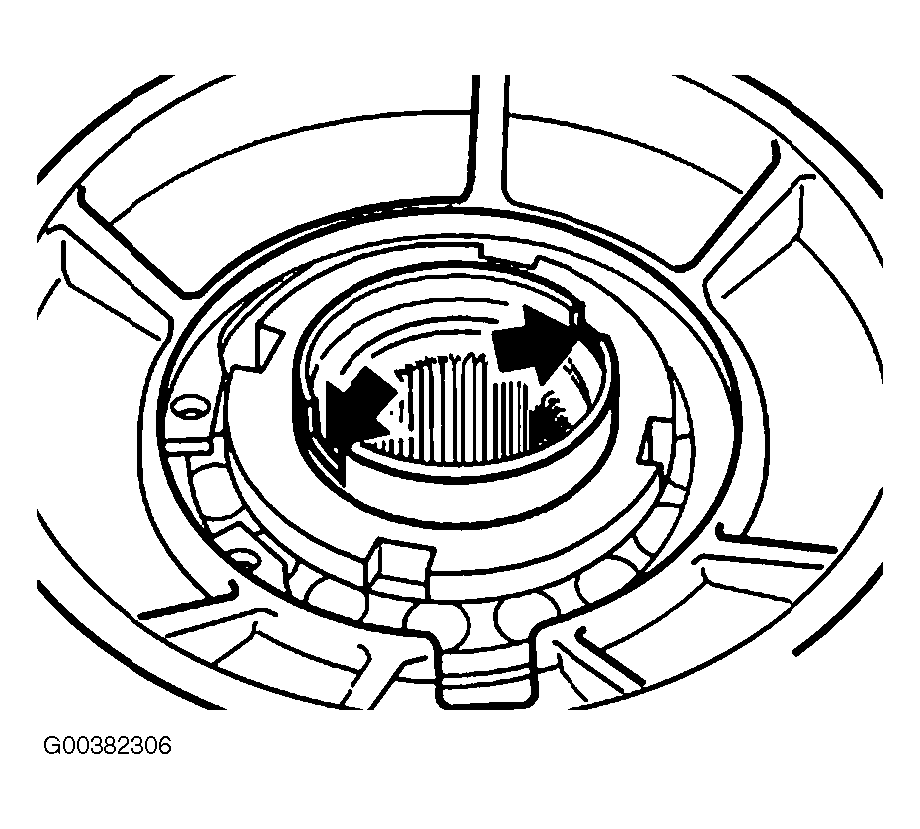

Fig 2: Knocking Back Cotter Pin

G00382306

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten grooved nut (1) with Special Tool (24 1 170). See Fig 3 . Upon installation, tighten to specification. See TORQUE SPECIFICATIONS .

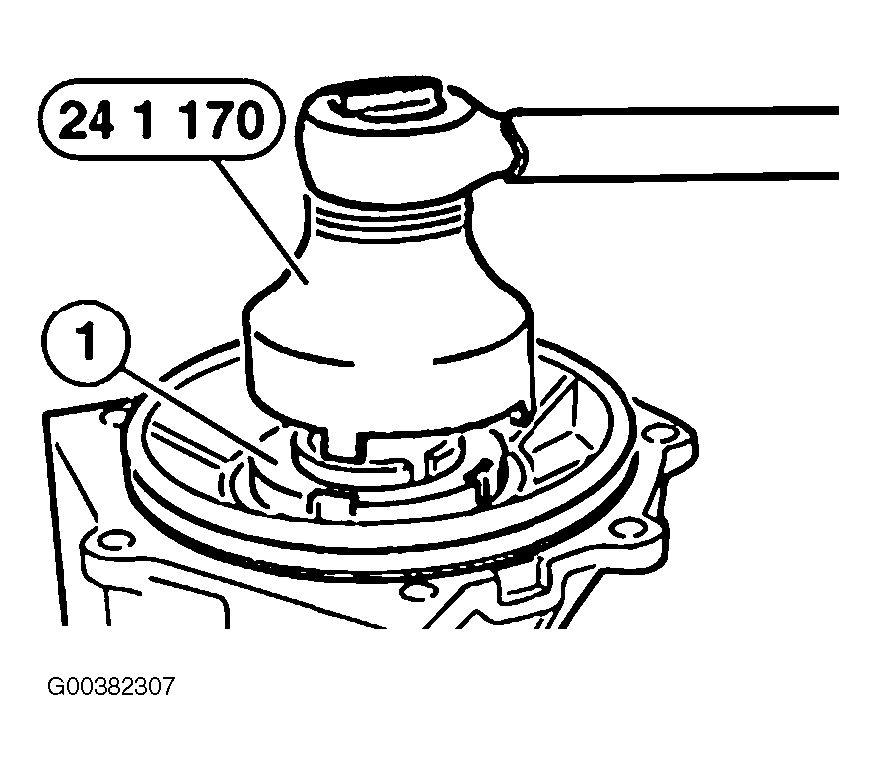

Fig 3: Unfastening Grooved Nut

G00382307

Courtesy of BMW OF NORTH AMERICA, INC.

Remove transmission extension from special tool. Remove output flange from mounting. See Fig 4 . Installation: coat sealing lip of radial seal and sealing surface of output flange with transmission oil.

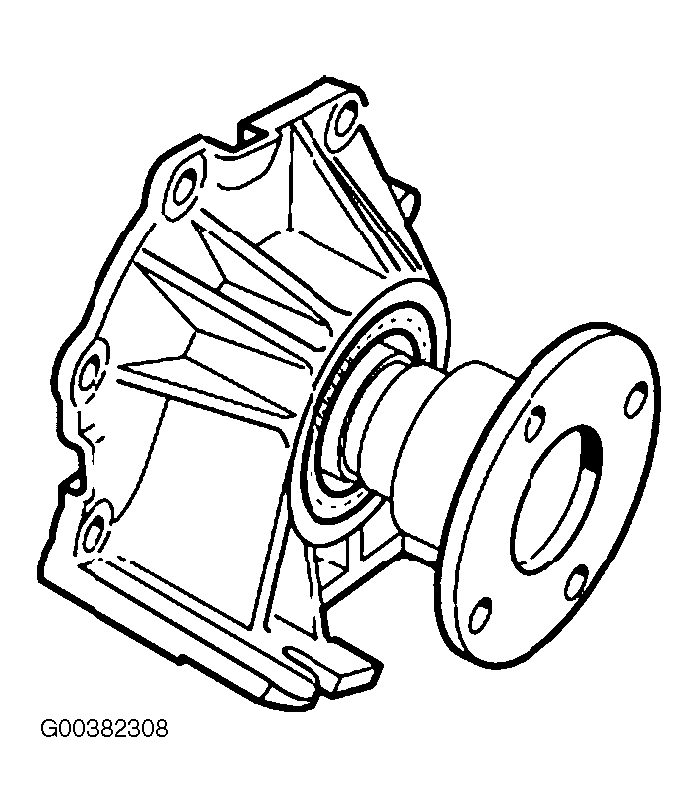

Fig 4: Removing Output Flange From Mounting

G00382308

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out radial seal (1). See Fig 5 .

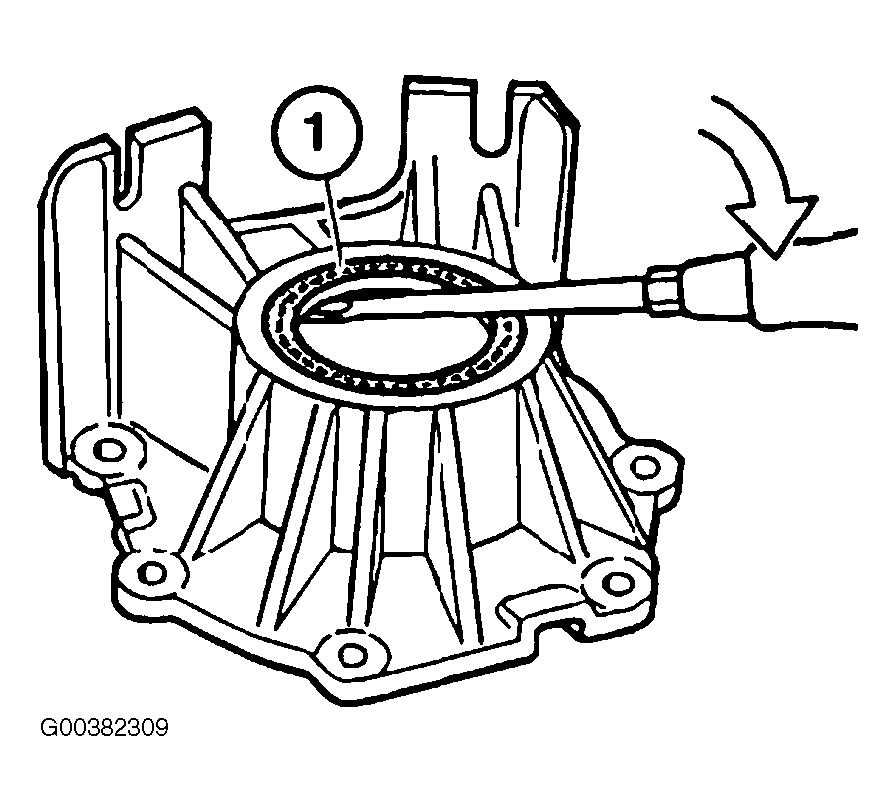

Fig 5: Lifting Out Radial Seal

G00382309

Courtesy of BMW OF NORTH AMERICA, INC.

Installation: drive in new radial seal (1) flush using Special Tool (00 5 500 / 24 1 190). See Fig 6 .

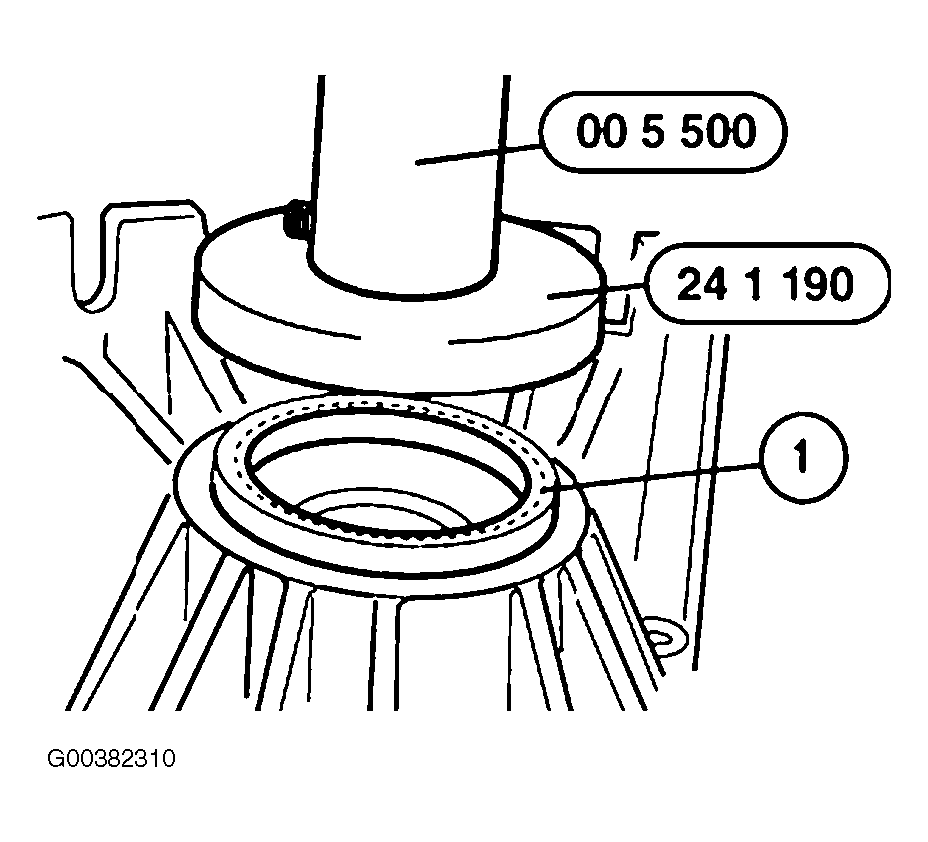

Fig 6: Driving In Radial Seal

G00382310

Courtesy of BMW OF NORTH AMERICA, INC.
