65 13 050 Removing and installing/replacing speaker (treble speaker in quarterlight mirror)
WARNING: This page does not describe the selected car, but rather 32 other vehicles, including the 2006 BMW 330Ci, 2006 BMW 325Ci, 2005 BMW 330xi, 2005 BMW 330i, and 2005 BMW 330Ci. However, it is still accessible from the selected car via links, so may be relevant.
Remove front door trim panel. See 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL
Saloon/Sedan, Touring Only:
Detach cover on door frame in front area.
Compact Only:

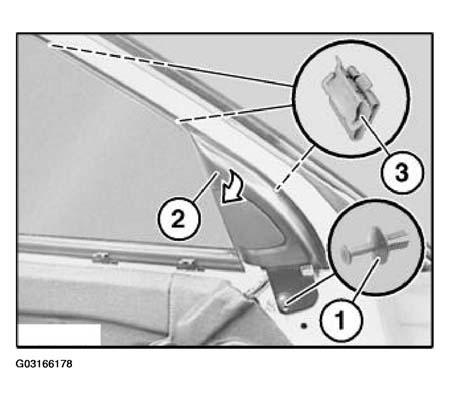

Release expansion rivet (1).
Detach cover on door frame (2) in direction of arrow and lever out of retainers (3) towards rear.
All:
NOTE:
For purposes of clarity, cover on door frame is removed.

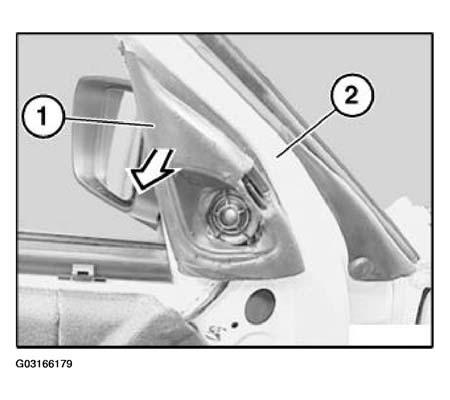

Remove foam wedge (1) in direction of arrow from door frame (2).

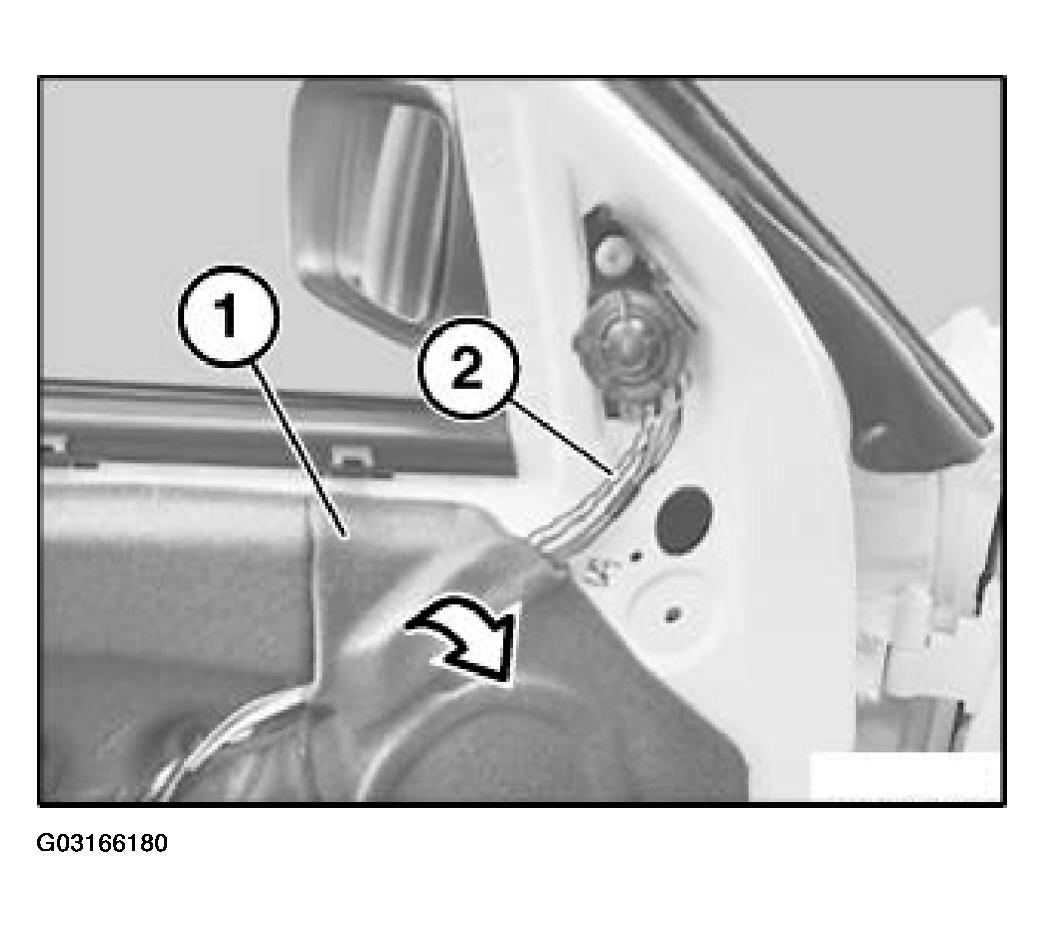

Fold down sound insulation on front door (1) in direction of arrow.
Disconnect plug connection underneath for speaker cable (2).
Installation:
Fit sound insulation on front door.

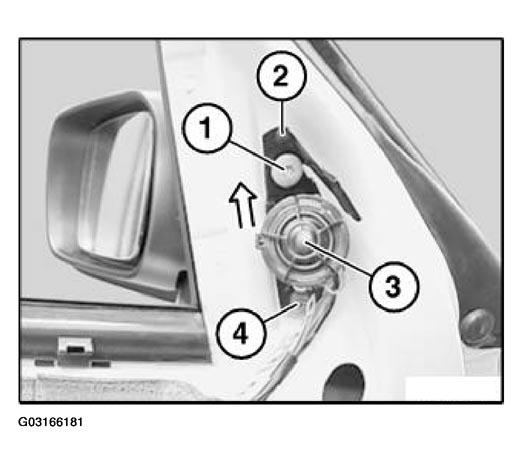

Release screw (1) and remove mounting (2).
Feed speaker (3) in direction of arrow out of screw (4) and remove.
