65 11 055 Removing and installing/replacing radio receiver (radio navigation or on-board monitor)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Remove luggage compartment wheel arch trim on left. Refer to 51 47 151 REMOVING AND INSTALLING/REPLACING TRUNK WHEEL HOUSING TRIM, LEFT .

Unlock plug connections (1) and (2) and disconnect. Release screw (3).

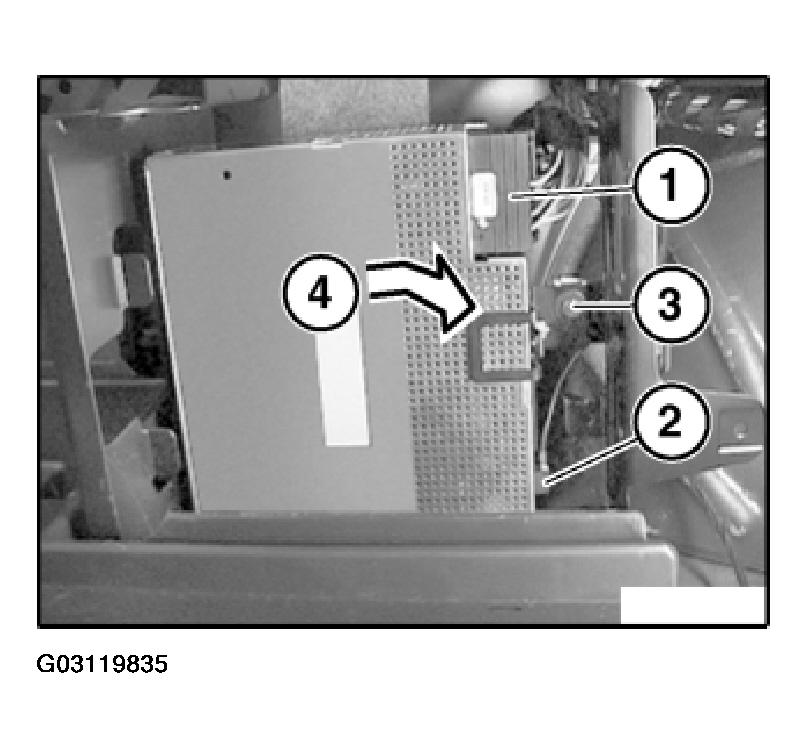

Fig 1: Removing Radio Receiver

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out radio receiver (4) in direction of arrow and remove.

Installation:

Metal tabs (1) of radio receiver (2) must be seated in mountings (3) of holder (4).

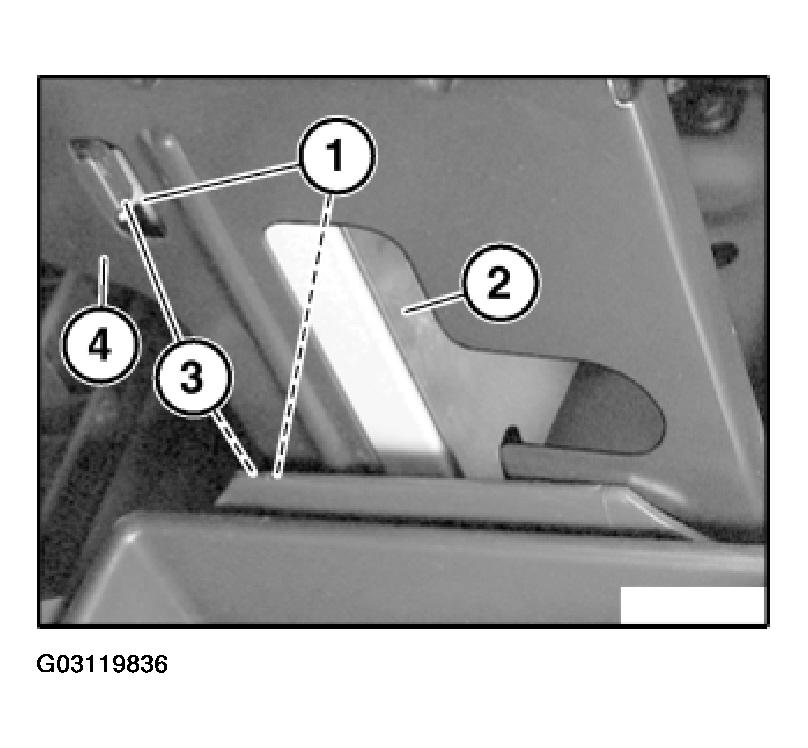

Fig 2: Identifying Metal Tabs Of Radio Receiver

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Unscrew nut (1).

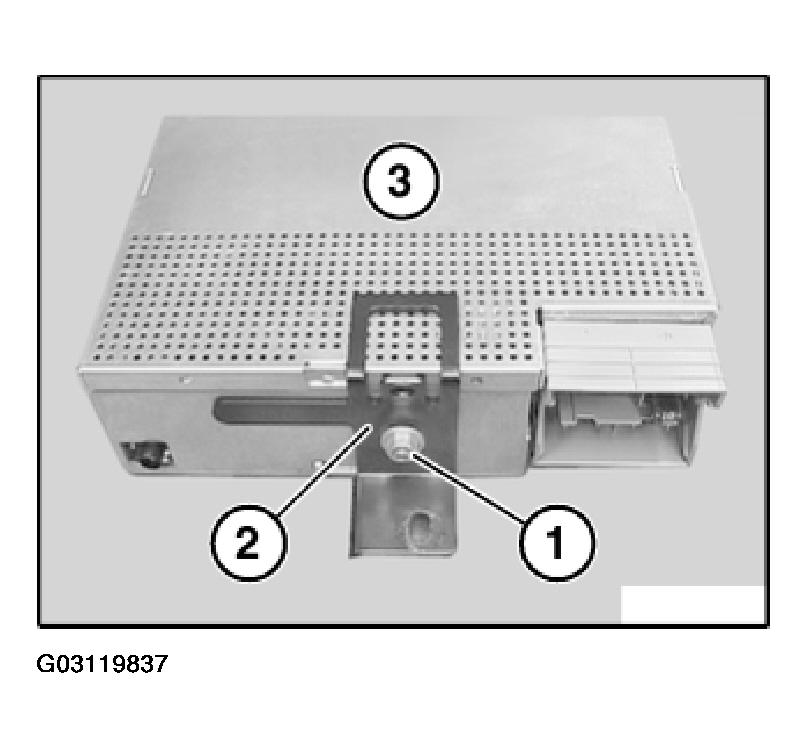

Fig 3: Removing Holder From Radio Receiver

Courtesy of BMW OF NORTH AMERICA, INC.

Remove holder (2) from radio receiver (3).
