64 11 750 Removing and installing heating control (heater)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Remove radio. Refer to 65 11 030 REMOVING AND INSTALLING/REPLACING RADIO RECEIVER (BUILT-IN UNIT) or 65 11 040 REMOVING AND INSTALLING/REPLACING RADIO CONTROL PANEL (RADIO NAVIGATION) .

Press down rotary buttons.

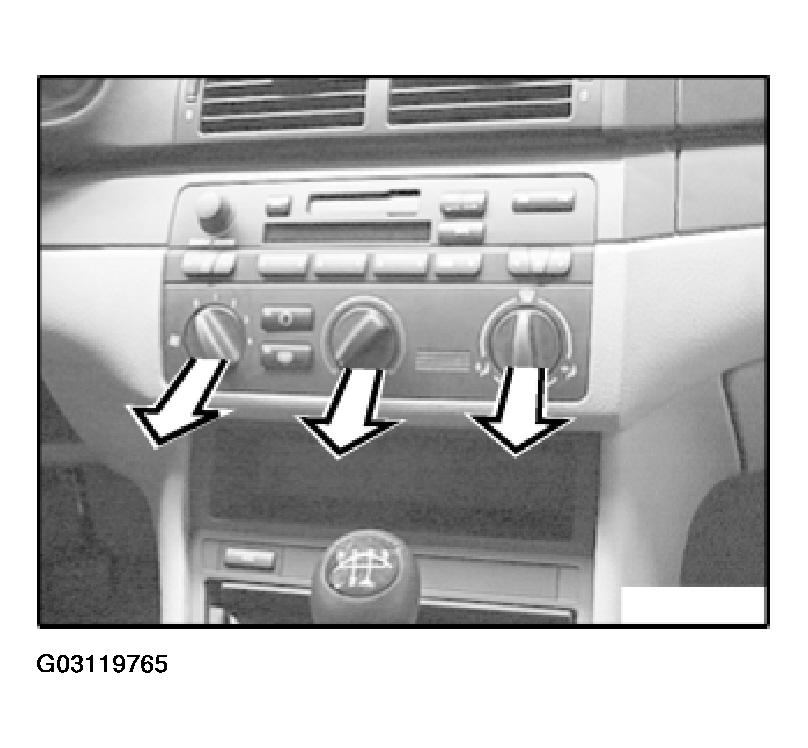

Fig 1: Pressing Down Rotary Buttons

G03119765

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws and remove front panel towards rear.

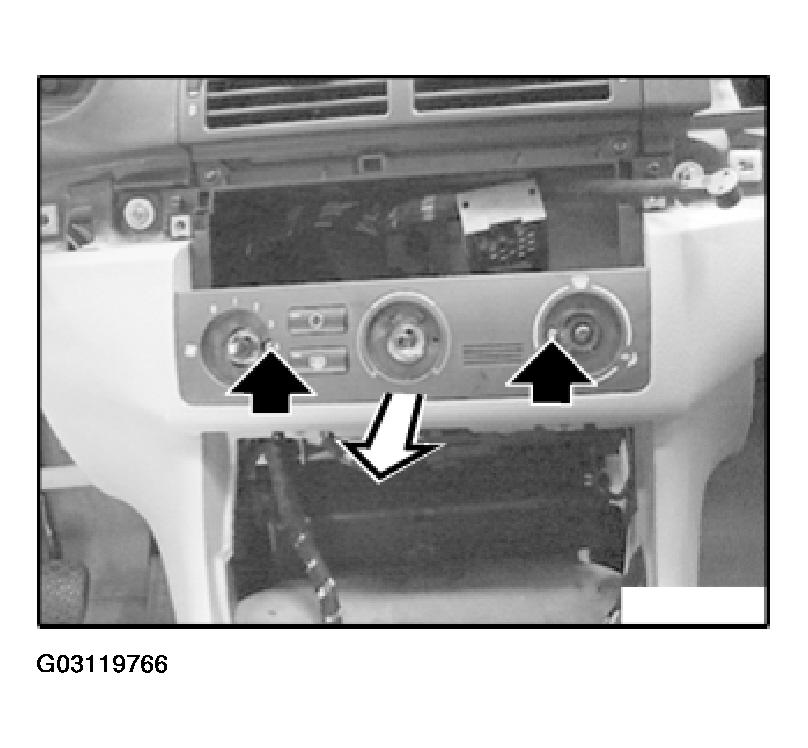

Fig 2: Removing Front Panel

G03119766

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1).

Remove center fresh air grill. Refer to 64 22 161 REMOVING AND INSTALLING/REPLACING CENTER FRESH AIR GRILL (HEATING) .

Unlock retainers (2) and push control panel inwards.

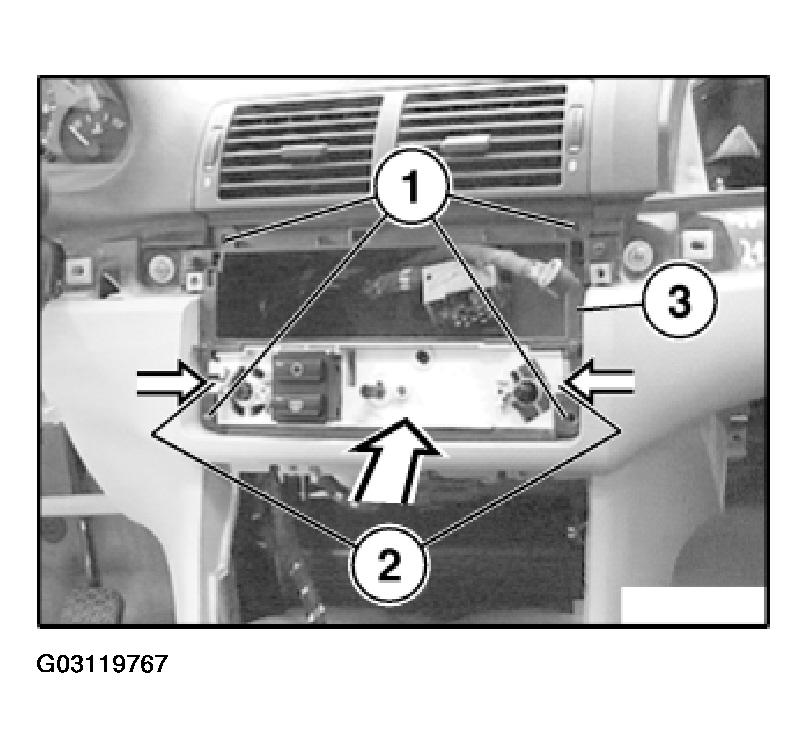

Fig 3: Unlocking Retainers

G03119767

Courtesy of BMW OF NORTH AMERICA, INC.

Remove frame (3).

Unlock retaining clips and withdraw shaft.

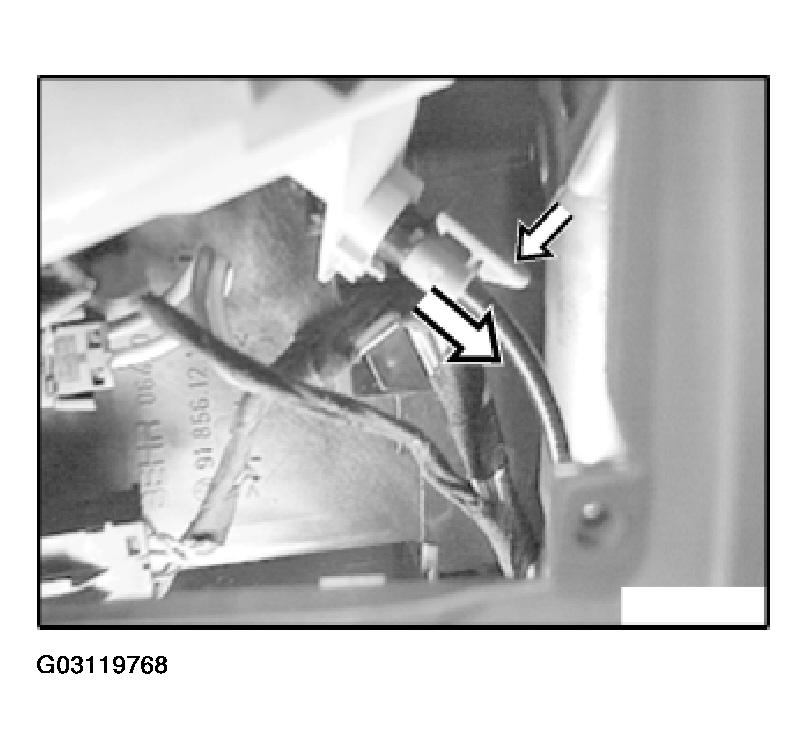

Fig 4: Withdrawing Shaft

G03119768

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock retaining clips and unclip Bowden cable.

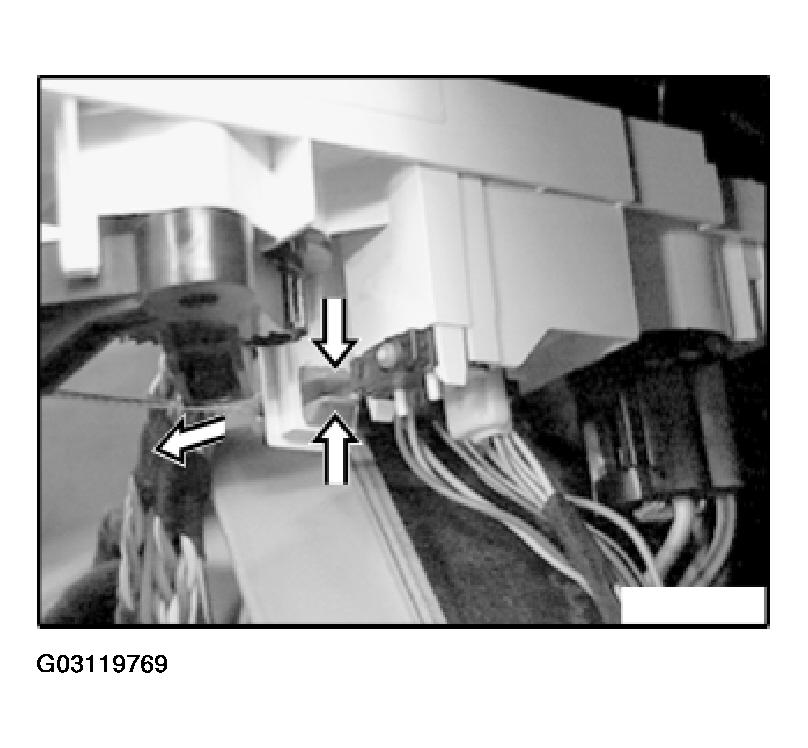

Fig 5: Unlocking Retaining Clips

G03119769

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out Bowden cable.

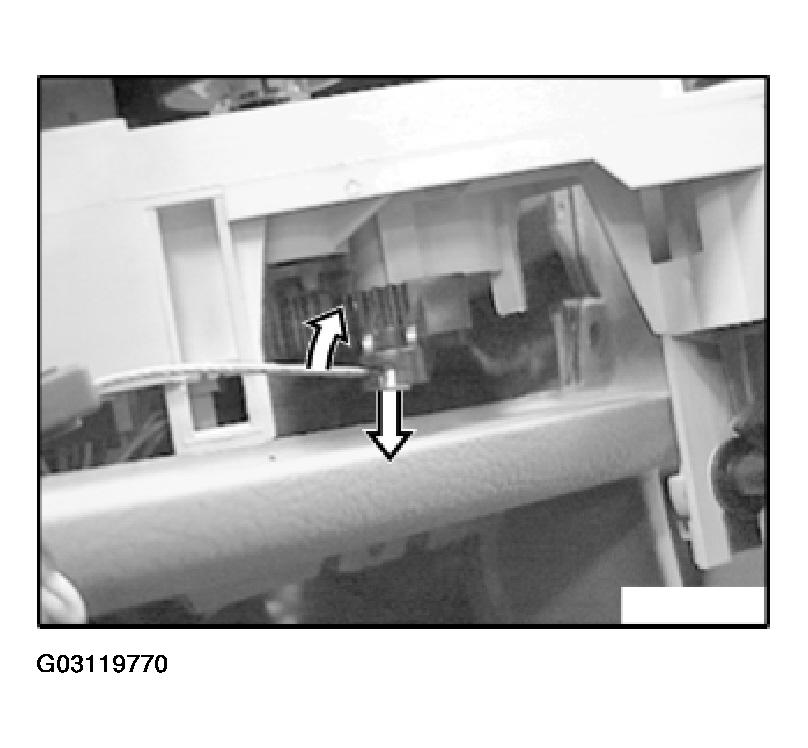

Fig 6: Feeding Out Bowden Cable

G03119770

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Unlock retaining clips and pull out microswitch (2) in direction of arrow.

Remove heater controls.

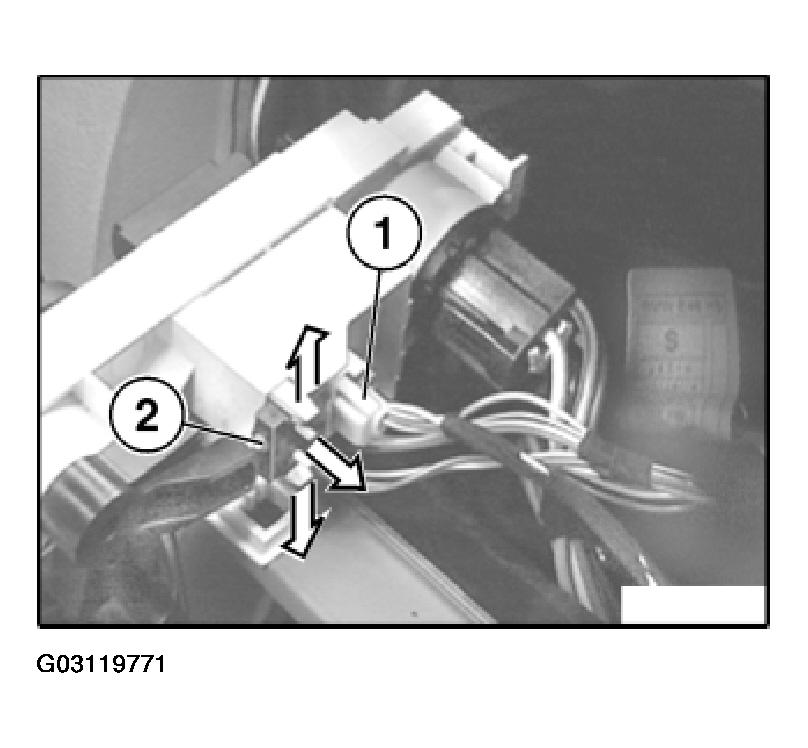

Fig 7: Pulling Out Microswitch

G03119771

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clip in microswitch with button (1) towards top.

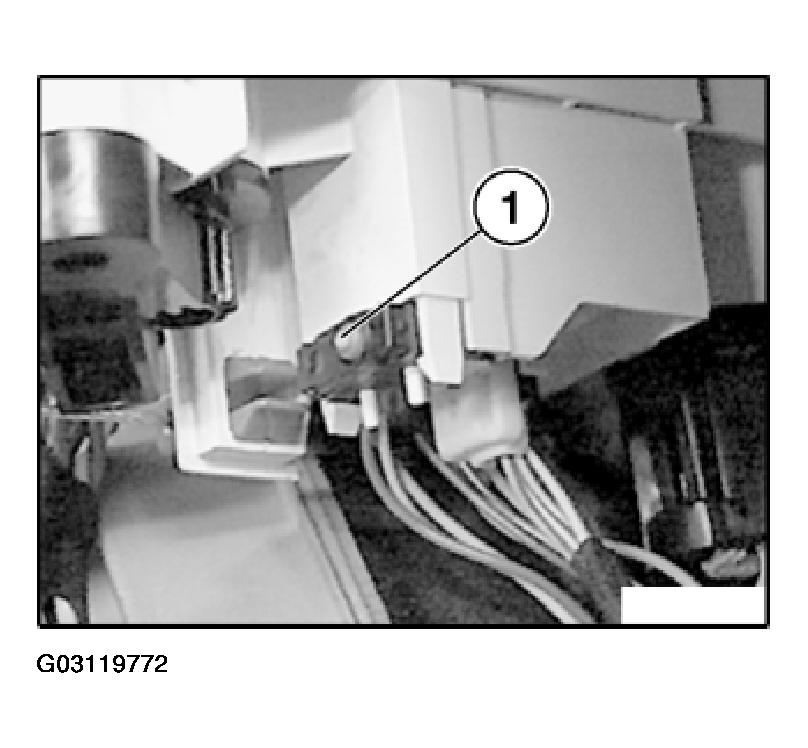

Fig 8: Installing In Microswitch

G03119772

Courtesy of BMW OF NORTH AMERICA, INC.
