65 11 030 Removing and installing/replacing radio receiver (built-in unit)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Remove decorative strip above radio, refer to 51 16 221 REPLACING A CLIPPED-IN TRIM (DECORATIVE STRIP ON PANEL FOR INSTRUMENT PANEL, FRONT OR REAR DOOR) .

Release screws and pull out radio.

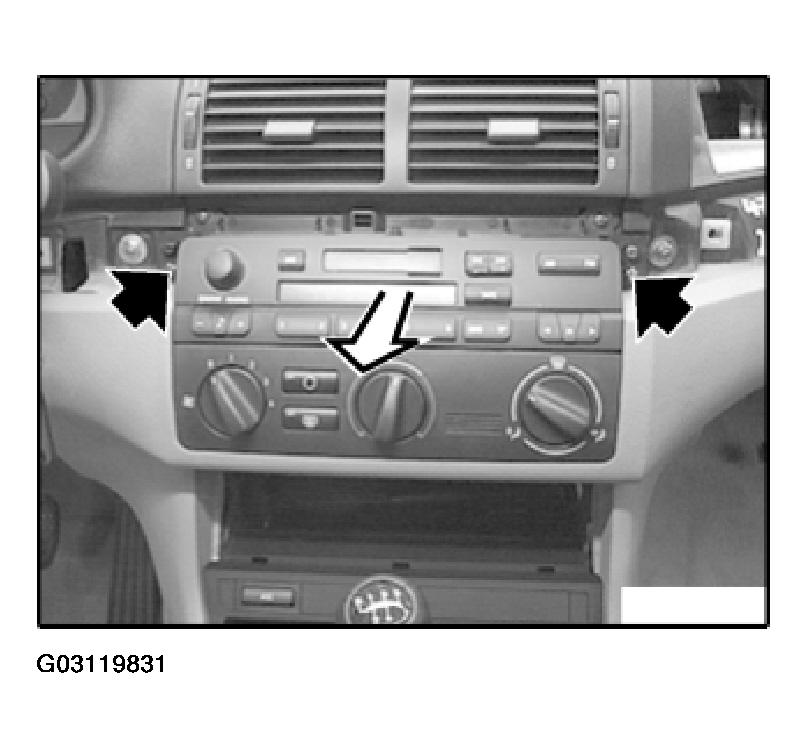

Fig 1: Pulling Out Radio

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection.

Fig 2: Unfastening Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
