51 36 016 Replacing Rear Left Or Right Hinged Window (Coupe)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear hinged window, refer to REMOVING AND INSTALLING REAR LEFT OR RIGHT HINGED WINDOW (COUPE) .

Detach retainer (1) from support (2).

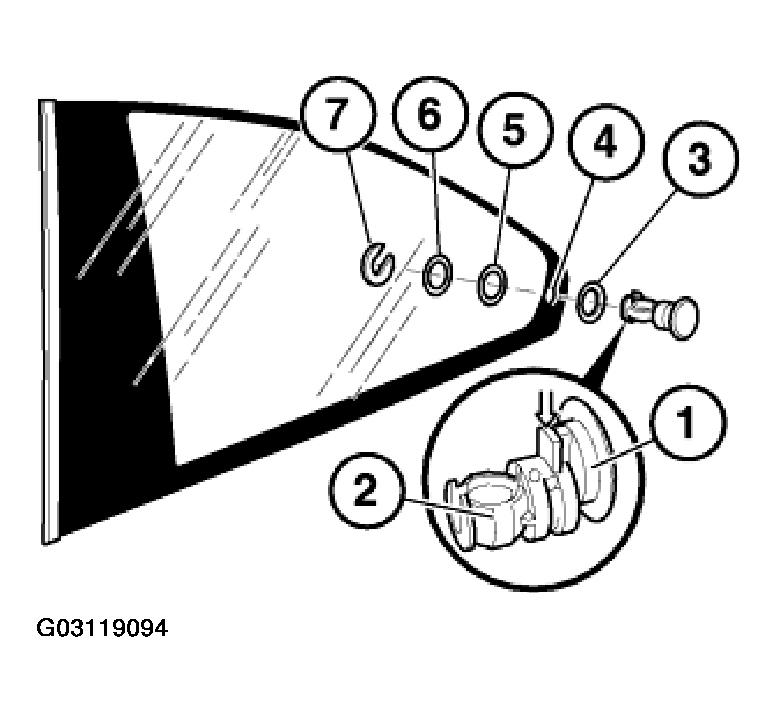

Fig 1: Identifying Retainer In Support

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slide knob (1) into support (2) then assemble the rest.

Knob.
Support.
Shim.
Bore in hinged window.
Washer.
Washer.
Retainer.

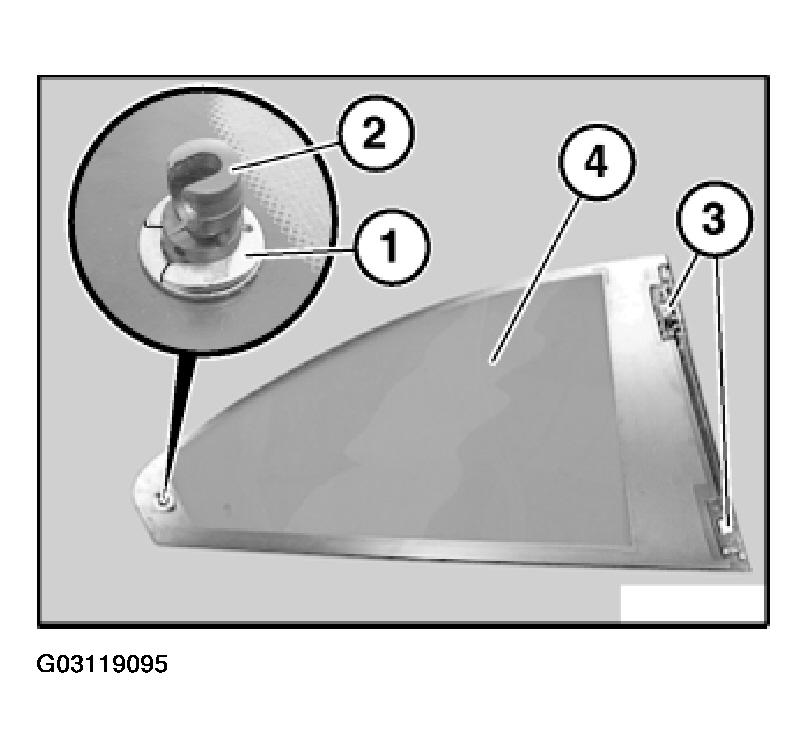

Fig 2: View Of Retainer Components

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retainer (1) must be mounted correctly.
Opening of support (2) must point towards rear.
Thread (3) on hinged window (4) must not be damaged.
Replace cover on side window (hinged window), refer to REPLACING COVER ON SIDE WINDOW (HINGED WINDOW), REAR LEFT OR RIGHT (COUPE) .

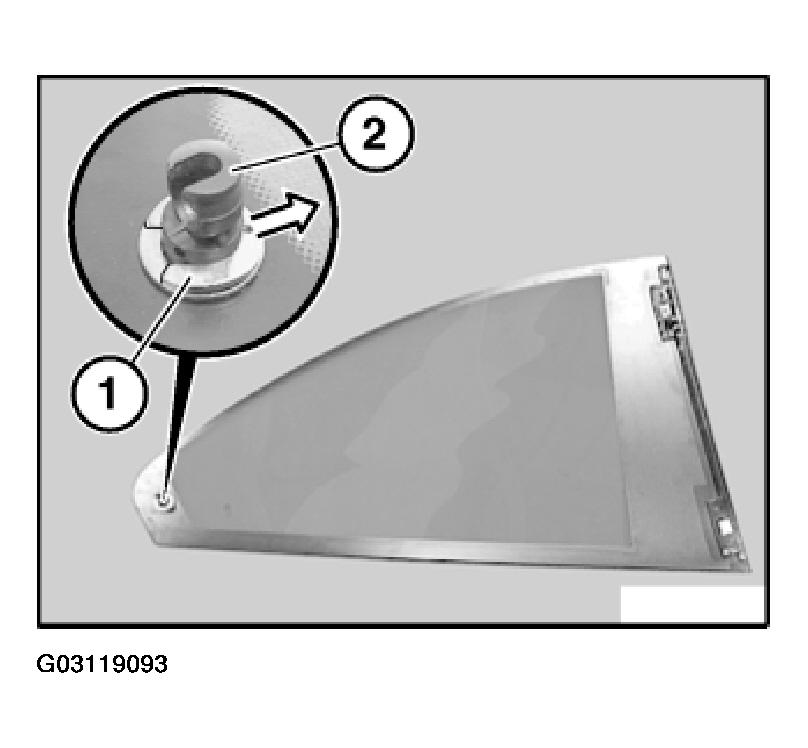

Fig 3: Installing Retainer

Courtesy of BMW OF NORTH AMERICA, INC.
