51 36 015 Removing And Installing Rear Left Or Right Hinged Window (Coupe)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Unhook connecting rod on hinged window, refer to REMOVING AND INSTALLING/REPLACING TRIM ON REAR SEAT BACKREST SIDE SECTION (COUPE) .

Remove panel for door pillar (B-pillar), refer to REMOVING AND INSTALLING/REPLACING TRIM PANEL FOR LEFT OR RIGHT DOOR PILLAR (TOP) (COUPE) .

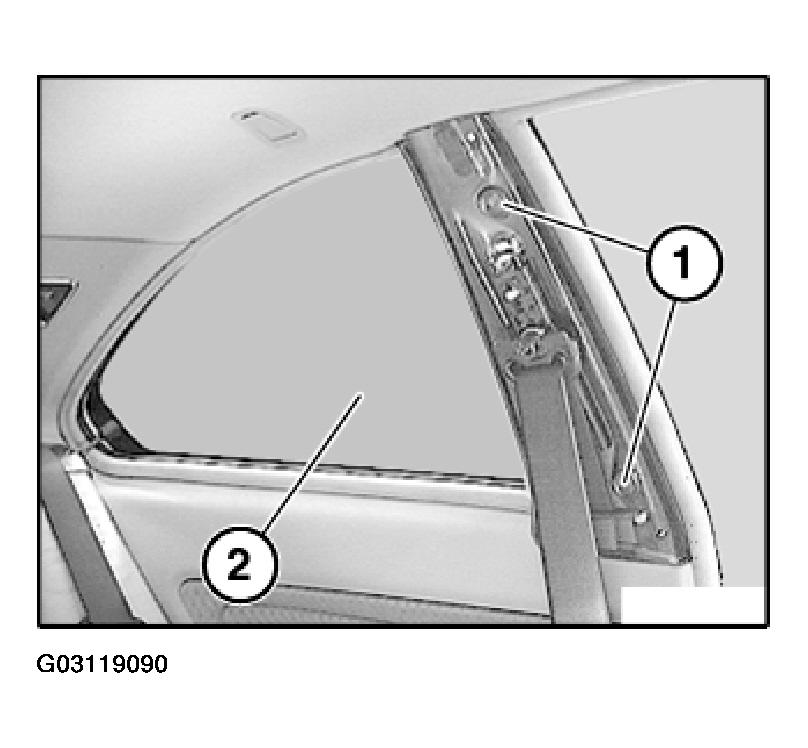

Lever out protective caps (1) and release screws underneath. Remove hinged window (2).

Installation:

Tightening Torque, refer to 51 36 1AZ in BODY EQUIPMENT - TIGHTENING TORQUES - 3-SERIES .

Fig 1: Removing Protective Caps
Courtesy of BMW OF NORTH AMERICA, INC.

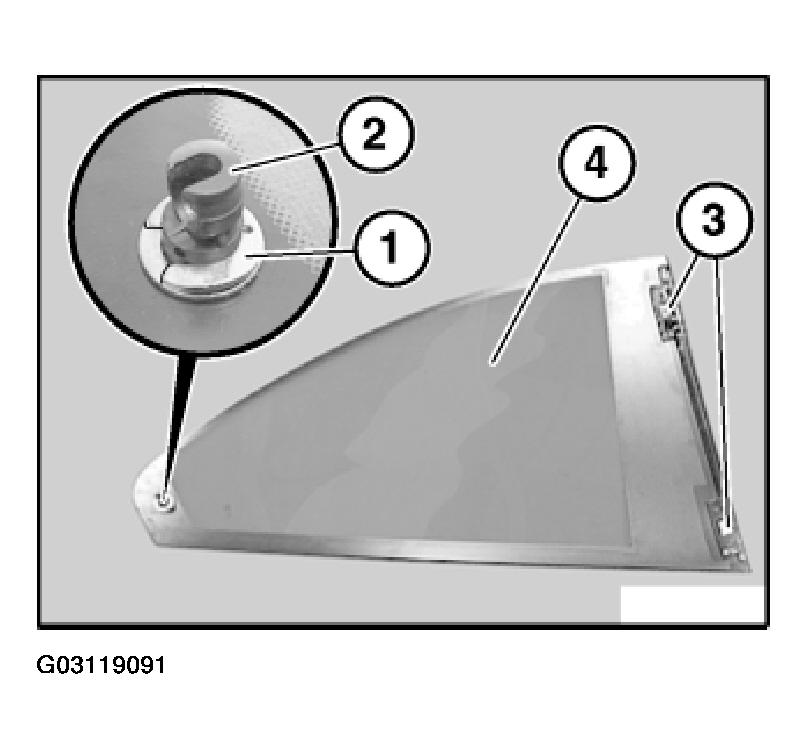

Installation:

Retainer (1) must be correctly seated.
Opening of support (2) must point towards rear.
Thread (3) on hinged window (4) must not be damaged.

Fig 2: Installing Retainer
Courtesy of BMW OF NORTH AMERICA, INC.

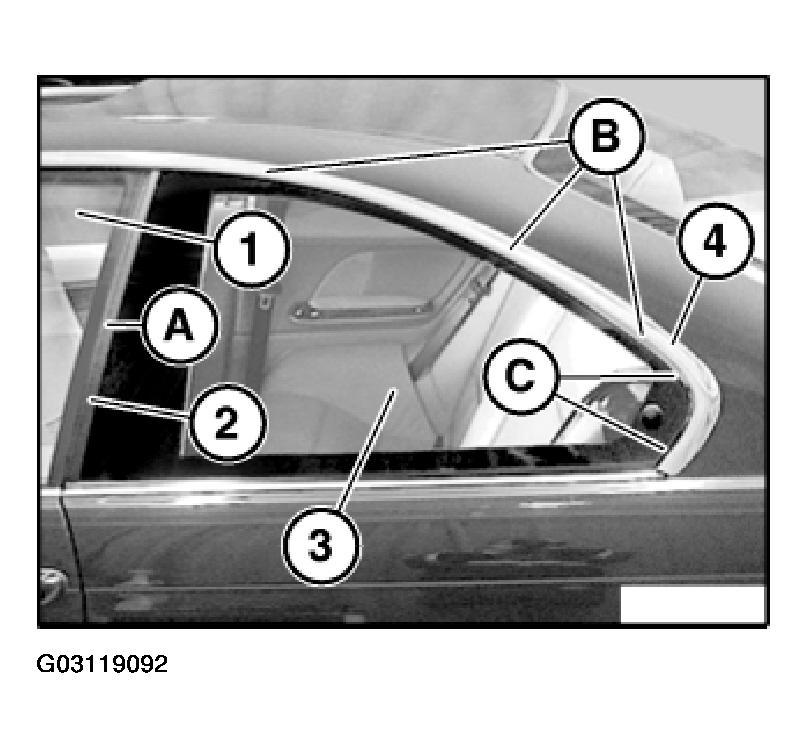

Ideal adjustment:

(A) Distance of strip (2) to edge of door window (1).
(B) Distance from hinged window edge (3) to water drain (4), top.
(C) Distance from hinged window edge (3) to water drain (4), in corner.

Distances:

(A) Up to 6 mm.
(B) 1 mm.
(C) Up to 1.8 mm.

Fig 3: Identifying Distance From Hinged Window Edge To Water Drain

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If distance (A) is not achieved, a new cover strip (2) must be fitted. If necessary, replace cover on hinged window at rear, refer to REPLACING COVER ON SIDE WINDOW (HINGED WINDOW), REAR LEFT OR RIGHT (COUPE) .
