51 43 148 Removing And Installing/Replacing Trim Panel For Left Or Right Door Pillar (Top) (Coupe)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Unclip side trim panel in area of door pillar trim panel.

Lever out cap (1).

Release screw (2) and detach seatbelt strap (5).

Installation:

Tightening Torque, (44 N.m.).
Fit rosette (3) and spacer bush (4).

Fig 1: Identifying Seatbelt Strap Screw
Courtesy of BMW OF NORTH AMERICA, INC.

Release expansion rivets (1) on trim (2).

Fig 2: Locating Expansion Rivets On Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off door pillar trim panel (1) at top towards bottom. Feed out seatbelt strap (2).

Installation:

Insert trim panel (1) at top correctly into locators (3).

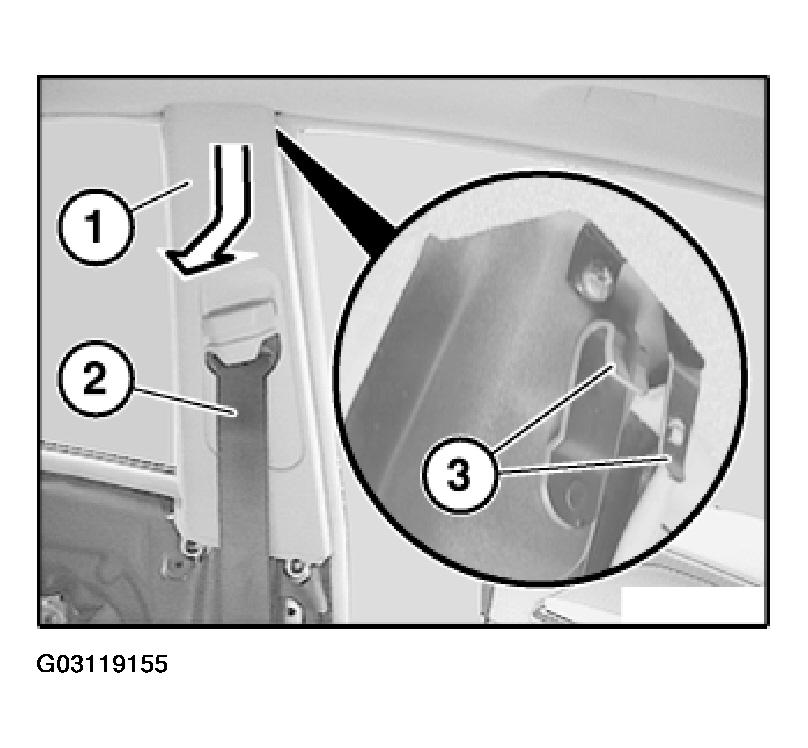

Fig 3: View Of Door Pillar Trim Panel
Courtesy of BMW OF NORTH AMERICA, INC.
