67 11 555 Removing and installing/replacing servo drive for tank filler flap

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Saloon/Sedan, Coupe:

Remove right luggage compartment wheel arch trim in rear area. See 51 47 161 REMOVING AND INSTALLING/REPLACING TRUNK WHEEL ARCH TRIM ON RIGHT (TOURING)

Unlock plug connection (1) and disconnect.

Slacken screws (2).

Feed out servo drive for tank filler flap (3) towards rear and pull in direction of arrow out of gaiter (4).

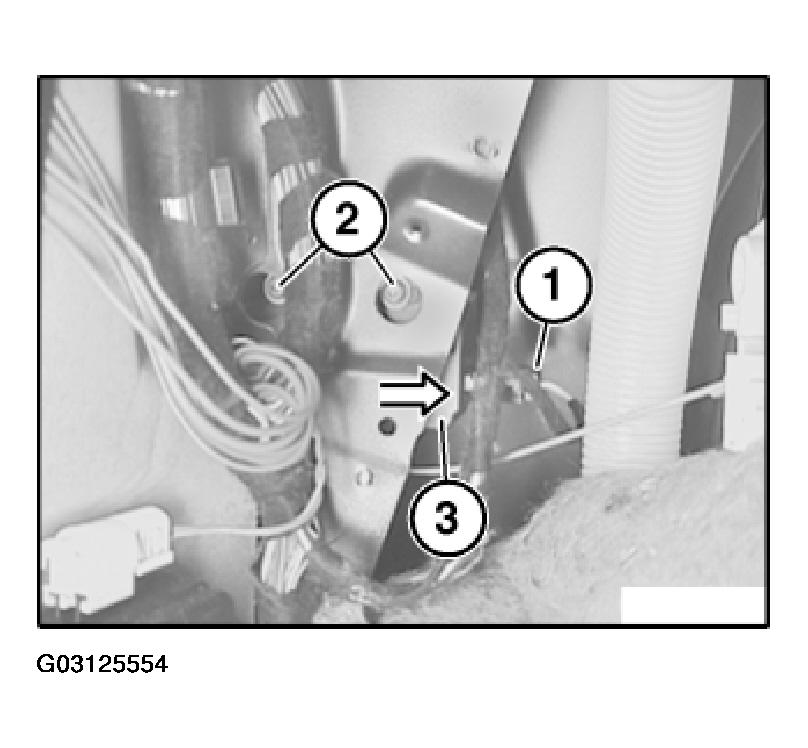

Fig 1: Unlocking Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

touring:

Remove flap in right luggage compartment wheel arch trim. See 51 47 172 REMOVING AND INSTALLING/REPLACING FLAP IN TRUNK TRIM PANEL, LEFT OR RIGHT (TOURING)

Unhook pull strap for emergency actuator (1) in direction of arrow from guide (2).

Remove fluid reservoir for rear window washer system and place to one side. See 61 62 130 REMOVING AND INSTALLING/REPLACING WATER RESERVOIR FOR REAR WINDOW WASHING SYSTEM

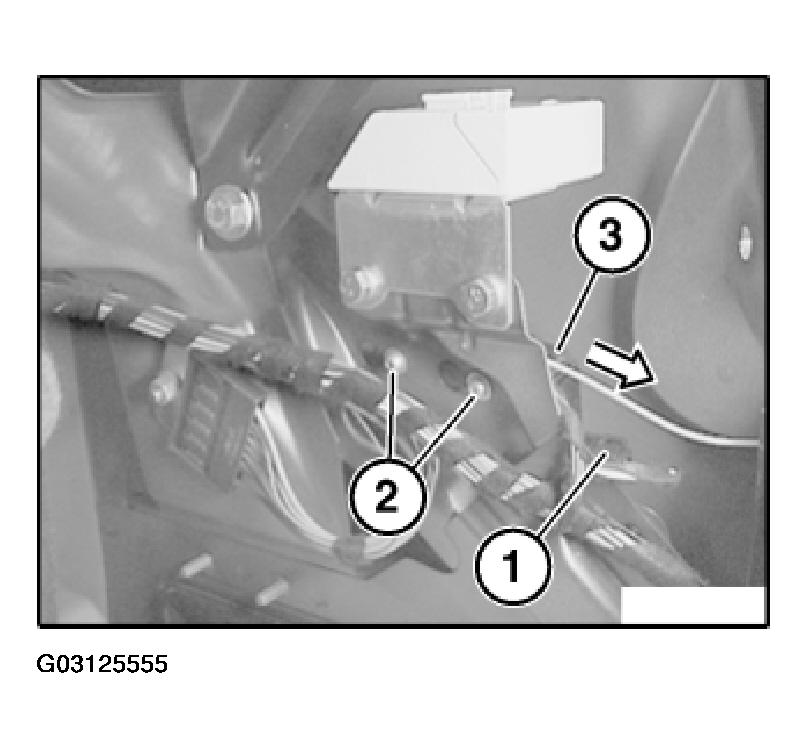

Fig 2: Unhooking Pull Strap For Emergency Actuator

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connection (1) and disconnect.

Slacken screws (2).

Feed out servo drive for tank filler flap (3) towards rear and pull in direction of arrow out of gaiter (4).

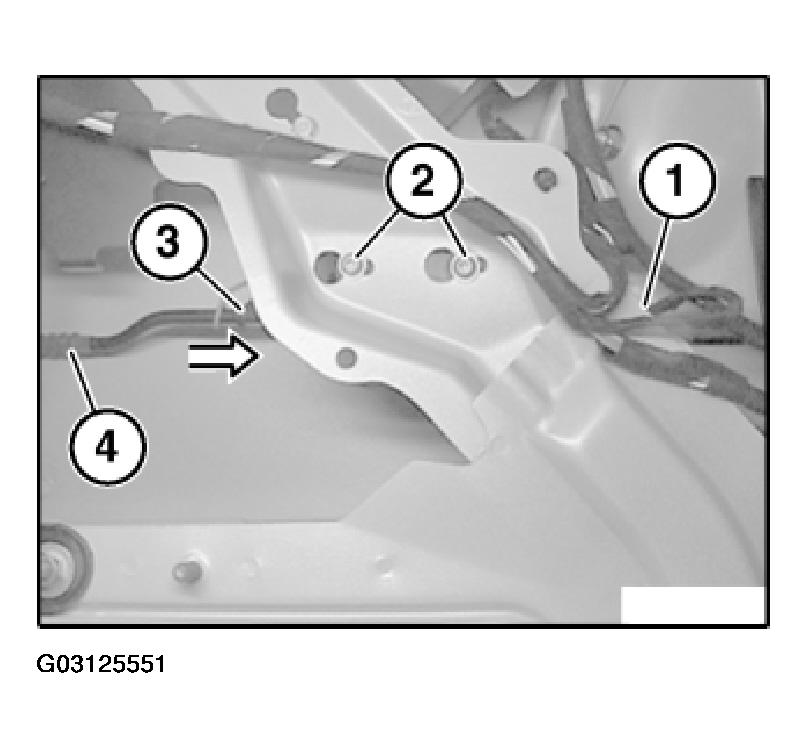

Fig 3: Unlocking Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

compact:

Disconnect emergency actuator for tank cap. See 51 47 161 REMOVING AND INSTALLING/REPLACING TRUNK WHEEL ARCH TRIM ON RIGHT (TOURING)

Fold down sound insulation.

Unlock plug connection (1) and disconnect.

Slacken screws (2).

Feed out servo drive for tank filler flap (3) towards rear and pull out in direction of arrow.

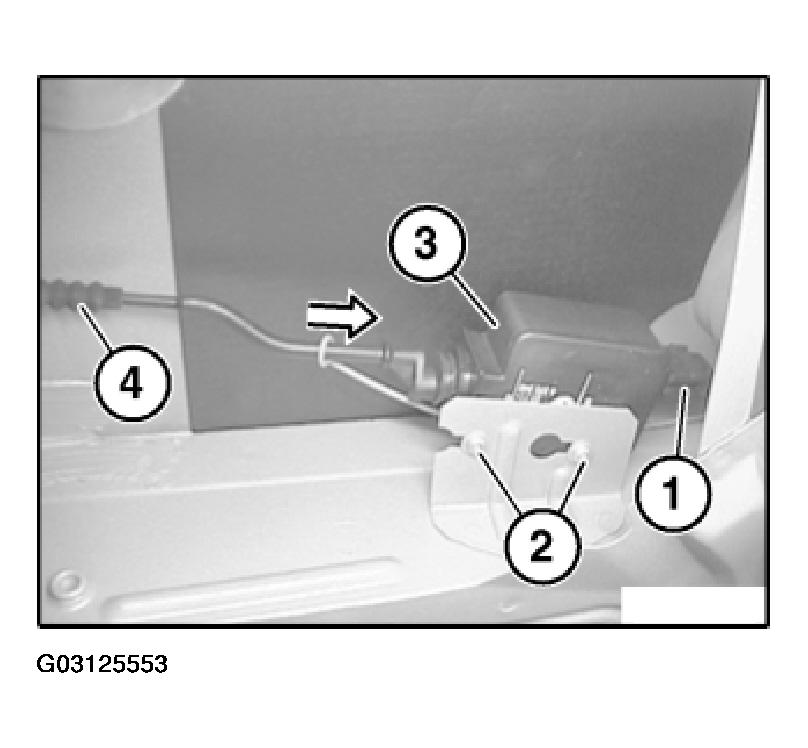

Fig 4: Unlocking Plug Connection (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Convertible:

Removing right luggage compartment wheel arch trim. See 51 47 161 REMOVING AND INSTALLING/REPLACING TRUNK WHEEL ARCH TRIM ON RIGHT (TOURING)

Unlock plug connection (1) and disconnect.

Slacken screws (2).

Feed out servo drive for tank filler flap (3) towards rear and pull out in direction of arrow.

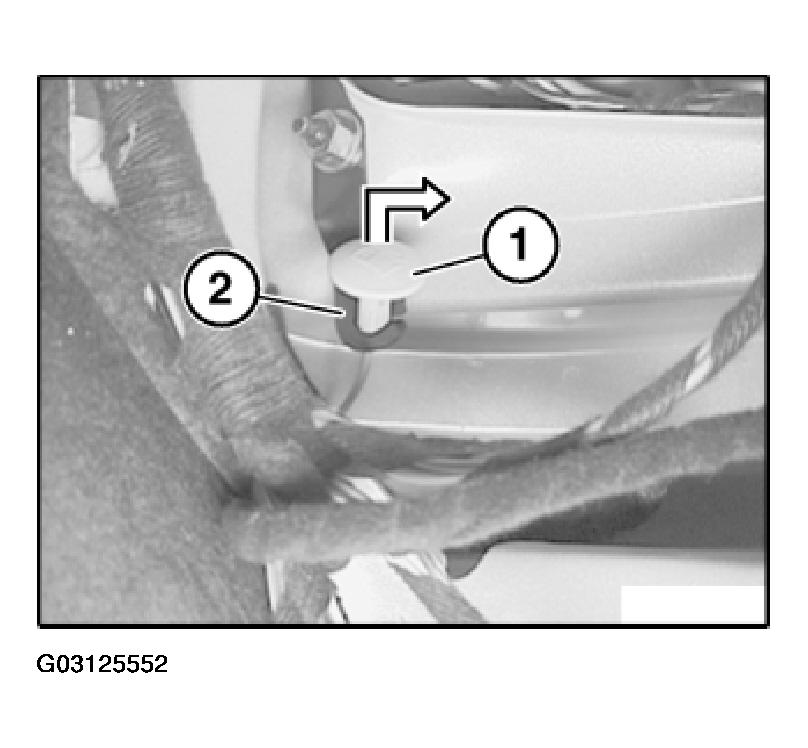

Fig 5: Unlocking Plug Connection (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

All:

Installation:

Insert servo drive for tank filler flap (1) in direction of arrow into gaiter (2).

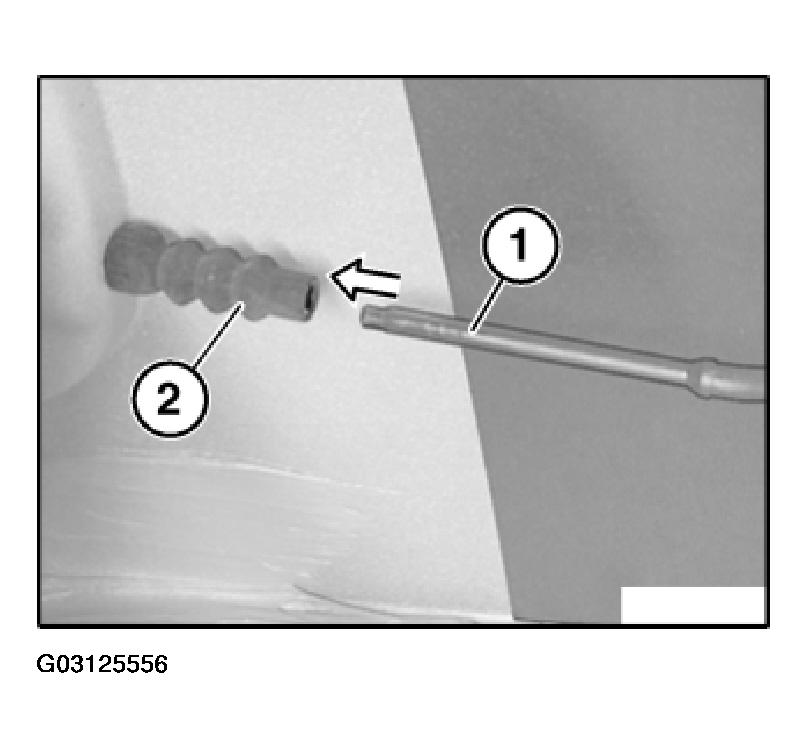

Fig 6: Identifying Inserting Servo Drive For Tank Filler Flap

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove pull strap for emergency actuator (1) in direction of arrow from servo drive for tank filler flap (2).

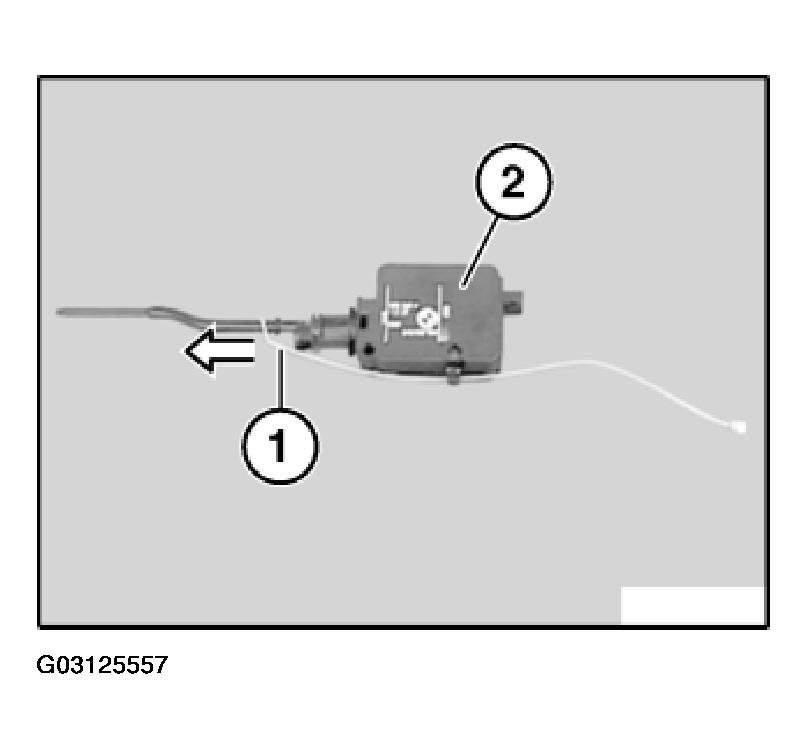

Fig 7: Pulling Strap For Emergency Actuator

Courtesy of BMW OF NORTH AMERICA, INC.
