64 11 839 Replacing actuator drive of footwell flap

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove and install housing for glovebox and cover on equipment carrier at bottom, refer to 51 45 031 REPLACING INSTRUMENT PANEL TRIM .

Remove and install airbag module on passenger side, refer to AIR BAG RESTRAINT SYSTEMS .

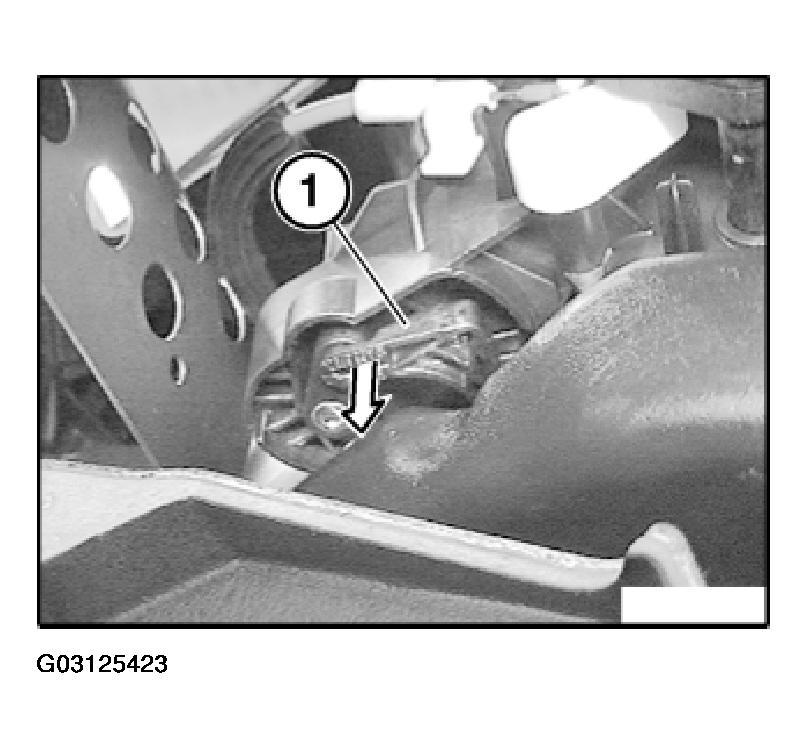

Unhook adjusting lever (1).

Fig 1: Unhooking Adjusting Lever

Courtesy of BMW OF NORTH AMERICA, INC.

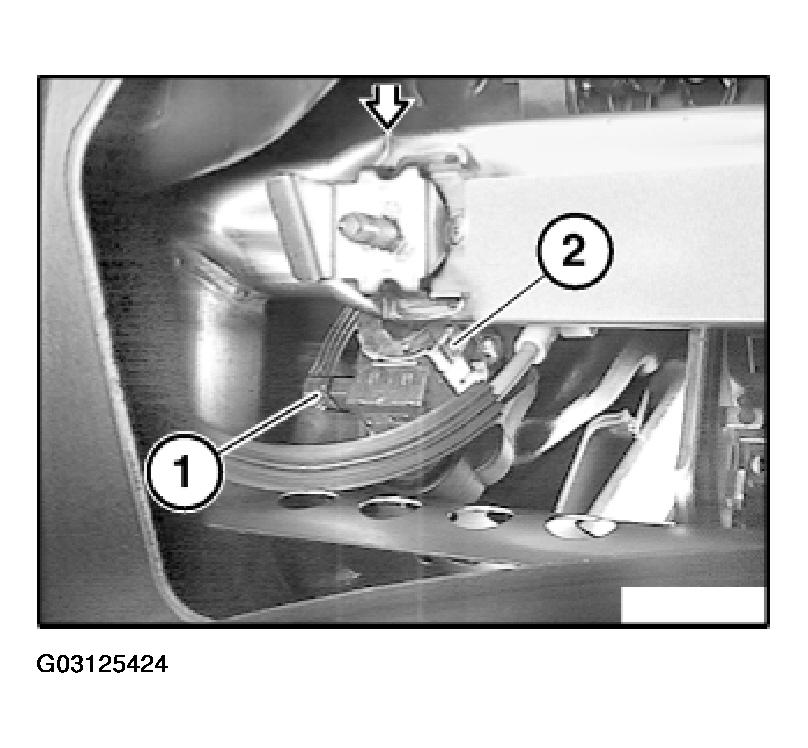

Disconnect plug connection (1). Unlock actuator drive (2) and feed out towards rear.

Fig 2: Unlocking Actuator Drive

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, align shaft for footwell flap and drive. See Fig 3.

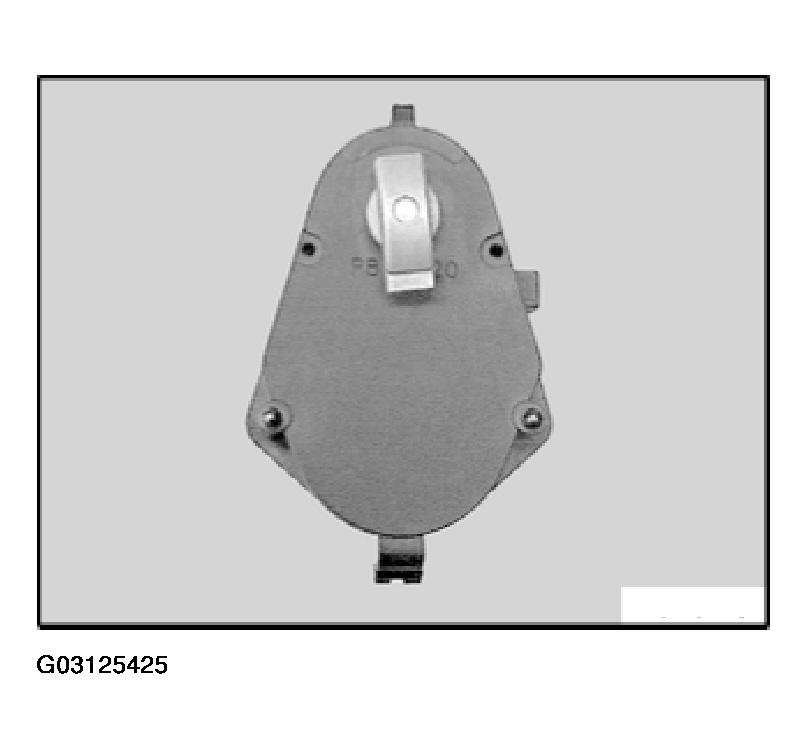

Fig 3: Aligning Shaft For Footwell Flap & Drive
Courtesy of BMW OF NORTH AMERICA, INC.
