64 11 205 Removing and installing / replacing heater (automatic air conditioner)

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

Draw off, evacuate and fill A/C system. 64 50 009 Drawing off, evacuating and filling A/C system (R 134a)

Remove heater bulkhead. See 51 71 080 REMOVING AND INSTALLING/REPLACING HEATER BULKHEAD .

S54 only:

Remove intake air manifold. See 11 61 050 REMOVING AND INSTALLING INTAKE AIR MANIFOLD (S54) .

WARNING: Danger of scalding!
Only perform this work after engine has cooled down.

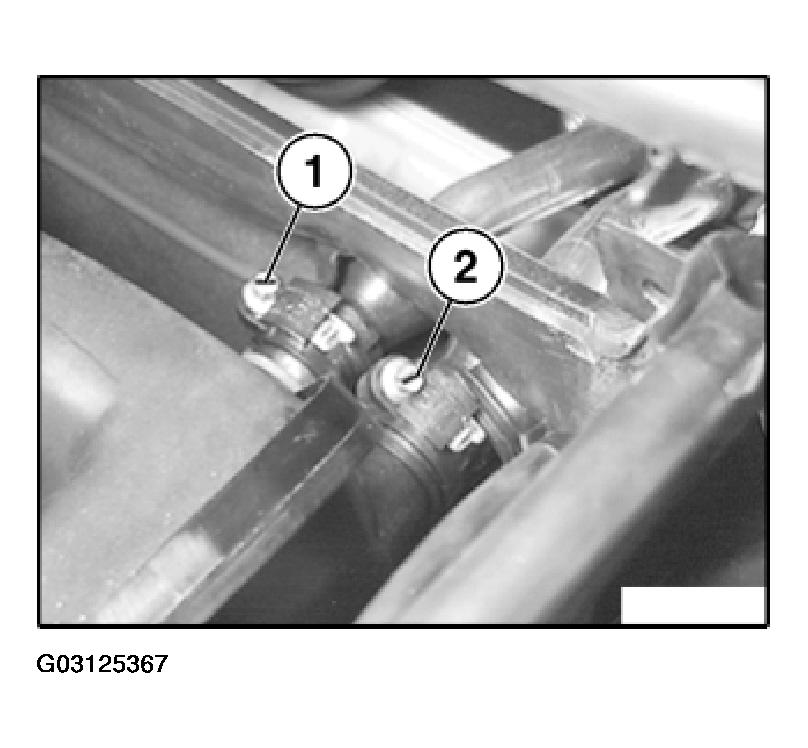

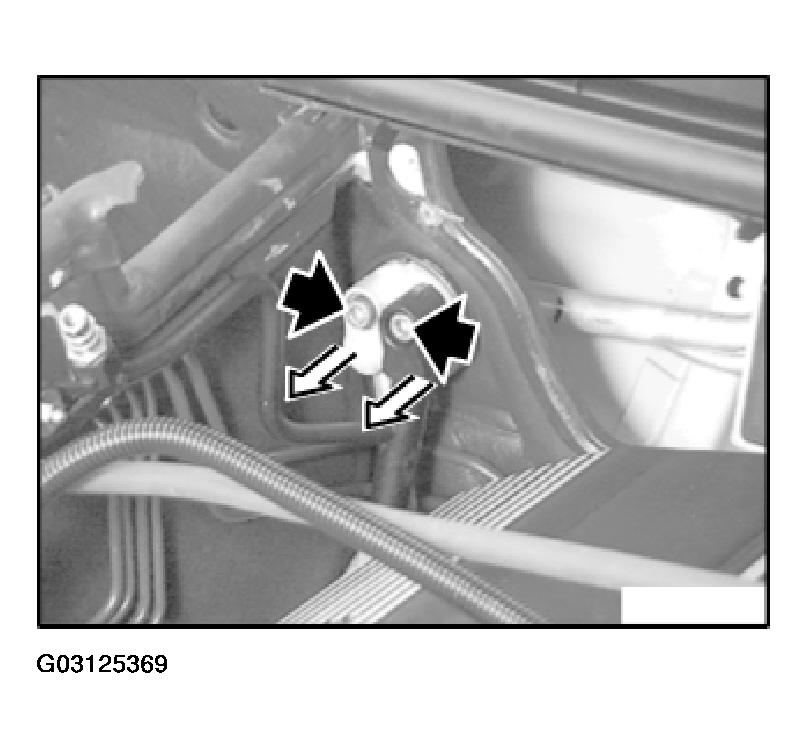

Release hose clamps (1) and (2).

Detach water hoses.

Carefully blow through lines to remove remaining coolant from heating element.

Installation:

Filling and bleeding the cooling system. See 17 00 009 CHECKING COOLING SYSTEM FOR WATER LEAKS .

Fig 1: Releasing Hose Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

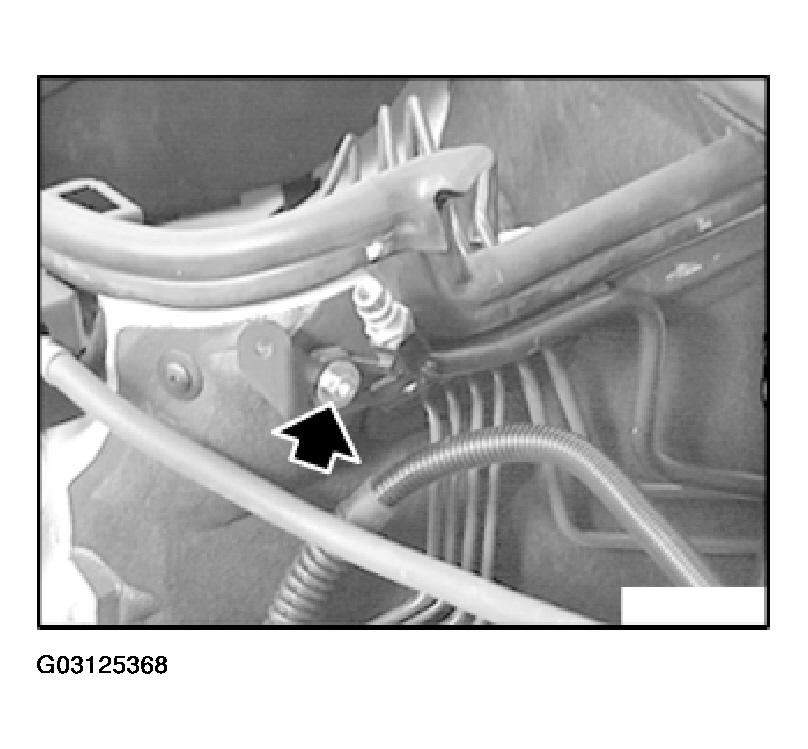

Release screw.

Fig 2: Releasing Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws.

Remove pressure and intake pipes.

Installation:

Replace sealing rings.

Fig 3: Removing Pressure & Intake Pipes

Courtesy of BMW OF NORTH AMERICA, INC.

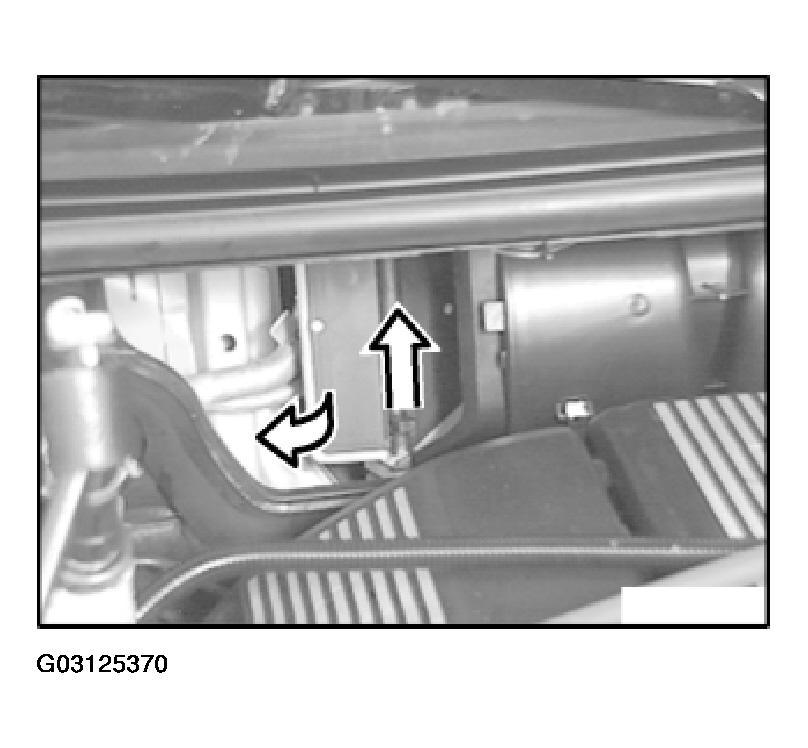

If necessary, release unlocking mechanism and remove circulating air flap.

Fig 4: Removing Circulating Air Flap

Courtesy of BMW OF NORTH AMERICA, INC.

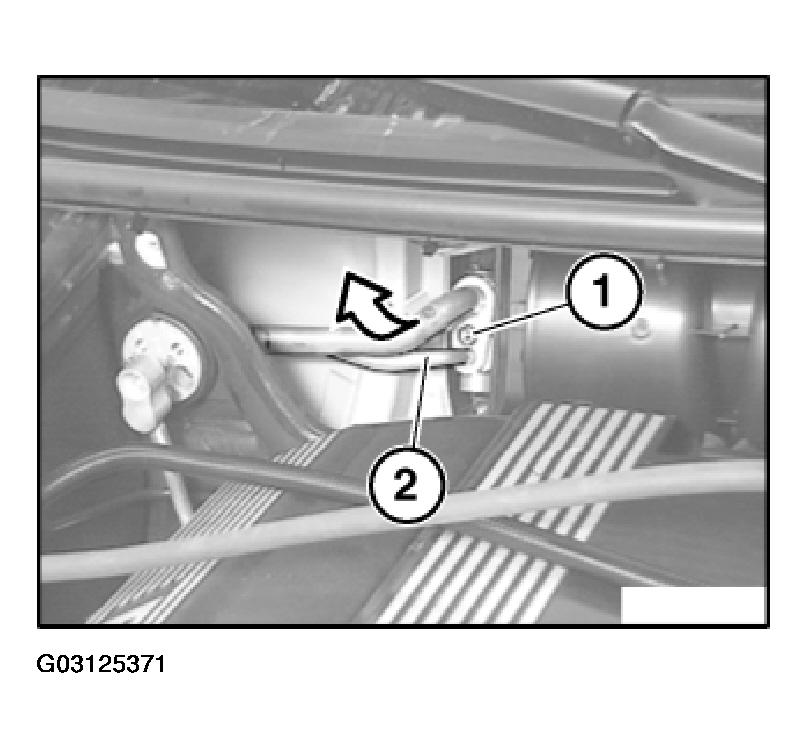

Release nut (1) and lay double pipe (2) to one side.

Installation:

Replace sealing rings.

Fig 5: Releasing Nut & Lay Double Pipe To One Side

Courtesy of BMW OF NORTH AMERICA, INC.

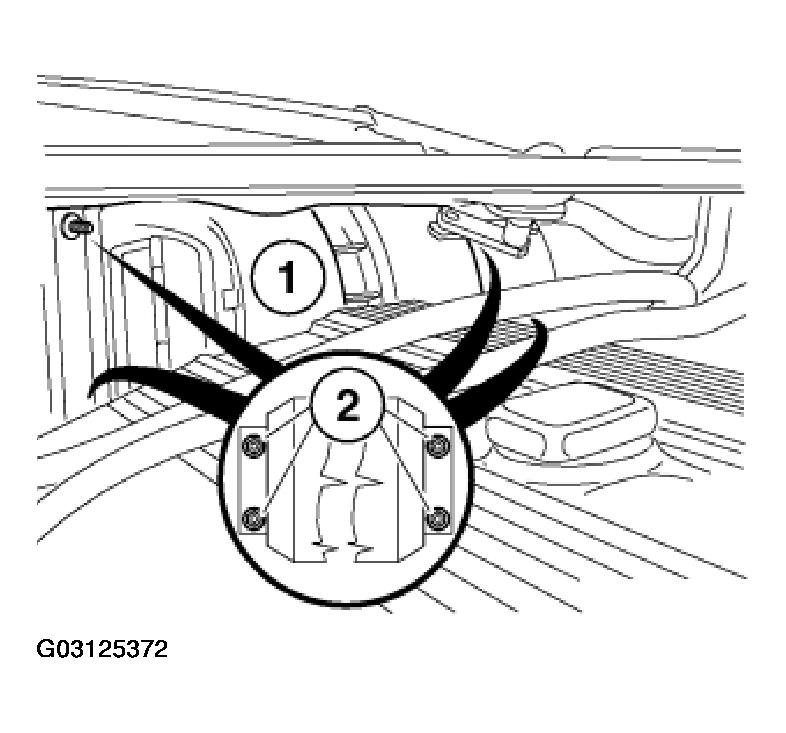

Release screws (2) on bulkhead (1).

Fig 6: Releasing Screws On Bulkhead

Courtesy of BMW OF NORTH AMERICA, INC.

Remove panel for instrument panel. See 51 45 030 REMOVING AND INSTALLING INSTRUMENT PANEL TRIM .

Remove complete storage tray. See 51 16 200 REMOVING AND INSTALLING STORAGE TRAY .

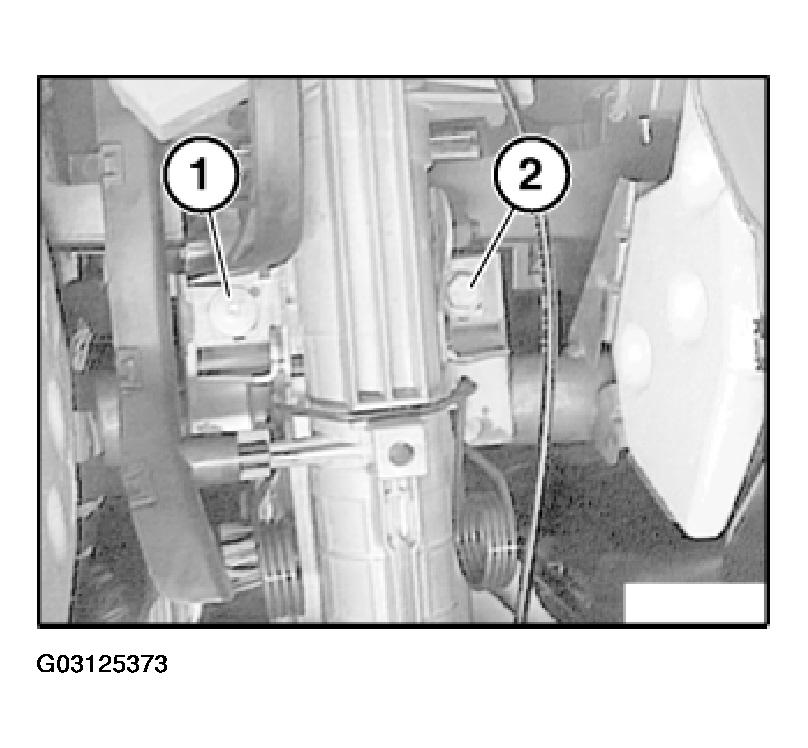

Release shear screw (1) (e.g. mill off or rebore screw head).

Unscrew bolt (2).

Fig 7: Releasing Shear Screw

Courtesy of BMW OF NORTH AMERICA, INC.

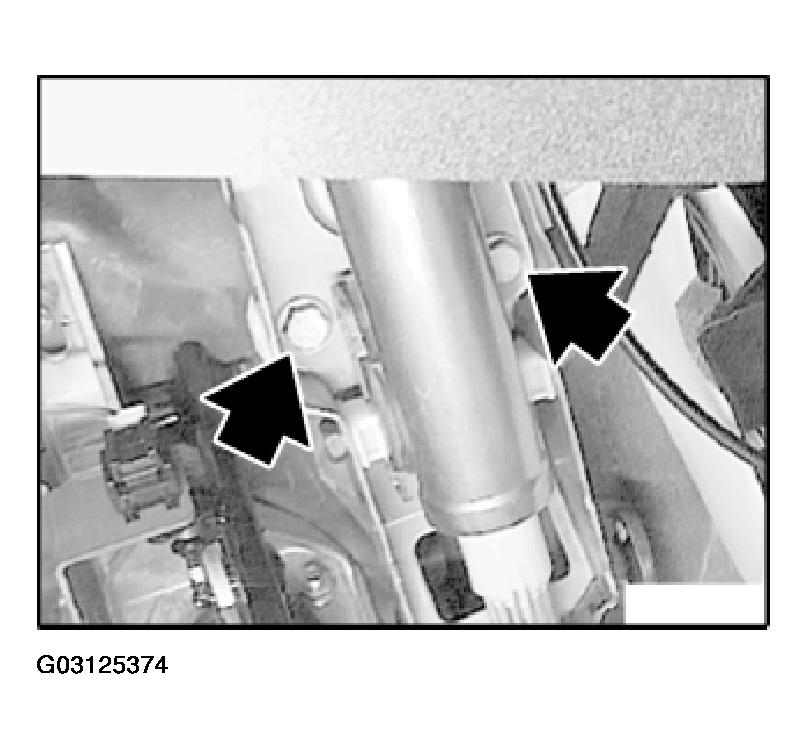

Release screws and lower steering column.

Fig 8: Releasing Screws & Lower Steering Column

Courtesy of BMW OF NORTH AMERICA, INC.

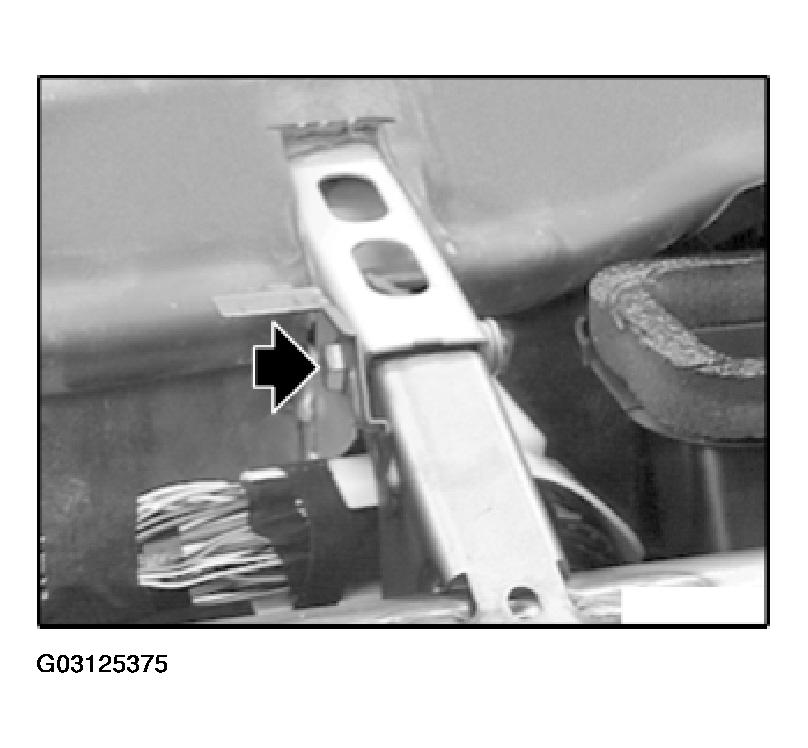

Release screw.

Fig 9: Releasing Screw

Courtesy of BMW OF NORTH AMERICA, INC.

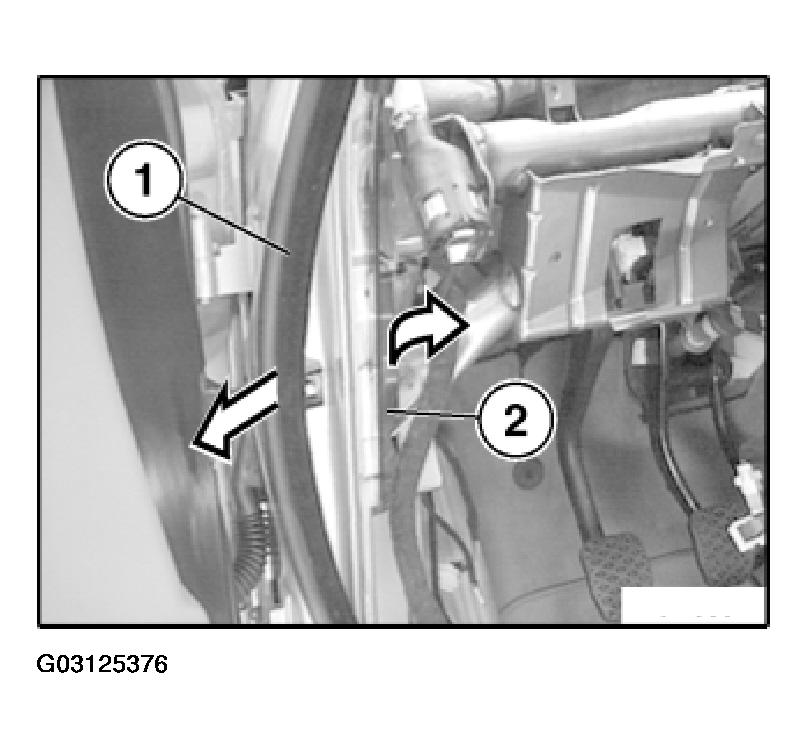

Detach door seal (1) and trim (2) on A-pillar on left and right in direction of arrow.

Fig 10: Detaching Door Seal & Trim

Courtesy of BMW OF NORTH AMERICA, INC.

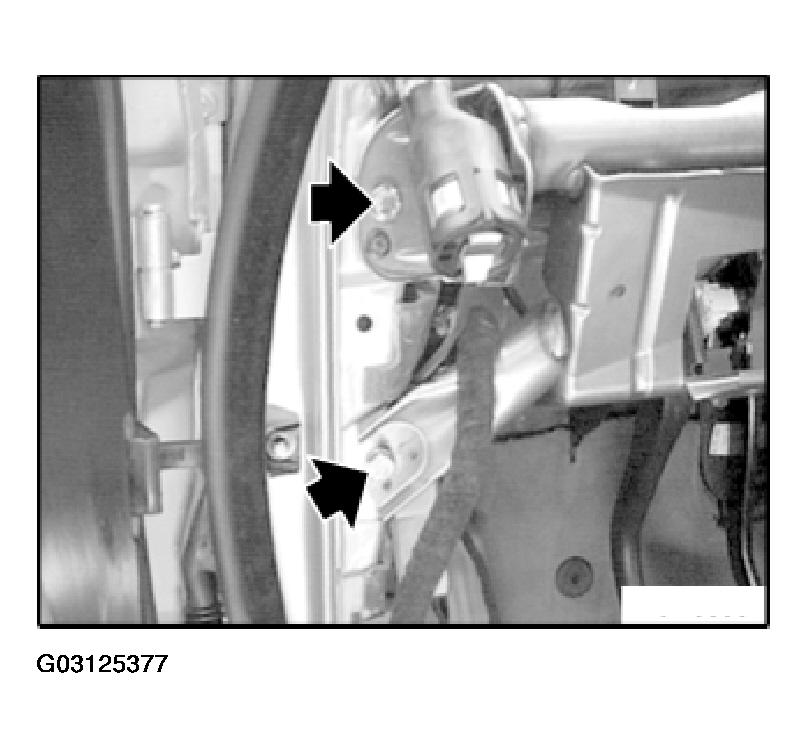

Unfasten transverse reinforcement on right and left.

Fig 11: Unfastening Transverse Reinforcement On Right & Left

Courtesy of BMW OF NORTH AMERICA, INC.

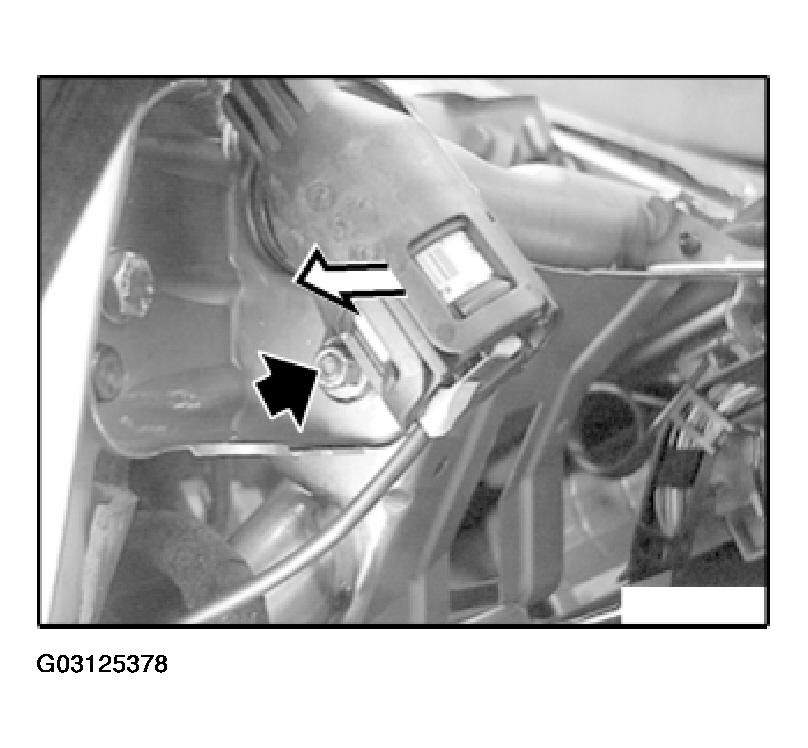

Release head airbag on transverse reinforcement on right and left.

Fig 12: Releasing Head Airbag On Transverse Reinforcement On Right & Left

Courtesy of BMW OF NORTH AMERICA, INC.

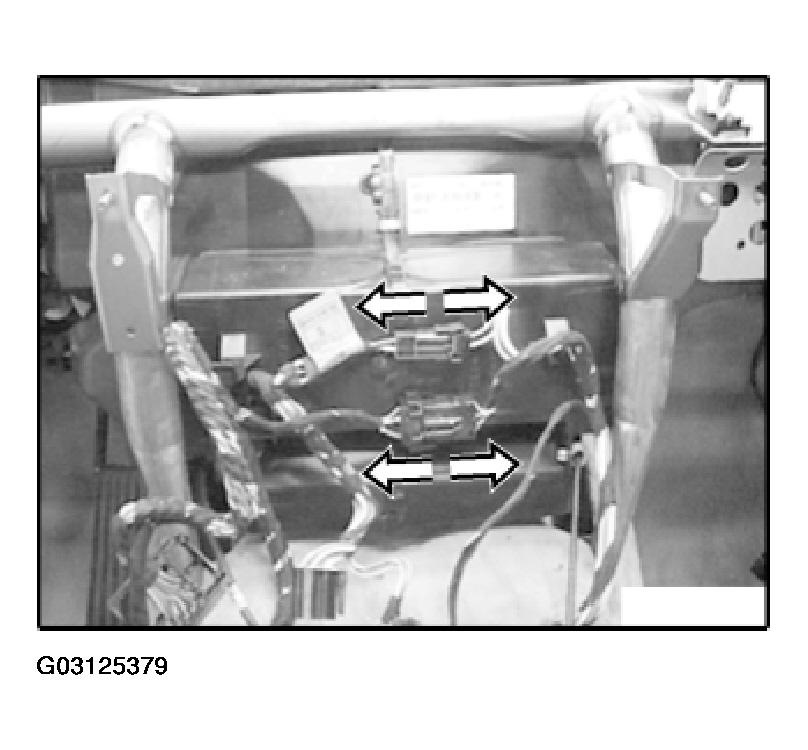

Disconnect heater plug connections.

Fig 13: Disconnecting Heater Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

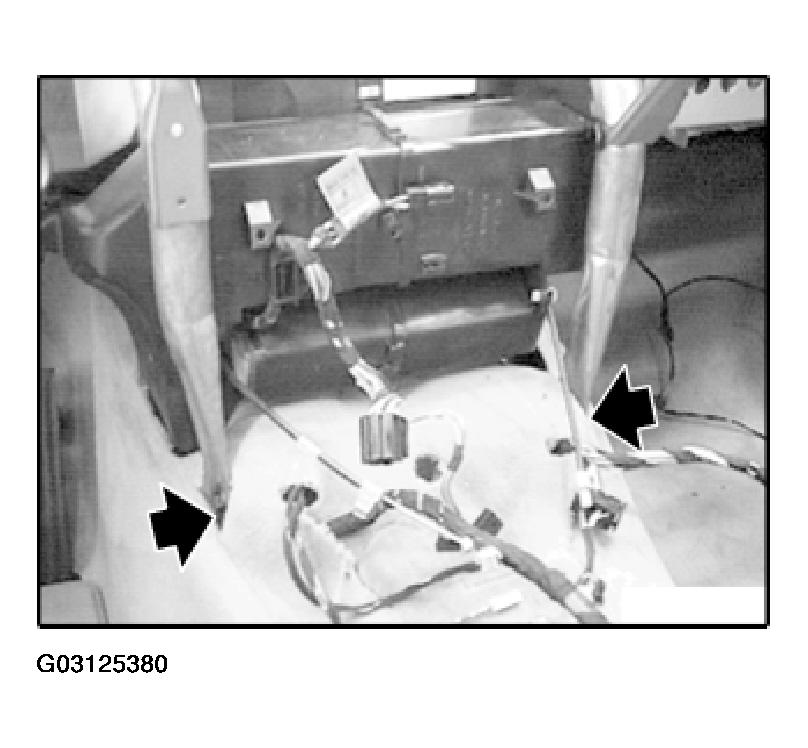

Unfasten transverse reinforcement on right and left sides of center console.

Fig 14: Unfastening Transverse Reinforcement On Right & Left Sides Of Center Console

Courtesy of BMW OF NORTH AMERICA, INC.

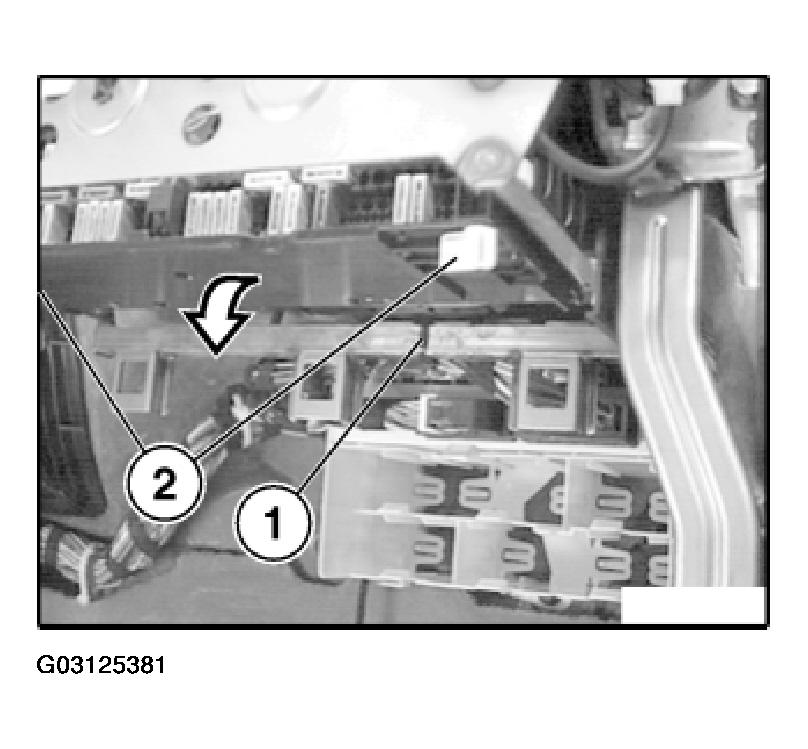

If necessary, cut open cable ties (1).

Turn lock (2) on left and right on fuse box through approx. 90° and fold down fuse box.

Fig 15: Turning Lock On Left & Right On Fuse Box

Courtesy of BMW OF NORTH AMERICA, INC.

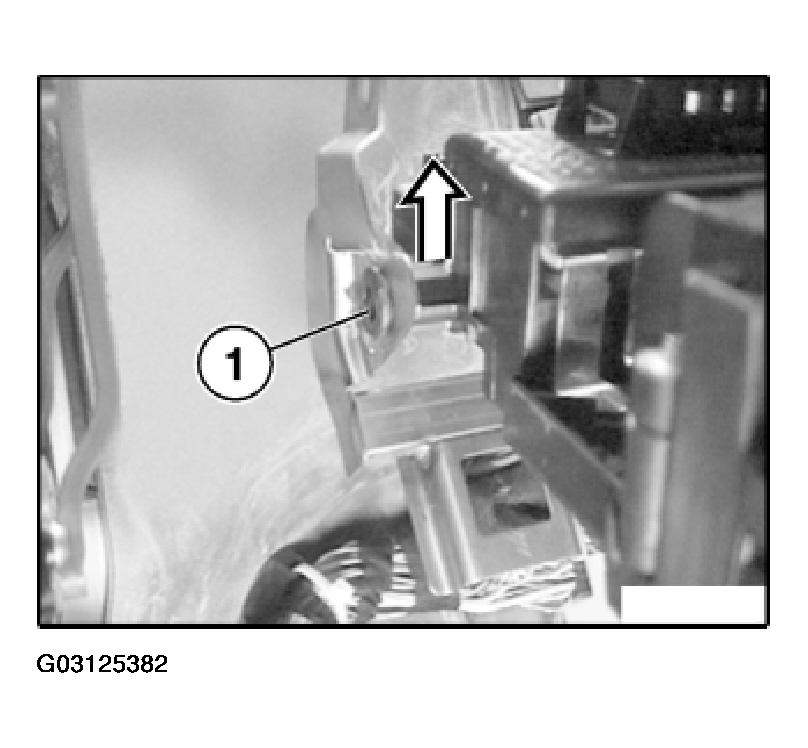

Disconnect pivot (1) of fuse box on left and right at transverse reinforcement towards top.

Remove transverse reinforcement.

Remove heater - A/C unit.

Installation:

Make sure condensate drain is correctly seated.

Fig 16: Removing Transverse Reinforcement

Courtesy of BMW OF NORTH AMERICA, INC.
