Special tools required:

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.

61 1 330

Necessary preliminary tasks:

Remove trim for rear lid. See 51 49 000 REMOVING AND INSTALLING / REPLACING TRIM PANEL FOR TRUNK LID (TOURING)

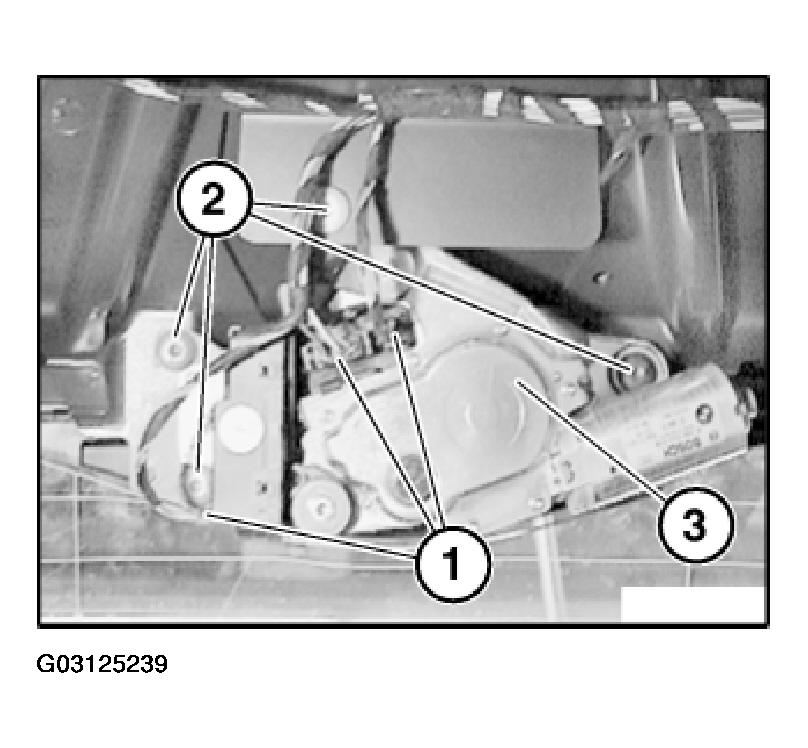

Disconnect plug connections (1).

Release screws (2).

Remove rear window wiper motor (3).

Fig 1: Removing Rear Window Wiper Motor

G03125239

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

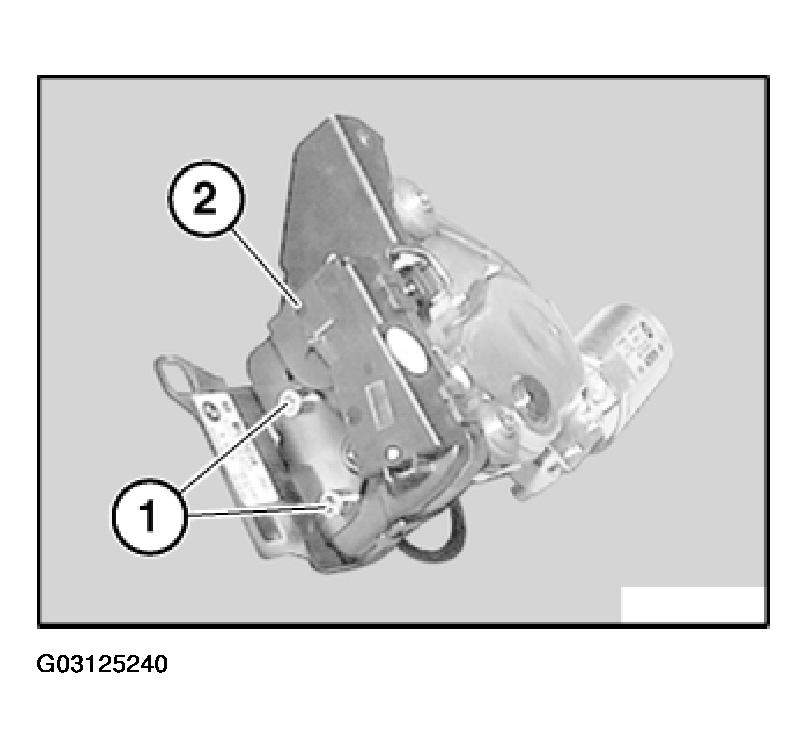

Release screws (1) and remove rear window lock (2).

Fig 2: Removing Rear Window Lock

G03125240

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

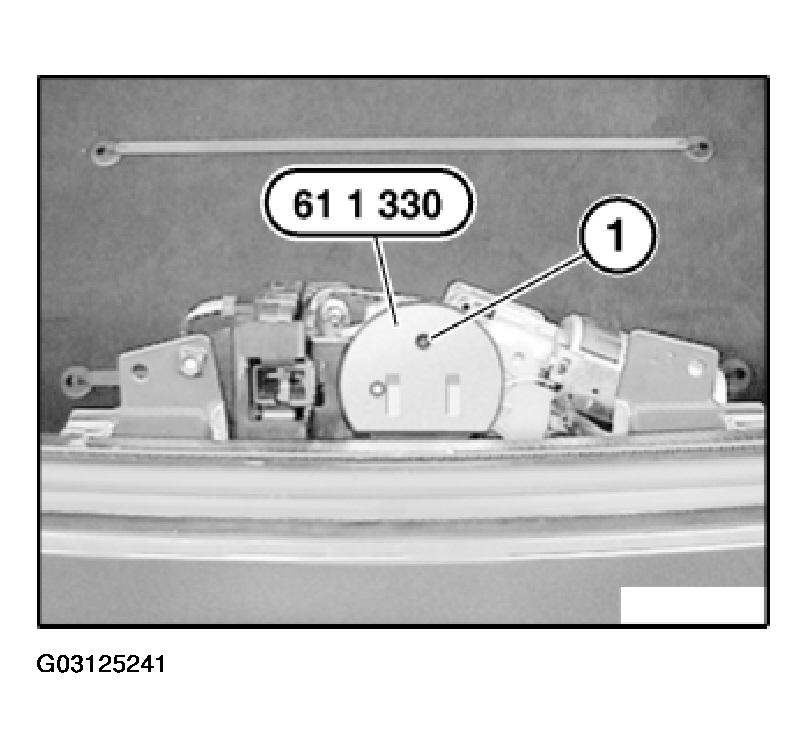

Place special tool 61 1 330 on drive of rear window wiper and close rear window.

Allow journal of wiper shaft bearing to snap into bore (1) with rear window wiper standing vertical.

Tighten rear window wiper motor to specified torque, tightening torque. Refer to GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUE .

Fig 3: Installing Rear Window Wiper Motor

G03125241

Courtesy of BMW OF NORTH AMERICA, INC.
