Special tools required:
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2006 BMW 330Ci, 2005 BMW 330xi, 2005 BMW 330i, 2005 BMW 330Ci, and 2004 BMW 330xi. However, it is still accessible from the selected car via links, so may be relevant.
- 51 2 100
Necessary preliminary tasks:
- Remove front seat 52 13 000 Removing and installing left or right front seat (normal/manual)
- Remove actuating unit 52 16 040 Removing and installing/replacing outer cover on front left or right seat (sports/electric)
WARNING:
Torsion bar spring (1) is subject to tension. Risk of injury.

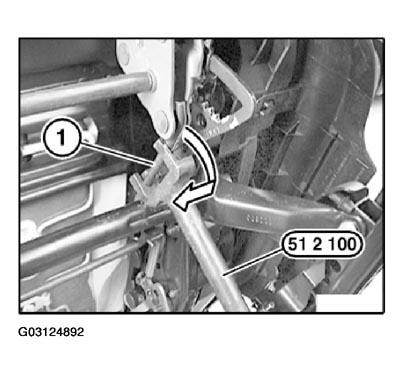

Lever torsion bar spring (1) with special tool 51 2 100 in direction of arrow from seat angle adjuster.
Feed torsion bar spring (1) out of seat mechanism.
Installation:
Make sure plastic protector is correctly positioned on contact surface between torsion bar spring and seat mechanism (grating noises).

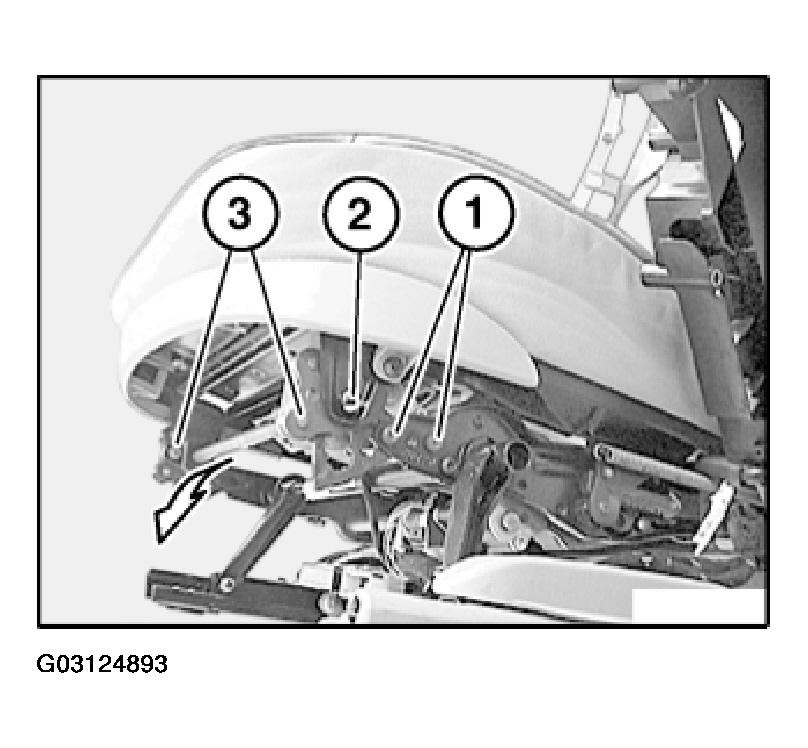

Release screws (1).
Installation:
Replace Taptite screws (1).
Tightening torque. Refer to SEATS - TIGHTENING TORQUES - 3-SERIES .
Release screw (2).
Remove seat angle adjuster (3).
Installation:
Slide left and right O-rings onto shaft. Make sure O-rings are correctly located between seat angle adjuster and seat pan.
