52 16 040 Removing and installing/replacing outer cover on front left or right seat (sports/electric)

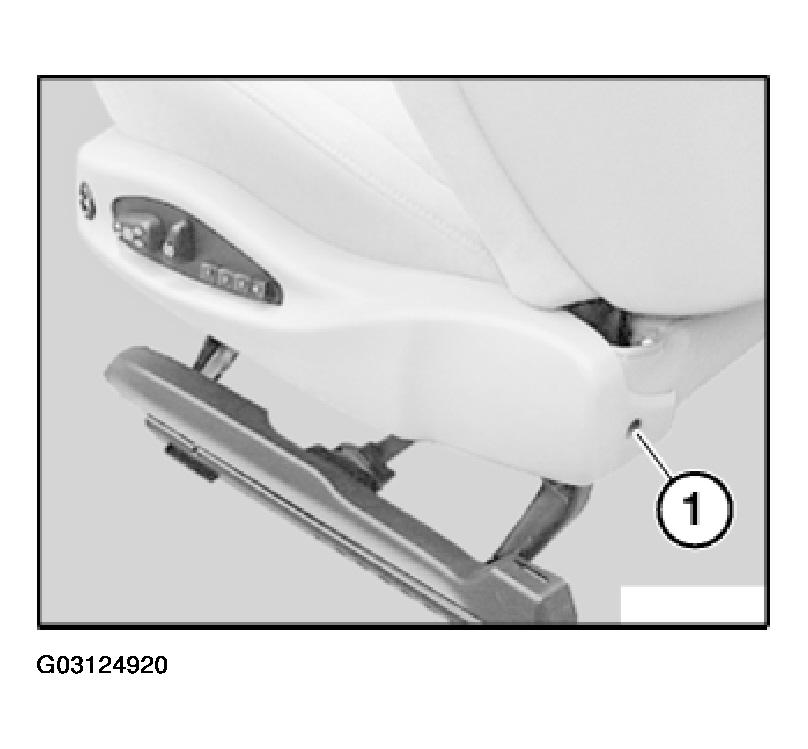

Unscrew bolt (1).

Fig 1: Unscrewing Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

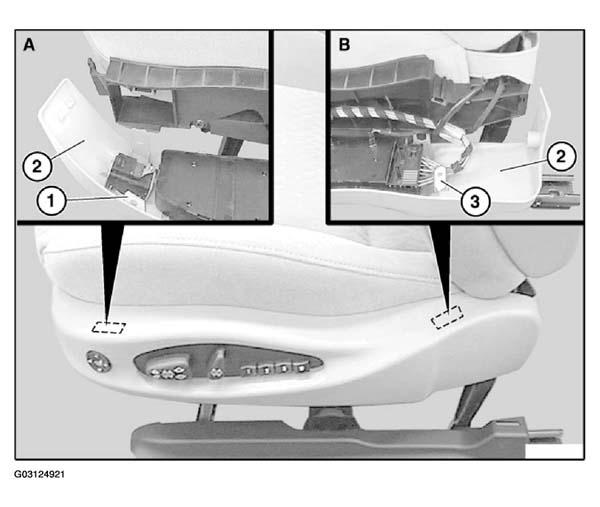

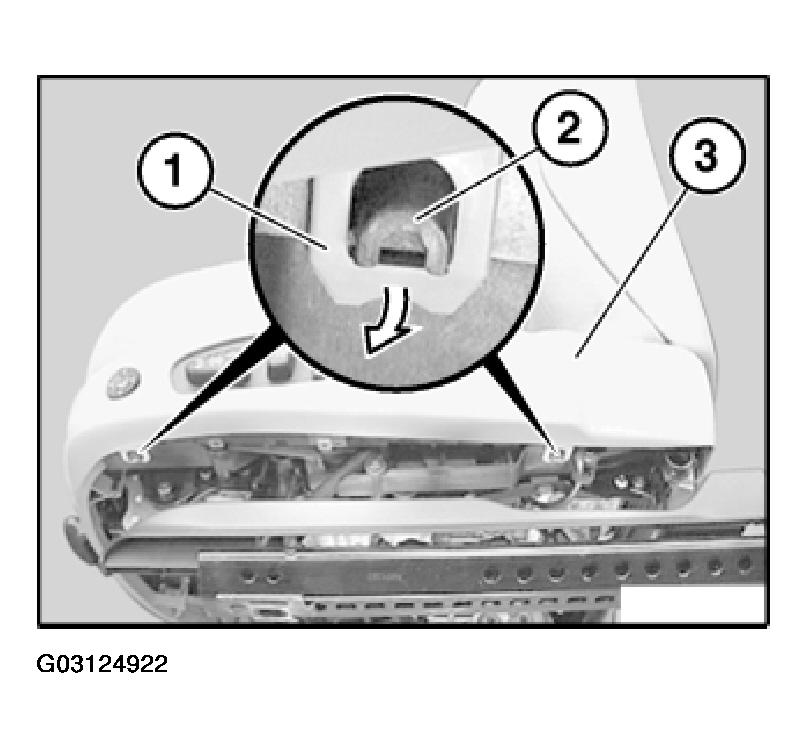

Removing top cover:

Fig 2: Removing Top Cover

Courtesy of BMW OF NORTH AMERICA, INC.

1. Snap out catch (1) on front cover (2) towards bottom and pull cover (2) outwards a little.
2. Snap out catch (3) on rear cover (2) towards front/bottom and pull cover (2) outwards a little.
   Fig 3: Removing Lugs On Cover Out Of Brackets

   Courtesy of BMW OF NORTH AMERICA, INC.

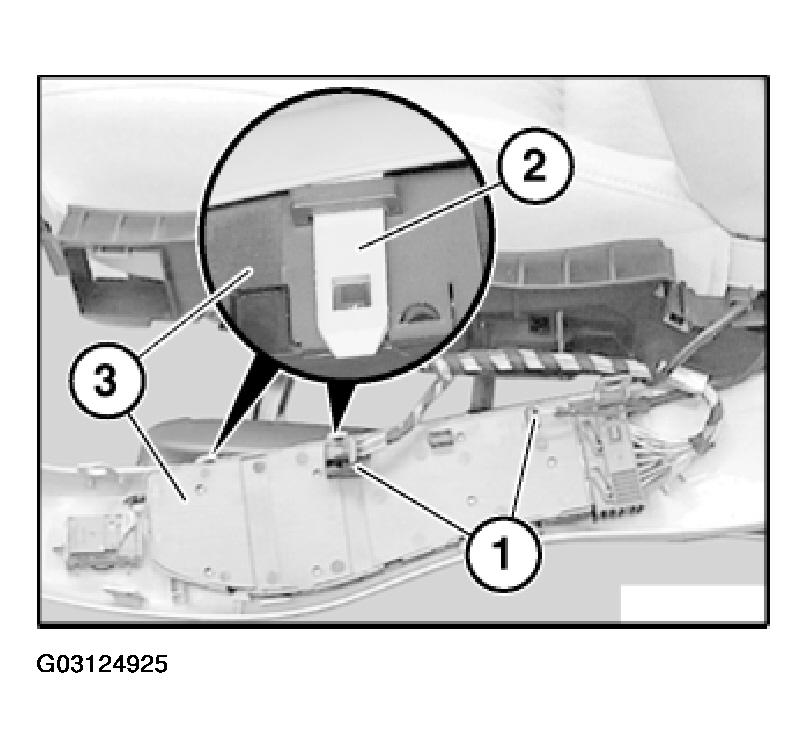

Lever lugs (1) on cover (3) out of brackets (2).

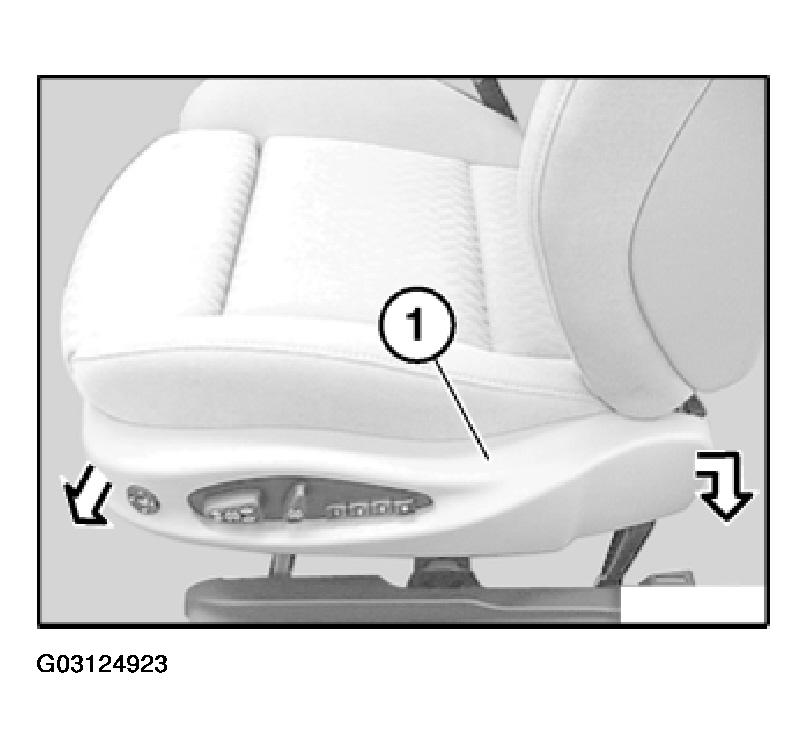

Lever out cover (1) at rear, detach at front from guide and remove.

Fig 4: Removing Out Cover At Rear

Courtesy of BMW OF NORTH AMERICA, INC.

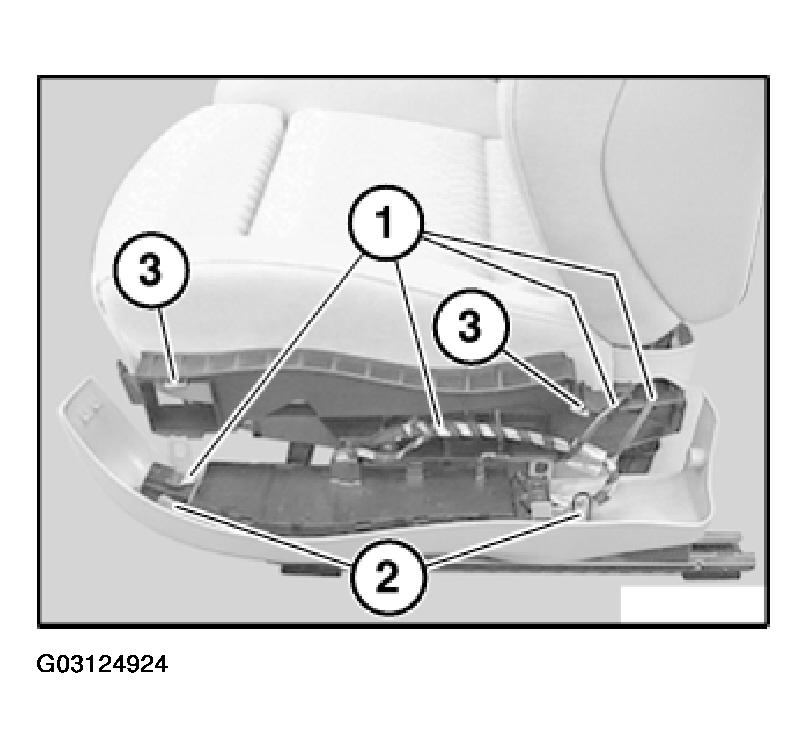

Installation:

1. Do not crush cables (1) during installation.
2. Insert lugs (2) into mounts (3) and snap into place.
   Fig 5: Inserting Lugs Into Mounts

   Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Lever out lugs (2) and detach switch combination (3).

Fig 6: Removing Lugs & Detaching Combination

Courtesy of BMW OF NORTH AMERICA, INC.

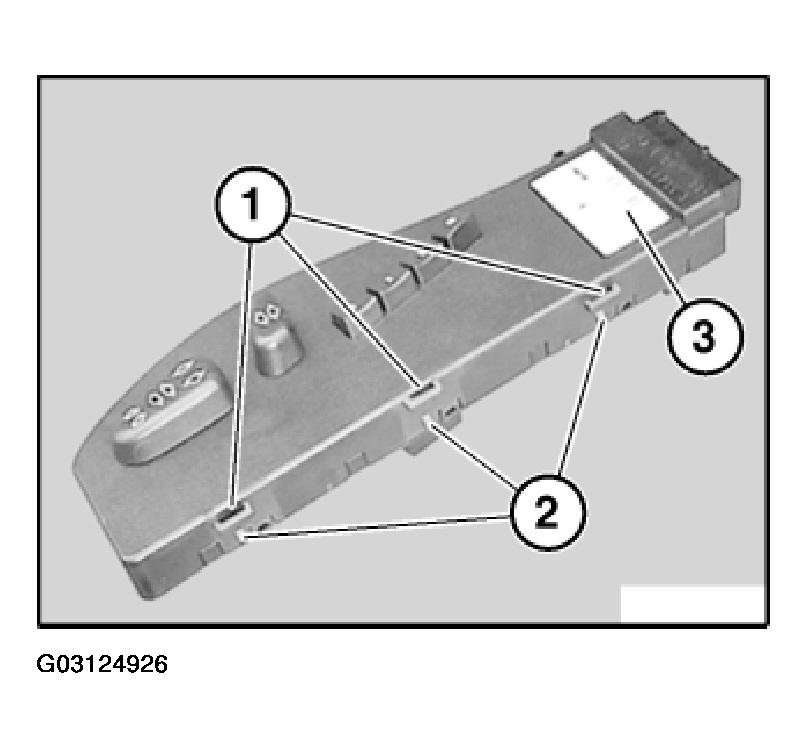

Installation:

1. Guides (1) and catches (2) on switch combination (3) must not be damaged.
   Fig 7: Identifying Guides & Catches On Switch Combination

   Courtesy of BMW OF NORTH AMERICA, INC.

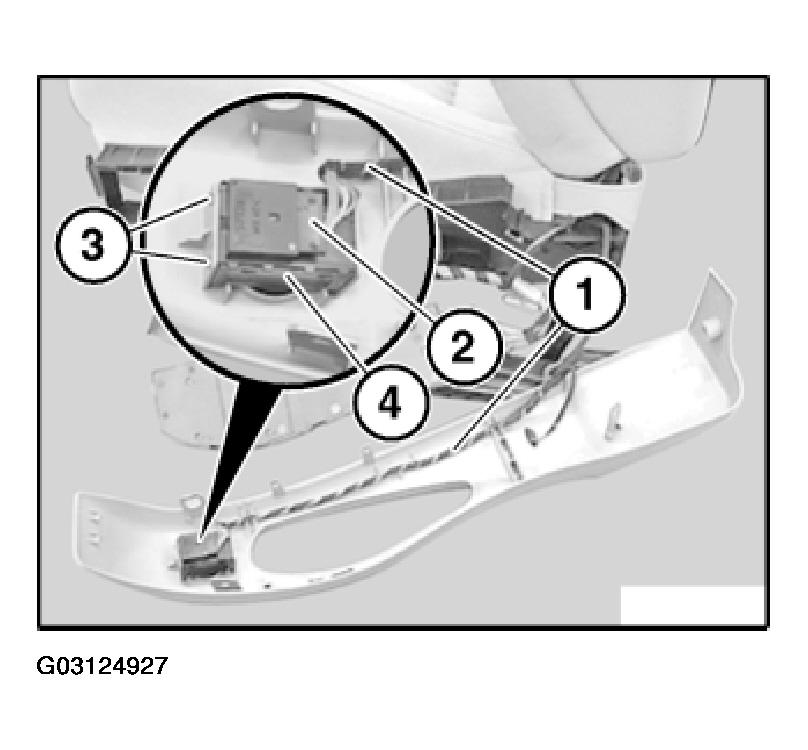

Model with lumbar supports:

If necessary, expose cable (1) and disconnect plug connection (2).

Replacement only:

If necessary, press down catches (3) on left/right and remove switch (4) from cover.

Fig 8: Removing Switch From Cover (Model With Lumbar Supports)

Courtesy of BMW OF NORTH AMERICA, INC.

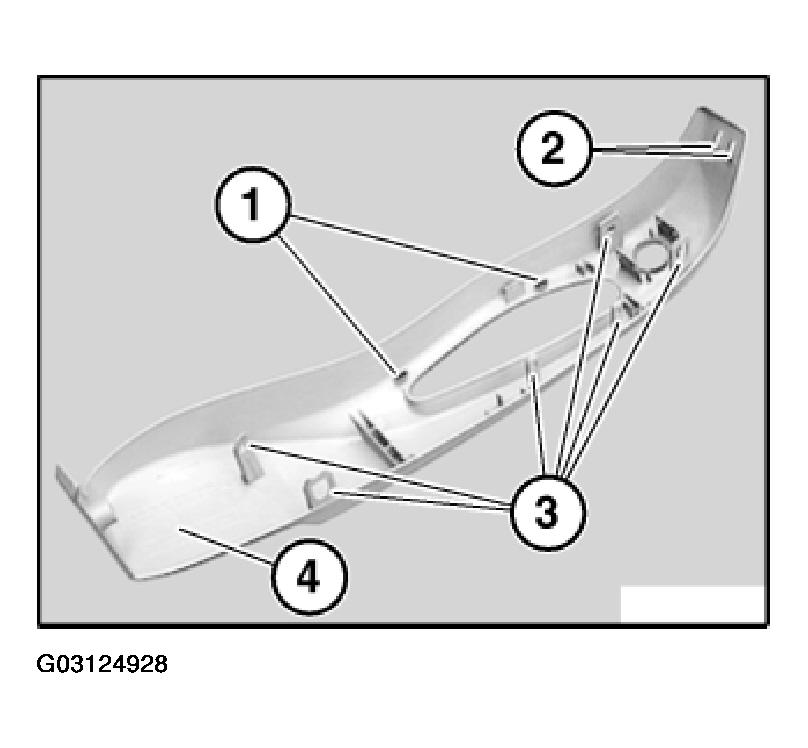

Installation:

Following parts must not be damaged, replace cover (4) if necessary:

1. Mounts for switch combination
2. Guide, front
3. Tabs
   Fig 9: Identifying Mounts For Switch Combination, Guide, Front & Tabs

   Courtesy of BMW OF NORTH AMERICA, INC.

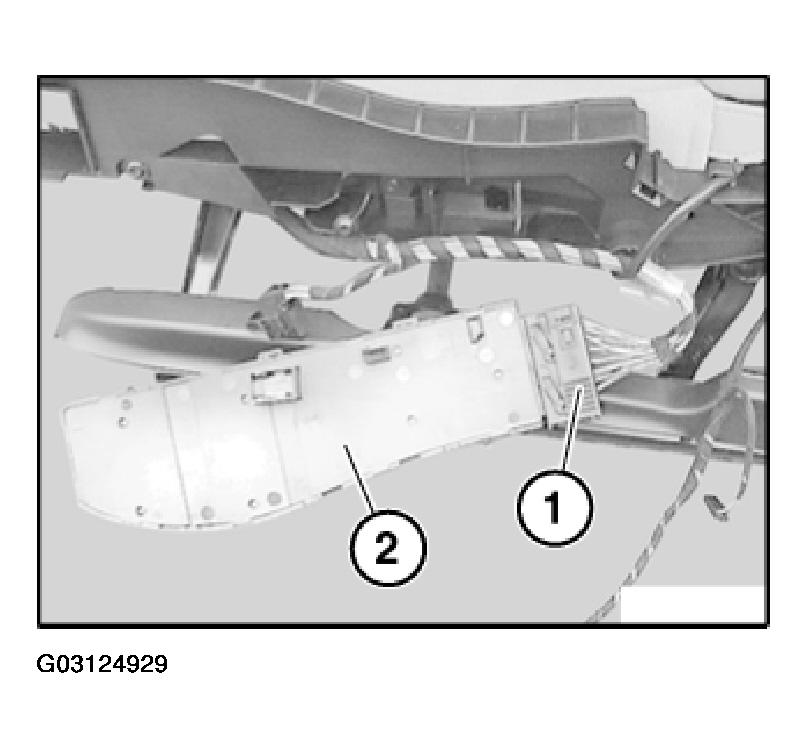

Replacement of switch combination only or in event of further work on front seat:

Disconnect plug connection (1) and remove switch combination (2).

Fig 10: Removing Switch Combination

Courtesy of BMW OF NORTH AMERICA, INC.
