Removing and installing/replacing charge air duct of cylinder 4-6 (S55 engine)

Necessary preliminary work:

• Remove ACOUSTIC COVER .
• Remove right-hand INTAKE SILENCER HOUSING .

Removal:

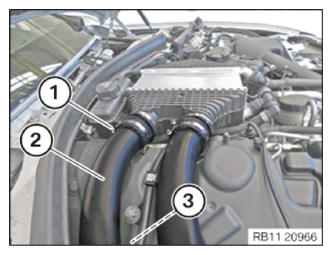

Unfasten hose clamp (1).

Release screw (3).

Remove the charge air line (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert and install the charge air line (2).

Installation note:

The gaskets and connections on the charge air pipe must be installed dry and free from grease.

Tighten hose clamp (1).

Tightening torque: 11 61 4AZ .

Tighten screw (3).

Tightening torque: 11 61 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install right INTAKE FILTER HOUSING .
• Install the ACOUSTIC COVER .
