Replacing all valve springs (S55 engine)

Special tools required:

• 11 9 000
• 11 9 007
• 11 8 840
• 11 4 481
• 11 4 482

Necessary preliminary tasks:

• Remove CYLINDER HEAD .
• Remove EXHAUST CAMSHAFT .
• Remove INTERMEDIATE LEVER .
• Remove INTAKE CAMSHAFT .
• Remove ROCKER ARM .

Place cylinder head on special tool 11 9 000.

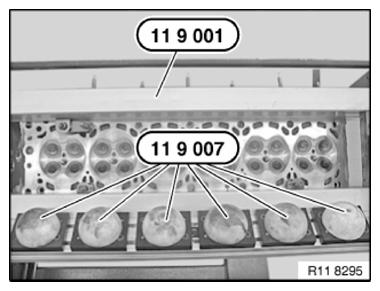

Align special tool 11 9 007 on particular combustion chamber.

Courtesy of BMW OF NORTH AMERICA, INC.

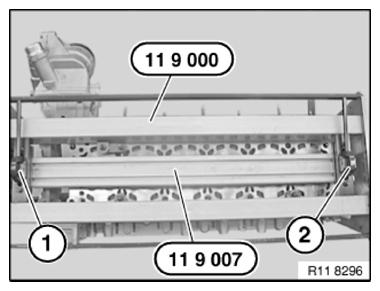

Position special tool 11 9 007 on cylinder head.

Push locks (1 and 2) toward inside and preload via eccentric shaft.

Courtesy of BMW OF NORTH AMERICA, INC.

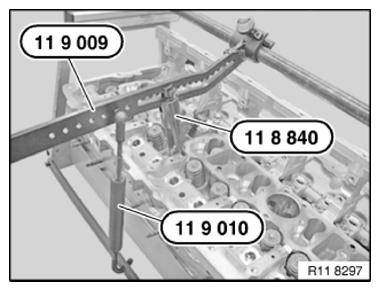

Press down intake valve  with special tool 11 8 840.

Courtesy of BMW OF NORTH AMERICA, INC.

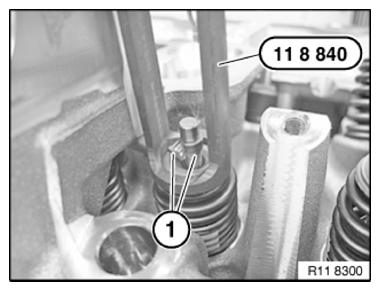

Remove valve key (1) with a magnet.

Remove valve spring with spring cups.

If individual components are to be reused, they must be placed in neat order in special tool 11 4 481.

Courtesy of BMW OF NORTH AMERICA, INC.

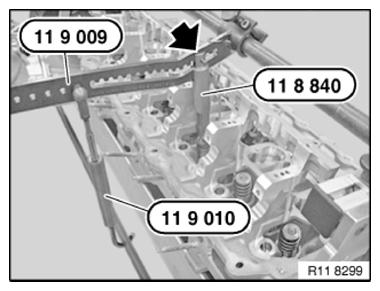

Press down exhaust valve  with special tool 11 8 840.

Courtesy of BMW OF NORTH AMERICA, INC.

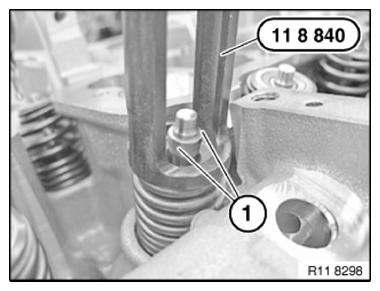

Remove valve key (1) with a magnet.

Remove valve spring with spring cups.

If individual components are to be reused, they must be placed in neat order in special tool 11 4 482.

Courtesy of BMW OF NORTH AMERICA, INC.

Valve springs are marked in color (1).

Colors for intake valves:

• Green/blue
• Yellow/Blue

Colors for discharge valves:

• Green/white
• Yellow/white

Install the valve spring so that the larger diameter points to the lower spring cup.

Courtesy of BMW OF NORTH AMERICA, INC.

Arrangement:

1. Valve
2. Valve stem seal with lower spring cup
3. Valve spring
4. Upper spring cup
5. Valve keys

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check function of DME.
