Removing and installing both deflecting elements for the drive belt (S55 engine)

Necessary preliminary work:

• Remove DRIVE BELT FOR ALTERNATOR .

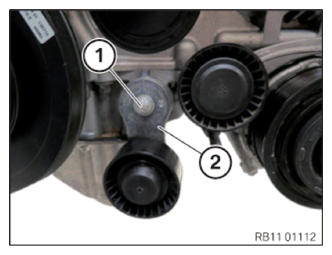

Deflecting element with holder at the lower section of the crankcase

Release screws (1).

Tightening torque: 11 28 4AZ .

Remove the deflecting element with holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

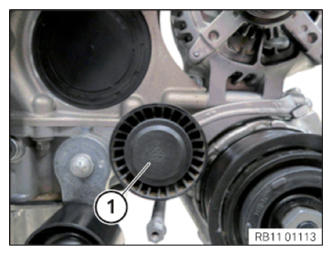

Deflecting element to air conditioning compressor holder

Use a suitable tool to release the protective cap (1).

Courtesy of BMW OF NORTH AMERICA, INC.

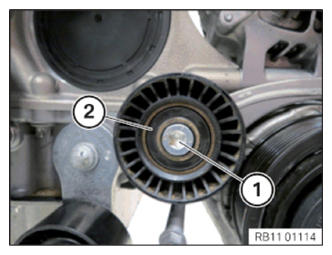

Deflecting element to air conditioning compressor holder

Release screw (1).

Tightening torque: 11 28 5AZ .

Remove deflecting element (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
