Removing and installing/replace catalytic converter for cylinders 4-6 (S55 engine)

Only perform this repair work on an engine that has cooled down.

Necessary preliminary work:

• Remove OXYGEN SENSOR , cylinders 4-6
• Remove MONITORING SENSOR , cylinders 4-6
• Remove STIFFENING PLATE .
• Remove EXHAUST SYSTEM .

Removal:

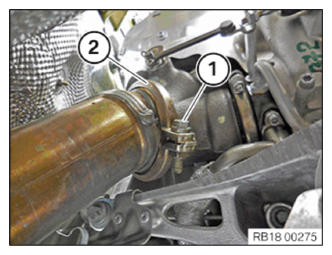

Release screw (1).

Remove the clamp (2).

Courtesy of BMW OF NORTH AMERICA, INC.

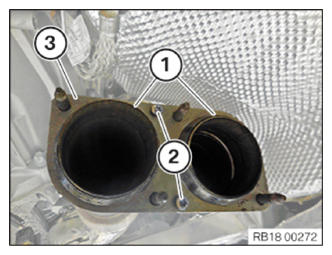

Secure the catalytic converter to prevent falling. Remove seals (1).

Unfasten screws (2).

Remove the flange plate (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation for installation:

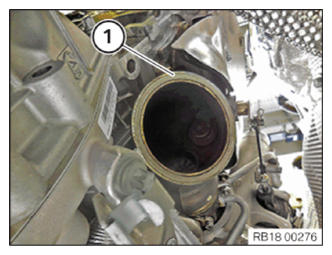

Replace the gasket (1) on the exhaust turbocharger.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install the catalytic converter.

Install the flange plate (3).

Parts  : Replace the gaskets and screws.

Tighten down screws (2).

Tightening torque 18 31 1AZ .

Install the gaskets (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Parts  : Replace the screw and clamp.

Install the clamp (2).

Tighten screw (1).

Tightening torque 18 31 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install OXYGEN SENSOR , cylinders 4-6
• Install MONITORING SENSOR , cylinders 4-6
• Install STIFFENING PLATE .
• Install EXHAUST SYSTEM .
• Check exhaust system for leaks
