Replacing rear silencer (S55 engine)

WARNING: Risk of burning!

Only perform this repair work after engine has cooled down.

Danger of injury!

Call on the assistance of a second person to remove the rear silencer.

Necessary preliminary work:

Support rear silencer with a suitable jack and secure against falling down.

Removal:

Courtesy of BMW OF NORTH AMERICA, INC.

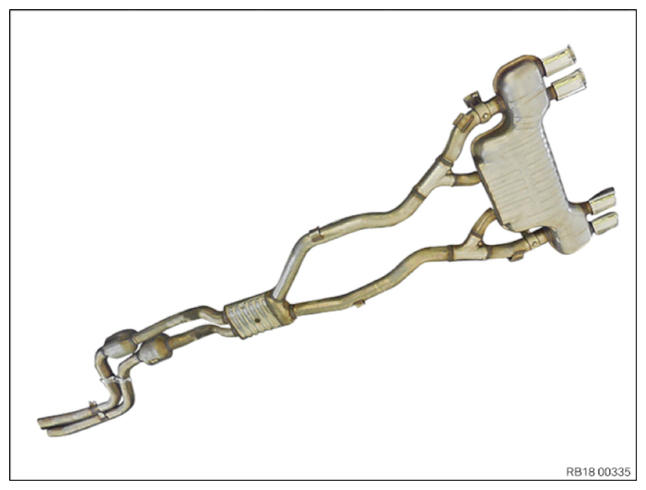

NOTE: If the separation point line is not marked by a punch mark in the pipe, determine the separation point by means of the pipe length on the new rear silencer.

Carry over separation point to faulty rear silencer and mark.

Secure rear silencer against falling off.

Cut through exhaust pipes at marked point with a suitable tool.

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screw (1).

Remove nut (2) from rear axle support at rear right.

Remove nut (1) from rear axle support at rear left.

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and detach connector (1) from controller drive for left exhaust flap.

Slacken nut (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and detach connector (1) from controller drive for right exhaust flap.

Slacken nut (2).

Lower the rear silencer with the assistance of another person and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation for installation:

Check rubber mount for damage, replace if necessary.

Installation:

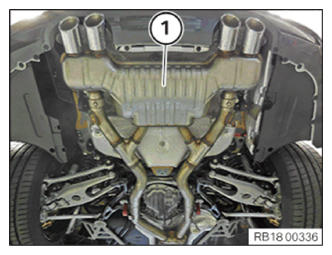

Install rear silencer (1) with aid of second person.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nut (2).

Tightening torque 18 20 3AZ .

Connect and lock connector (1) for controller drive for right exhaust flap.

Connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nut (2).

Tightening torque 18 20 3AZ .

Connect and lock connector (1) for controller drive for left exhaust flap.

Connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nut (1) on rear axle support at rear left.

Tightening torque 18 20 4AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nut (2) on rear axle support at rear right.

Tightening torque 18 20 4AZ .

Tighten screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

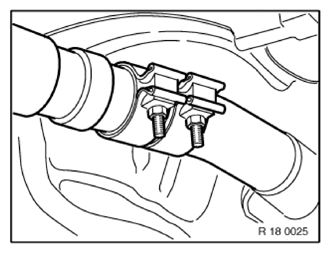

Adjust new rear silencer and connect by clamp to center silencer.

Center clamp and tighten down.

Tightening torque 18 31 35AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: It is mandatory to replace the exhaust covers after removal. The correct stop on the exhaust system can no longer be guaranteed after removal.

Schematic diagram is for example purposes. Some parts may differ in certain details.

Replace the exhaust covers (1).

Parts: Exhaust cover

Correctly position and align the exhaust covers (1) on the exhaust system.

With increased effort, slide the exhaust covers (1) onto the exhaust system up to the limit position.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Check exhaust system for leaks.
