Adjusting Tailgate (M4 Convertible)

Read contents of BODY, GENERAL .

For stripping and rigging operations, refer to texts on KSD CD (job number 41 62 014).

NOTE: Following components must be correctly fitted and adjusted:

SOFT TOP COMPARTMENT LID .

The Gap Dimensions (See BODY DIMENSIONS ) serve as the basis for adjusting procedure.

Make unpainted surfaces visible by also moving the hinges. Touch these up in the appropriate color.

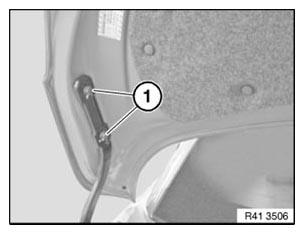

Slacken screws (1) on rear lid hinge to tailgate until the tailgate can still just be moved.

Adjust height and length of tailgate.

Re-tighten all screws.

Tightening torque 41 62 TAILGATE .

NOTE: If a side adjustment is necessary, it is essential first to check the adjustment of the soft top compartment lid; make the adjustment if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Only then perform side adjustment with spacer plates on the tailgate hinge.

Adjust Tailgate Lock; See ADJUSTING REAR LID LOCK (M4 CONVERTIBLE) .

Adjust Stop Pad; See ADJUSTING/REPLACING BUMP STOPS (M4 CONVERTIBLE) .
