Adjusting Soft Top Compartment Lid (M4 Convertible)

Read contents of BODY, GENERAL .

The Gap Dimensions (See BODY DIMENSIONS ) serve as the basis for adjustment work.

Necessary preliminary tasks:

Connect battery charger.

NOTE: Carry out setting first in the height, then in longitudinal direction and then to the side.

The work sequence starts with closed soft top.

Height setting:

Open rear module.

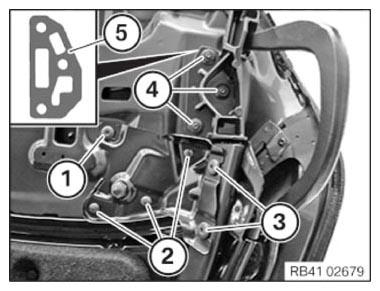

Slacken nuts and screws (1) - (3) and remove reinforcement.

IMPORTANT: Secure soft top compartment lid against falling out.

Pay attention to space plates (5) between soft top compartment lid and rear module.

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nuts (4). Adjust soft top compartment lid with space plates (5).

Tighten down nuts (4). Tightening torque 41 63 SOFT TOP COMPARTMENT LID .

Build reinforcement and install free of stress. Tighten screws and nuts (1) - (3). Tightening torque 41 63 SOFT TOP COMPARTMENT LID .

NOTE: Pay attention to voltage free installation of reinforcement. The reinforcement must be lie evenly on the soft top compartment lid and on the rear module.

Setting in longitudinal direction and to the side:

Close rear module.

IMPORTANT: Graphic and description on open soft top compartment lid for better overview.

Setting in longitudinal direction and to the side is however done from the luggage compartment when the soft top compartment lid is closed.

Courtesy of BMW OF NORTH AMERICA, INC.

Open tailgate.

Slacken screws and nuts (1) to (3).

Slacken nuts (4).

Adjust soft top compartment lid in longitudinal direction and to the side.

Tighten down nuts (4). Tightening torque 41 63 SOFT TOP COMPARTMENT LID .

Install reinforcement free of voltage. Tighten screws and nuts (1) to (3). Tightening torque 41 63 SOFT TOP COMPARTMENT LID .

NOTE: Pay attention to voltage free installation of reinforcement. The reinforcement must be lie evenly on the soft top compartment lid and on the rear module.
