Replacing Tail Panel (M4 Coupe)

Read contents of BODY, GENERAL .

STRIP DOWN  vehicle.

Procedure OBSERVE  repair stage 2!

Following new body parts are required (see applicable BMW Parts Catalog):

• (1) Rear trim panel

Following CONSUMABLES  are required:

Courtesy of BMW OF NORTH AMERICA, INC.

Material	Quantity
Adhesive K5b	1
Blind rivets N3	20
Punch rivets N4	8
Punch rivets N5	8
EMC screws	6
Cleaning agent R1	1
Sealant D1	Cavity wax remover

Removing rear trim panel

Operation is partially described on the left side.

Right side identical.

Courtesy of BMW OF NORTH AMERICA, INC.

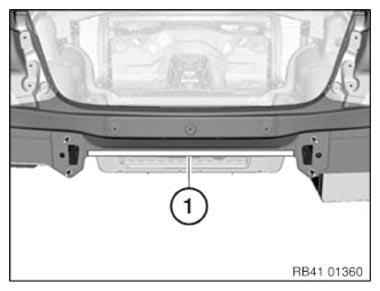

Open welded connections in area (1).

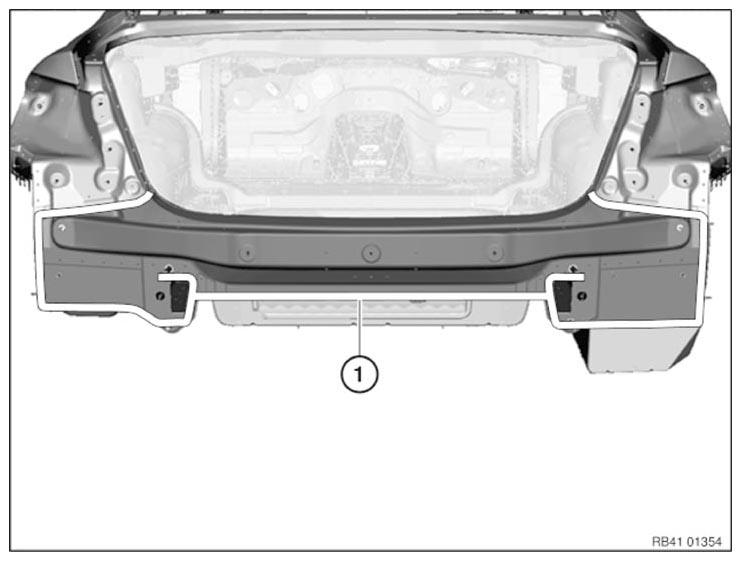

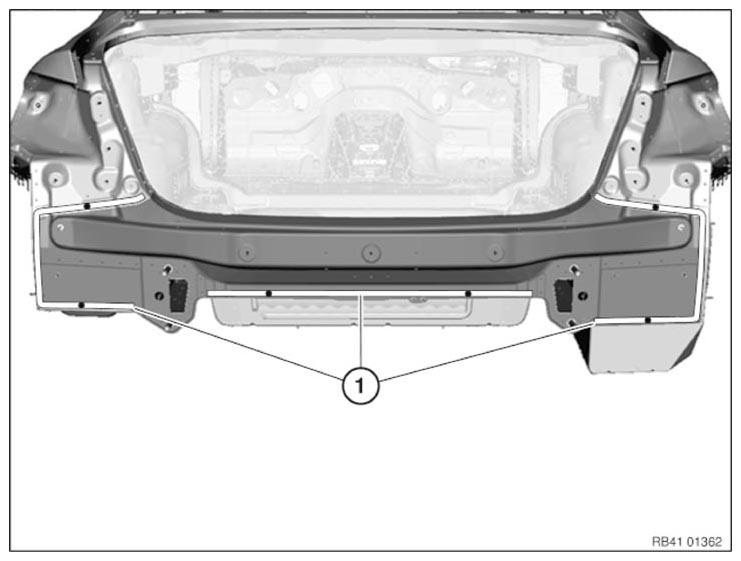

Release the welded connections in areas (1) and remove the tail panel.

Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

Operation is partially described on the left side.

Right side identical.

Courtesy of BMW OF NORTH AMERICA, INC.

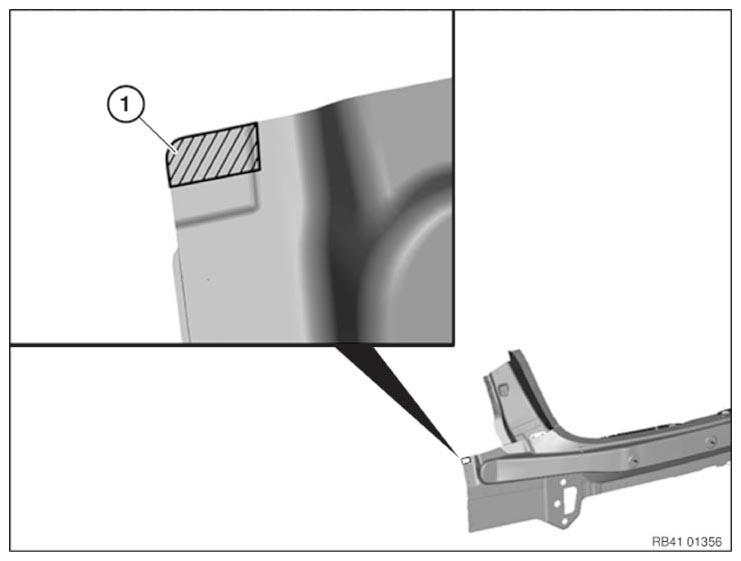

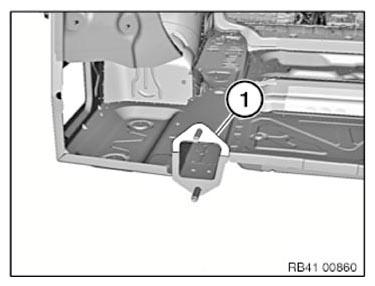

Mark area (1) in accordance with dimensions approx. 15 x 20 mm and cut.

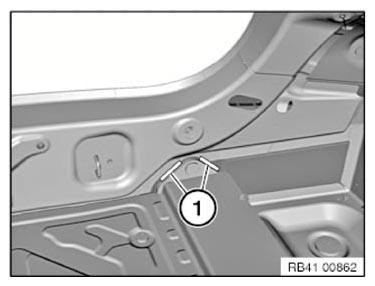

The bore holes (1) can be enlarged slightly if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

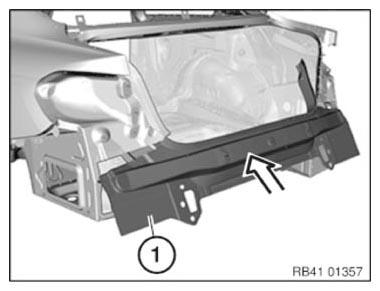

Slide in rear trim panel (1) from bottom upwards. Adjust rear trim panel in combination with rear lid and rear lights to fit and secure.

Courtesy of BMW OF NORTH AMERICA, INC.

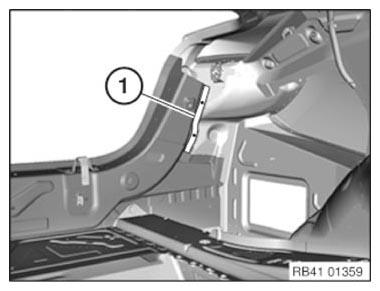

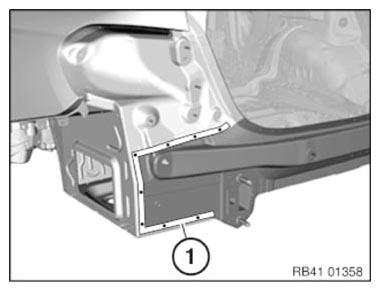

Set 8 4.2 mm dia. bore holes for blind rivets in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

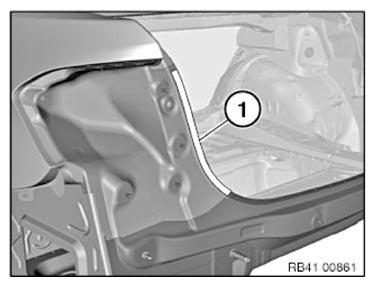

Set two 4.2 mm diameter bore holes for blind rivets in area (1).

Installation note:

When installing, insert the blind rivets from the outside to the inside.

Courtesy of BMW OF NORTH AMERICA, INC.

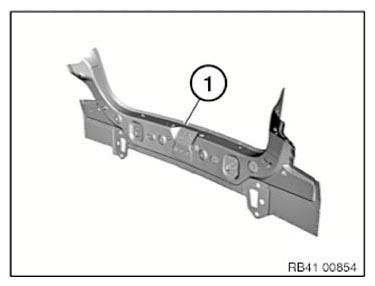

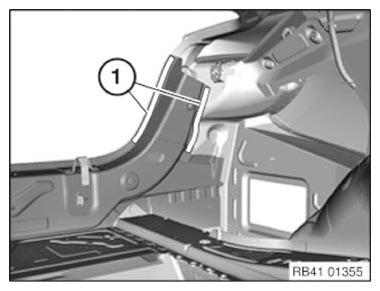

On both vehicle sides, prepare areas (1) for MAG welding.

Remove new part and deburr holes.

Courtesy of BMW OF NORTH AMERICA, INC.

Installing rear trim panel

Clean all  bonding surfaces on new part and on vehicle with cleaning agent R1.

Apply adhesive to bonding surfaces.

Do not apply adhesive on either vehicle side in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Mount rear trim panel (1) and secure with blind rivets.

When inserting new parts, make sure there is sufficient adhesive on bonding surfaces.

Courtesy of BMW OF NORTH AMERICA, INC.

In area (1), use 8 punch rivets N5 from both sides.

Courtesy of BMW OF NORTH AMERICA, INC.

In area (1) set 4 punch rivets N4.

Courtesy of BMW OF NORTH AMERICA, INC.

Press rear trim panel in areas (1) and remove emerging adhesive.

Then install carrier for bumper panel to secure rear trim panel.

Do not use any cleaning agents containing solvents.

Courtesy of BMW OF NORTH AMERICA, INC.

On each vehicle side, introduce 2 MAG weld seams (1). Length approx. 20 mm.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

After hardening of the adhesive install 6 EMC SCREWS  in the areas (1).
