Stripping Operations - Replacing Tail Panel (M4 Coupe)
NOTE:
Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.
The following list basically represents the removal sequence.
- Remove battery (FR number: 61 21 010)
- Remove bumper trim (FR number: 51 121 56)
- Remove bumper carrier (FR number: 51 12 050)
- Remove guide for rear bumper in the center (job number: 51 12 825)
- Remove guide for rear left and right bumper (job number: 51 12 828)
- Remove both rear lights (job number: 63 21 180)
- Remove luggage compartment floor trim panel
- Upper tail panel trim (FR number: 51 46 050)
- Remove and install tailgate striker (FR number: 51 24 130)
- Remove left luggage compartment wheel arch panel (FR number: 51 47 151)
- Remove right luggage compartment wheel arch panel (FR number: 51 47 161)
- Lower rear silencer
- Remove heat shields
- Partially detach tailgate seal

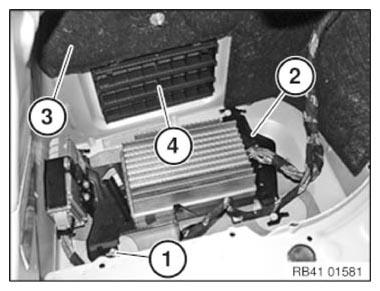

Release nut (1) and remove upholstery (2).

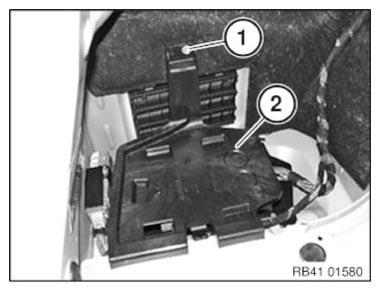

Release nut (1) and lay holder (2) with control unit to one side.
Partially release the insulating mat (3) and tie to one side.
Release latch mechanisms and remove rear ventilation (4).
Installation note:
The rear ventilation must not be damaged! (watertightness).
All latch mechanisms must engage audibly.

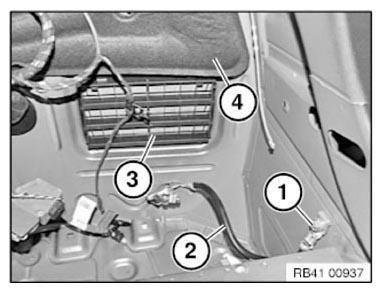

Release nut (1) and remove battery earth lead (2).
Tightening torque 61 21 BATTERY WITH HOLDER .
Release latch mechanisms and remove rear ventilation (3).
Partially release the insulating mat (4) and tie to one side.
