Replacing Tail Panel (M4 Convertible)

Read contents of BODY, GENERAL .

Procedure OBSERVE  repair stage 2!

STRIP DOWN  vehicle.

Following new body parts are required (see applicable BMW Parts Catalog):

• (1) Rear trim panel

Courtesy of BMW OF NORTH AMERICA, INC.

Following CONSUMABLES  are required:

Material	Quantity
Adhesive K5b	1
Cleaning agent R1	1
Blind rivet N3	22
Punch rivet N5	18
EMC screw	9
Sealant D1
Cavity wax remover

Removal:

Operation is partially described on the left side. Right side identical.

Courtesy of BMW OF NORTH AMERICA, INC.

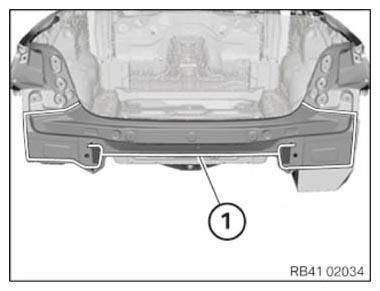

Open welded connections in area (1).

Release the welded connections in areas (1) and remove the tail panel.

Courtesy of BMW OF NORTH AMERICA, INC.

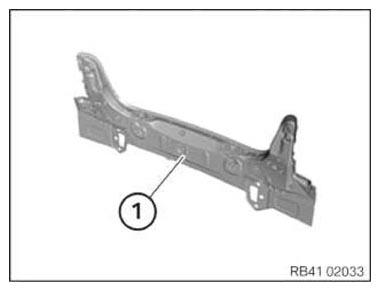

Preparation of new part:

Courtesy of BMW OF NORTH AMERICA, INC.

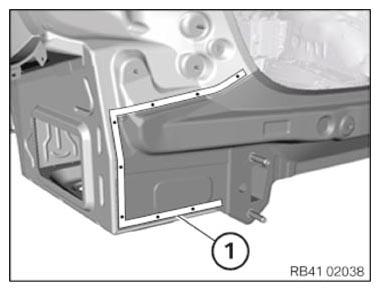

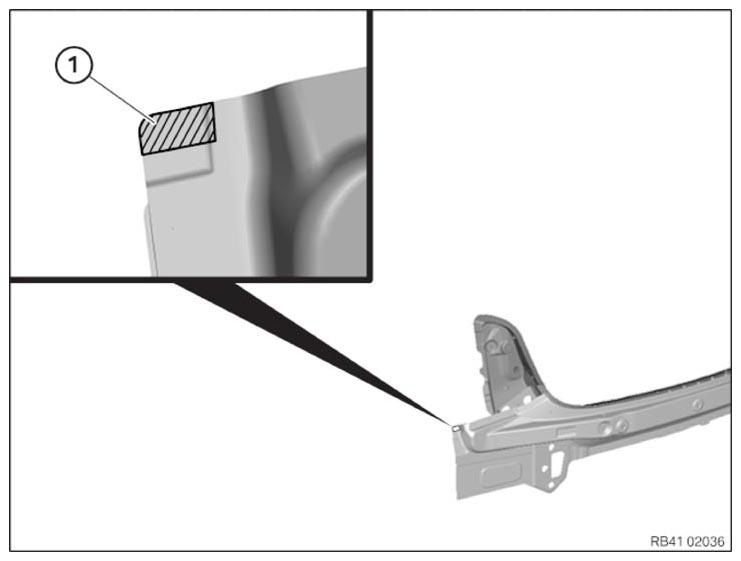

Mark area (1) in accordance with dimensions approx. 15 x 20 mm and cut.

The bore holes (1) can be enlarged slightly if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

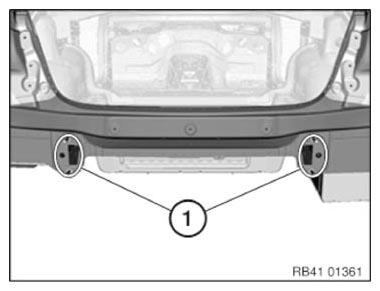

Slide in rear trim panel upwards from below. Adjust in combination with tailgate and rear lights to fit and secure.

Courtesy of BMW OF NORTH AMERICA, INC.

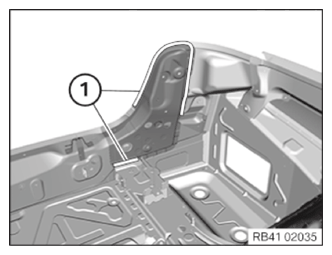

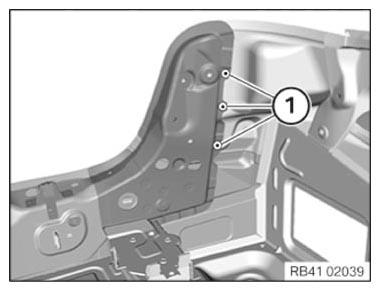

In area (1), set eight 4.2 mm bore holes for blind rivets.

Courtesy of BMW OF NORTH AMERICA, INC.

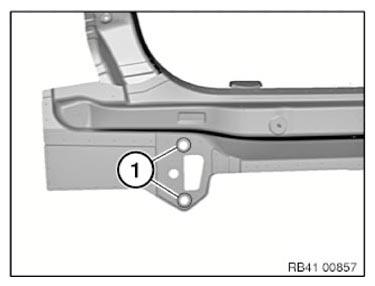

In area (1), set 3 ø 4.2 mm holes for blind rivets.

Installation note:

When installing, insert the blind rivets from the outside to the inside.

Courtesy of BMW OF NORTH AMERICA, INC.

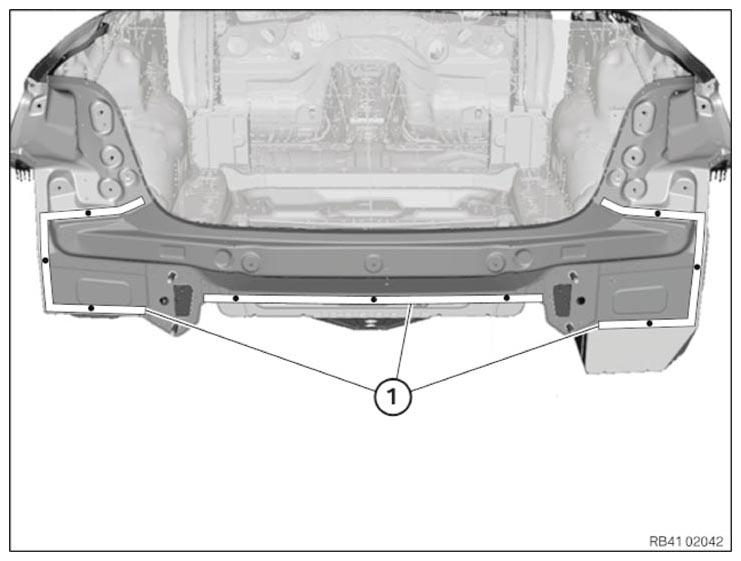

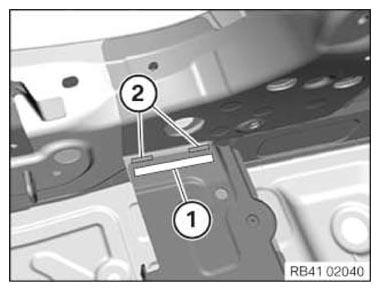

On both vehicle sides, prepare areas (1) for plug-welding.

Additionally prepare areas (2) for MAG welding. Length of weld seams 20 mm.

Remove new part and deburr holes.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean bonding surfaces with cleaning agent R1.

Apply adhesive to bonding surfaces.

Courtesy of BMW OF NORTH AMERICA, INC.

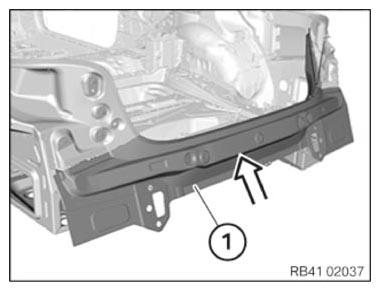

Fit rear trim panel.

When installing new parts, make sure there is sufficient adhesive on bonding surfaces.

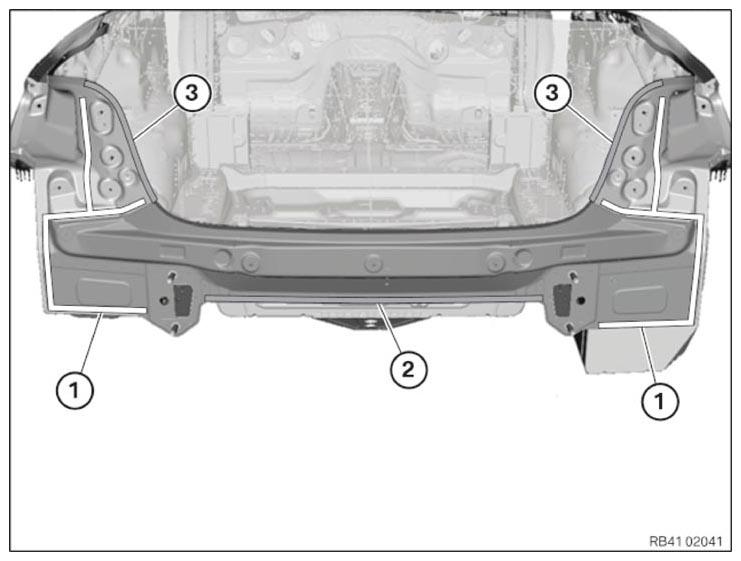

Rivet rear trim panel in areas (1) with blind rivets.

Use N5 punch rivets in areas (2) and (3).

In area (2), set punch rivets alternately from both sides.

Area	Number
2	8
3	5

Weld areas (1) and (2) as per new part preparation.

Courtesy of BMW OF NORTH AMERICA, INC.

Press rear trim panel in areas (1) and remove emerging adhesive.

Then install carrier for bumper panel to secure rear trim panel.

Do not use any cleaning agents containing solvents.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

After hardening of the adhesive install 9 EMC SCREWS  in the areas shown.
