Replacing soft top compartment lid gasket (M4 Convertible)

Attention!

To prevent water ingress, removed gaskets may not be reused.

Connect BATTERY CHARGER .

Open the rear module (see illustration).

Courtesy of BMW OF NORTH AMERICA, INC.

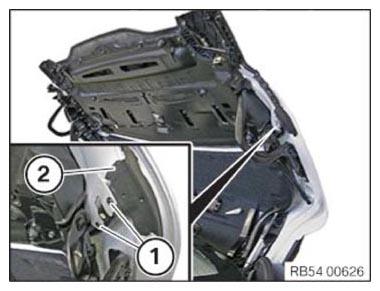

Release left and right screws (1).

Release gasket from butyl (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Remove any remnants of butyl entirely.

Apply new butyl dia. 4 mm.

Courtesy of BMW OF NORTH AMERICA, INC.

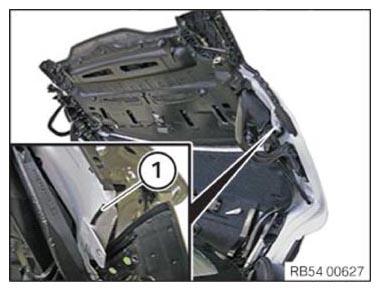

Open tailgate at emergency release.

Pull off gasket (1) from left to right.

Installation note:

Do not stretch, kink, or crush gasket (1)!

Coat gasket (1) with soapy water.

Perform installation from left to right (check bolting points).

Courtesy of BMW OF NORTH AMERICA, INC.
