Replacing butyl at seal, roof shell center left or right (M4 Convertible)

Special tools required:

00 9 321

Installation note:

Screws with sealing compound must be replaced and must not be reused
Thread of nut must be cleaned beforehand

New parts required:

Butyl rope dia. 4 mm, BMW part number 83 22 2 159 535
Butyl rope dia. 7 mm, BMW part number 83 19 0 416 659

Removing the seal:

Move soft top into position shown.

Tape off seal, roof shell center, with adhesive tape.

Courtesy of BMW OF NORTH AMERICA, INC.

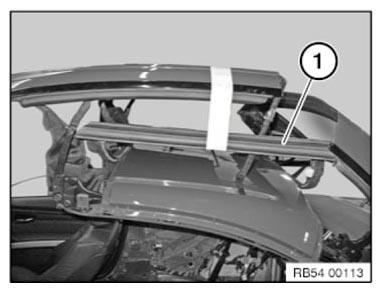

Move soft top into position shown.

Courtesy of BMW OF NORTH AMERICA, INC.

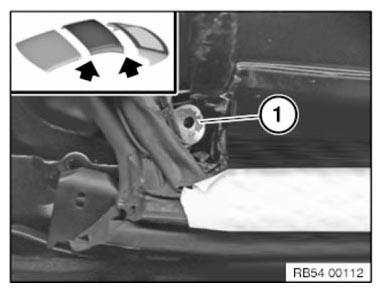

Release screw (1) at rear left.

Courtesy of BMW OF NORTH AMERICA, INC.

Move soft top into SERVICE POSITION .

Detach headliner (1) at side with fishbone 00 9 321.

Installation note:

Retainers must not be damaged and must be pre-installed on headliner.

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 54 37 01AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Heat seal to approx. 60°C with hot air blower.

Detach outer third of seal (1) at front and rear with fishbone 00 9 321.

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

Risk of damage!

Tape off sheet metal tab (1) at front and rear with adhesive tape.

Pull seal off roof panel.

Remove BUTYL from seal and roof shell.

Courtesy of BMW OF NORTH AMERICA, INC.

For better accessibility, affix seal (1) to front roof shell with adhesive tape.

Courtesy of BMW OF NORTH AMERICA, INC.

On-the-job safety:

Comply with the relevant safety regulations

Clean adhesive area with adhesive remover.

Air drying time: ≥ 1 minute

Attention!

Adhesive area must be dry and free from dust and grease.

Prepare butyl rope dia. 4 mm, 50 mm long.

Affix butyl rope (1), starting at threaded bush. Completely close gap with butyl rope.

Courtesy of BMW OF NORTH AMERICA, INC.

Prepare butyl rope dia. 4 mm.

Prepare butyl rope dia. 7 mm, 200 mm long.

Affix butyl rope dia. 4 mm at area (1) along entire length of roof shell.

Affix butyl rope dia. 7 mm at area (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Prepare butyl rope dia. 4 mm, 70 mm long.

Affix butyl rope in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Prepare butyl rope dia. 4 mm, 50 mm long.

Affix butyl rope (1), starting at threaded bush. Completely close gap with butyl rope.

Courtesy of BMW OF NORTH AMERICA, INC.

Prepare butyl rope dia. 7 mm, 120 mm long.

Affix butyl rope (1) at radius.

Courtesy of BMW OF NORTH AMERICA, INC.

Prepare butyl rope dia. 4 mm, 70 mm long.

Affix butyl rope (1) and cut off excess butyl.

Courtesy of BMW OF NORTH AMERICA, INC.

Prepare butyl rope dia. 4 mm.

Affix butyl rope (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Prepare butyl rope dia. 7 mm, 500 mm long.

Affix butyl rope in area (1) and cut off excess butyl. Make sure butyl rope (1) is correctly positioned in radius of roof shell (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

Risk of leak.

Connect and smooth all butt joins of butyl ropes.

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the seal:

A second person will be needed to help install the seal.

Attention!

Risk of damage!

Remove adhesive tape from sheet metal tab (1) at front and rear.

Set seal in place at front and rear and adjust it sideways to correct position. Ensure that gasket is correctly seated.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove support and close roof.

Loosely install new screws.

Align seal flush at front and rear and tighten screws to secure. Check GAP DIMENSIONS .

Tightening torque 54 37 01AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screw (1) at rear left.

Tightening torque 54 37 01AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Checks:

Check seal for butyl squeeze-out. If possible, allow vehicle to stand for several hours with closed roof. Repeat test.
If squeezed out, REMOVE BUTYL .
Check that screws are secure. Make sure there is no gap between screw head and seal.
Carry out leak test. Secure hose to roof and allow water to run over the area in question for 20 minutes.
