Removing and installing/replacing cover from soft top compartment lid (M4 Convertible)

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary tasks:

• Connect BATTERY CHARGER .
• Remove LINKAGE OUTLET FLAP  on the left and right

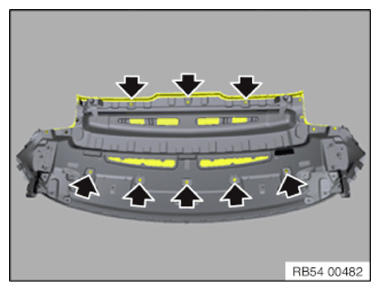

Release marked nuts and remove cover.

Tightening torque 54 37 27AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

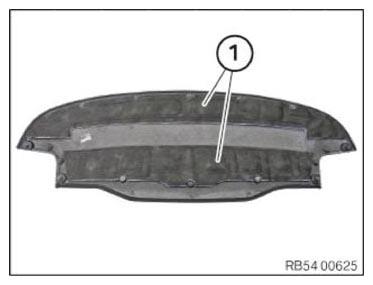

Ensure the sound insulation (1) is correctly seated.

Courtesy of BMW OF NORTH AMERICA, INC.
