Removing and installing rear module (M4 Convertible)

Special tools required:

2 360 048
54 0 240
54 0 180
00 9 450

Necessary preliminary work:

Connect BATTERY CHARGER .
Remove COVER FROM TAIL PANEL .
Remove luggage compartment trim panel on side panel on left and right. Refer to REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT TRIM PANEL ON SIDE PANEL, LEFT and REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT TRIM PANEL ON SIDE WALL, RIGHT .
Remove TRIM ON SUPPORT TUBE on left and right
Remove TRIM PANEL FOR REAR LUGGAGE COMPARTMENT .

Installation note:

Microencapsulated screws (Loctite) must be replaced and may not be reused
Screw connection must be completed within 20 min. (start of hardening)
Microencapsulated screws must not be retightened
Thread of nut must be cleaned beforehand in event of repeated use

Open soft top compartment cover.

Open tailgate at the emergency release.

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

Convertible top compartment lid can tilt forwards when hydraulic cylinders are removed and must be supported with suitable apparatus.

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on left and right.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To secure the installation position of the rear kinematics to each other, use the special tool 2 360 048 D.

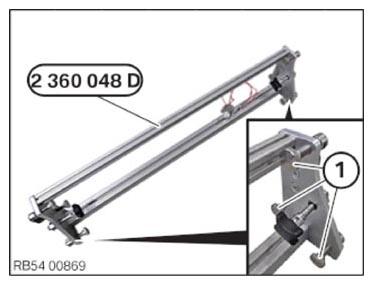

Fully turn back all knurled screw (1) on the special tool 2 360 048 D.

Courtesy of BMW OF NORTH AMERICA, INC.

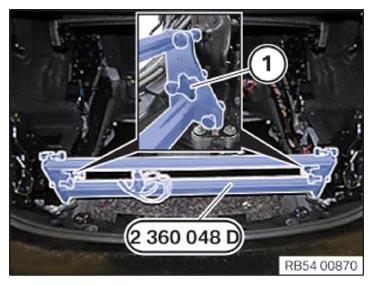

Insert the special tool 2 360 048 D between the rear kinematics on the left and right.

Turn the screw (1) left and right by approx. 2 turns.

Courtesy of BMW OF NORTH AMERICA, INC.

Center special tool 2 360 048 D.

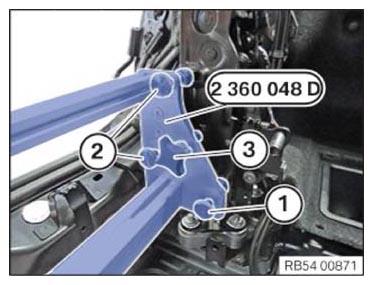

Turn in the screw (1) with the fitting sleeves on left and right into the rear kinematics evenly and tighten down.

Turn in the screws (2) on left and right until they are in contact with the rear kinematics.

Tighten the screws (3) on the left and right.

Courtesy of BMW OF NORTH AMERICA, INC.

Right side:

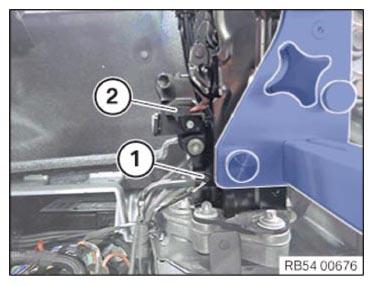

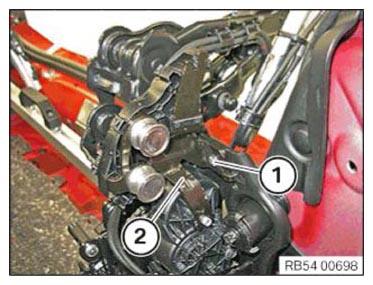

Unlock plug connection (1) for the hall effect sensor (2) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

Right side (variant 1):

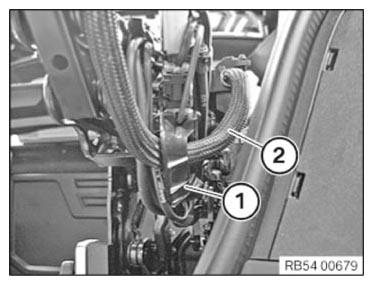

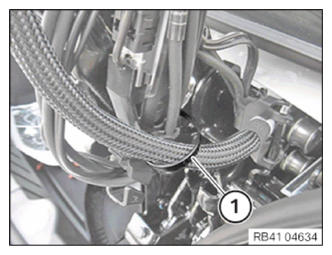

Open cable routing (1) and detach wiring harness (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Right side (variant 2):

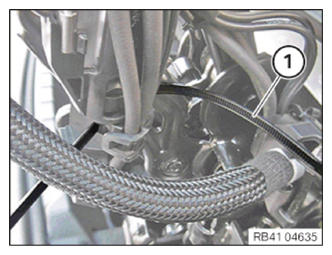

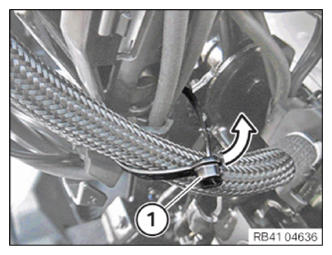

Disconnect and remove cable strap (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Right side:

Pull off plug connection (1) towards bottom.

Unfasten cable strap (2).

Feed out cable towards rear.

Courtesy of BMW OF NORTH AMERICA, INC.

Right side:

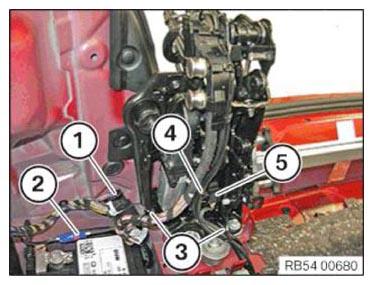

Release holder (1) from body, do not disconnect associated plug connections.

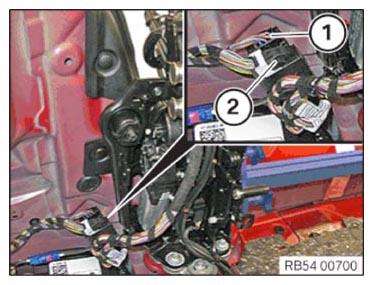

Unlock and disconnect plug connections (2 and 5).

Unfasten cable clip (3).

Release cable strap (4).

Courtesy of BMW OF NORTH AMERICA, INC.

Right side:

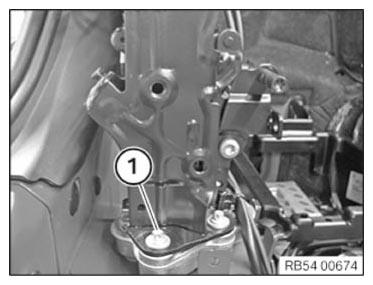

Release screw (1) from outside.

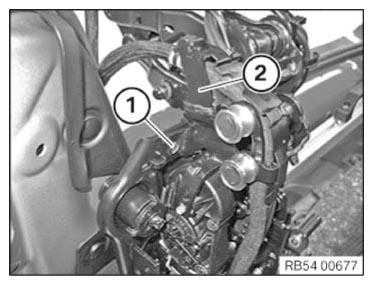

Detach holder (2) towards top.

Courtesy of BMW OF NORTH AMERICA, INC.

Right side:

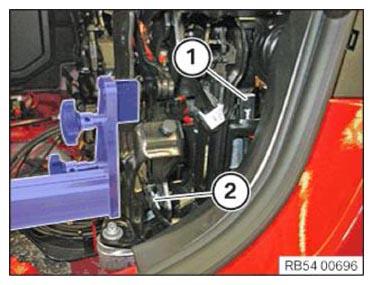

Unclip cable clip (1) from holder (2) towards top.

Feed out wiring harness (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Right side:

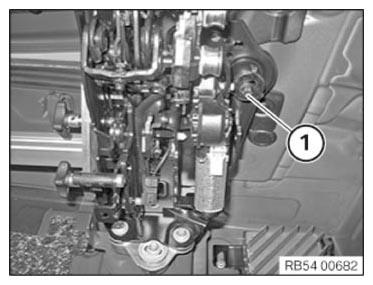

Release screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Right side:

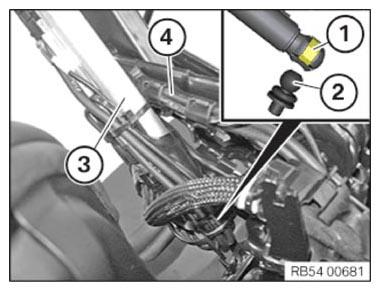

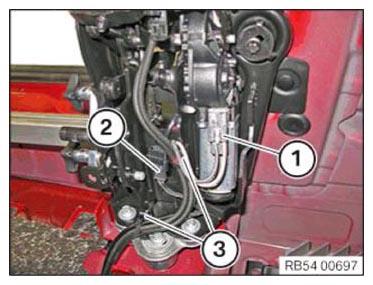

Slightly raise retaining clip (1) and detach hydraulic cylinder (3) from ball head (2).

Unclip cable tie (4).

Feed out hydraulic cylinder (3) with the wiring harness and the hydraulic lines and set down in the luggage compartment.

Courtesy of BMW OF NORTH AMERICA, INC.

Left side:

Pull off plug connection (1) towards bottom.

Detach and disconnect plug connection (2).

Unfasten cable clip (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Left side:

Release screw (1) from outside.

Detach holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Left side:

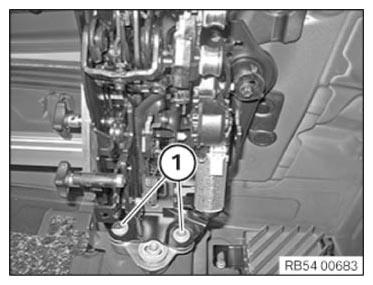

Release screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Left side:

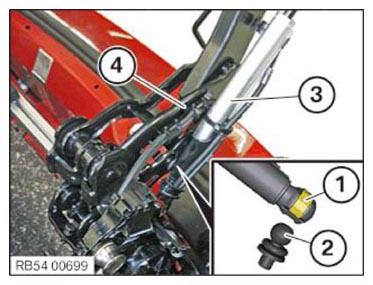

Slightly raise retaining clip (1) and detach hydraulic cylinder (3) from ball head (2).

Unclip cable tie (4).

Feed out hydraulic cylinder (3) with the wiring harness and the hydraulic lines and set down in the luggage compartment.

Courtesy of BMW OF NORTH AMERICA, INC.

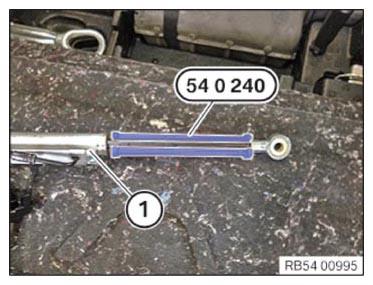

Clip the special tool 54 0 240 onto hydraulic cylinder (1) on left and right for protection.

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully close the tailgate until the soft-close automatic closes.

First unlock and disconnect plug connection (1) without locking bracket.

NOTE: When the Automatic Soft Close system of the tailgate opens, close the plug connections again and change the disconnection order.

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect plug connections (2) with locking bracket.

Release left and right screws (1).

NOTE: Do not adjust barrel screws.

Only when replacing rear module/rear trim panel:

Bring barrel screws into contact with special tool 54 0 180 in conjunction with special tool 00 9 450.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Before removing, mark position of screws (1) to ensure correct alignment during installation.

Do not release screws.

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

Risk of damage!

Proceed with the greatest caution when carrying out the following work.

Three helpers are essential for the following work.

Generously cover bumper area (loading edge) with protective covers (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

Rear module sinks if incorrectly supported. Risk of damage!

Position a helper on both the left and right sides of the rear module.

Grip rear module with two hands on rear module kinematics and hold supporting in Z-direction.

NOTE: Console is double-jointed and bends.

Courtesy of BMW OF NORTH AMERICA, INC.

Working with an assistance, release screws (1) on left and right at the same time from the bearing support.

Lift out rear module.

Set down rear module on a suitable support.

Attention!

Do not damage any surrounding parts.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Courtesy of BMW OF NORTH AMERICA, INC.

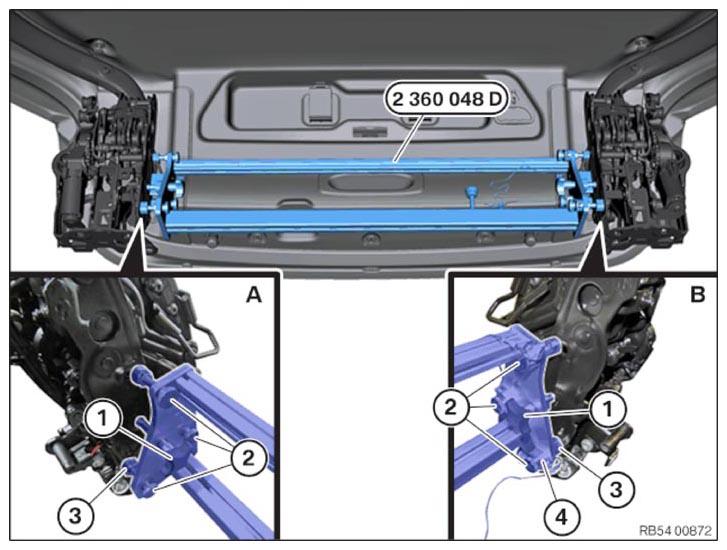

NOTE: If the special tool 2 360 048 D is removed for repair work, it will need to be inserted before installing the rear module.

The special tool is adjusted to ensure the rear kinematics is at the specification.

Loosely screw on special tool to rear kinematics left and right with bolt (1).

Right side (A):

Screw bolts (2) to block at special tool.

Make sure the dowel pin (3) in the rear kinematics is in the correct position.

Tighten screw (1).

Left side (B):

Fasten screws (2) with spacer (4) to block on the special tool.

Make sure the dowel pin (3) in the rear kinematics is in the correct position.

Tighten screw (1).

Attention!

Rear module sinks if incorrectly supported. Risk of damage!

Position a helper on both the left and right sides of the rear module.

Grip rear module with two hands on rear module kinematics and hold supporting in Z-direction.

NOTE: Console is double-jointed and bends.

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

Do not damage any surrounding parts.

Insert rear module.

With one person each on the left and right, simultaneously tighten screws (1) at the marks.

Tightening torque 54 37 19AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

Convertible top compartment lid can tilt forwards when hydraulic cylinders are removed and must be supported with suitable apparatus.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws (1) on left and right.

Tightening torque 54 37 19AZ .

NOTE: Do not adjust barrel screws.

Replacement only:

Bring barrel screws into contact with special tool 54 0 180 in conjunction with special tool 00 9 450.

Tightening torque 54 37 22AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connectors (1 and 2).

Open tailgate at the emergency release.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove special tool 54 0 240 on left and right from hydraulic cylinder (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Left side:

Slide retaining clip (1) to the correct position on the hydraulic cylinder (3).

Feed out hydraulic cylinder (3) with the wiring harness and the hydraulic lines.

Clip on the hydraulic cylinder (3) onto the ball head (2).

Clip in cable clip (4).

Courtesy of BMW OF NORTH AMERICA, INC.

Left side:

Tighten screw (1).

Tightening torque 54 37 31AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Left side:

Attach holder (2).

Tighten screw (1) from outside such that the holder (2) can still be moved.

Courtesy of BMW OF NORTH AMERICA, INC.

Left side:

Connect connectors (1 and 2).

Secure cable clip (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Right side:

Slide retaining clip (1) to the correct position on the hydraulic cylinder (3).

Feed out hydraulic cylinder (3) with the wiring harness and the hydraulic lines.

Clip on the hydraulic cylinder (3) onto the ball head (2).

Clip in cable clip (4).

Courtesy of BMW OF NORTH AMERICA, INC.

Right side:

Tighten screw (1).

Tightening torque 54 37 31AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Right side:

Feed in wiring harness (3).

Clip cable clip (1) onto holder from top (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Right side:

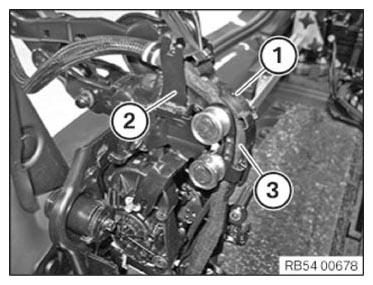

Attach holder (2).

Tighten screw (1) from outside such that the holder (2) can still be moved.

Courtesy of BMW OF NORTH AMERICA, INC.

Right side:

Fasten holder (1) on body.

Connect connectors (2 and 5).

Attach cable clip (3).

Attach cable strap (4).

Courtesy of BMW OF NORTH AMERICA, INC.

Right side:

Feed in cable from the rear.

Connect cable clip (2).

Connect the connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Right side (variant 1):

Attach wiring harness (2) in the cable routing (1).

Lock cable duct (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Right side (variant 2):

Prepare cable strap (part number 61 13 1 367 599) and a 35 mm long piece of adhesive tape.

On the cable strap (1) use adhesive tape to make a limit position (2) at a distance a.

Dimension a=115 mm

Courtesy of BMW OF NORTH AMERICA, INC.

Right side (variant 2):

Thread in cable strap (1) and tighten to the specified limit position.

Courtesy of BMW OF NORTH AMERICA, INC.

Right side (variant 2):

Turn the head (1) inwards.

The cable must be movable.

Courtesy of BMW OF NORTH AMERICA, INC.

Right side:

Connect connector (1) to hall effect sensor (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Turn back screws (1 to 3).

Remove special tool 2 360 048 D.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the screws (1) on the left and right.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove support.

Courtesy of BMW OF NORTH AMERICA, INC.

Open the soft top completely.

This process will automatically center the locking plate.

Tighten screw (1).

Tightening torque 54 37 30AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check GAP DIMENSIONS and adjust if necessary.

Carry out diagnosis.

Required follow-up work:

Disconnect BATTERY CHARGER
Install TRIM ON TAIL PANEL .
Install luggage compartment trim panel on side panel on left and right. Refer to REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT TRIM PANEL ON SIDE PANEL, LEFT and REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT TRIM PANEL ON SIDE WALL, RIGHT .
Install TRIM ON SUPPORT TUBE on left and right
Install TRIM PANEL FOR LUGGAGE COMPARTMENT at rear
