Lowering inner headlining for roof shell, middle (M4 Convertible)

Special tools required:

• 51 0 310

Necessary preliminary tasks:

• Connect BATTERY CHARGER .

Installation note:

• Microencapsulated screws (Loctite) must be replaced and may not  be reused
• Screw connection must be completed within 20 min. (start of hardening)
• Microencapsulated screws must not  be retightened
• Thread of nut must be cleaned beforehand in event of repeated use

Removal:

Move soft top into service position.

Move soft top so that angle of the hinges is not  ≤90°.

Support rear roof shell to soft top cover with suitable auxiliary materials.

Auxiliary materials must lie over wide area and over entire length.

Rear roof shell is supported by auxiliary materials on soft top cover.

Roof shells block each other.

Courtesy of BMW OF NORTH AMERICA, INC.

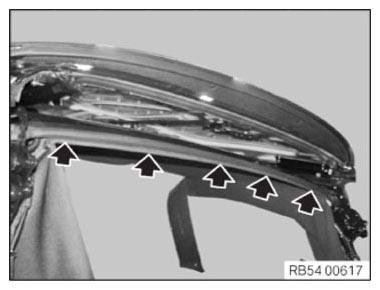

Step 1:

Release clamps (2) with screwdriver and pull roof liner (1) off roof panel.

Courtesy of BMW OF NORTH AMERICA, INC.

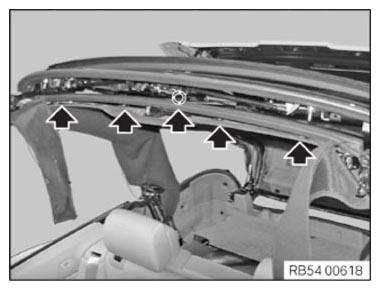

Step 2:

Unclip front inner headlining with special tool 51 0 310.

Unlock connector on interior light and unplug.

Courtesy of BMW OF NORTH AMERICA, INC.

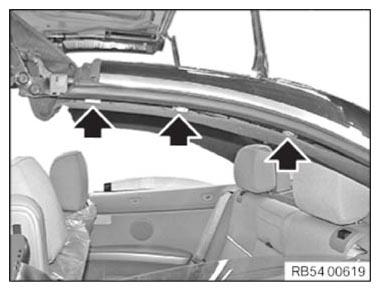

Step 3:

Unclip rear inner headlining with special tool 51 0 310.

Courtesy of BMW OF NORTH AMERICA, INC.

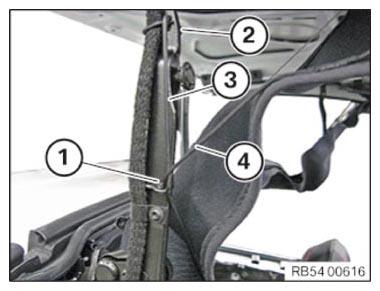

Step 4, left side:

Release lower screw (1) on guide loop (3).

Slacken upper screw (2) on guide loop (3).

Pull guide loop (2) towards rear and feed out tension cable (4).

Courtesy of BMW OF NORTH AMERICA, INC.

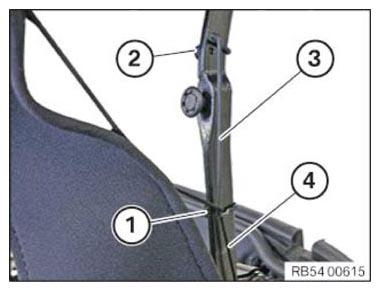

Step 4, right side:

Release lower screw (1) on guide loop (3).

Slacken upper screw (2) on guide loop (3).

Pull guide loop (3) towards rear and feed out tension cable (4).

Courtesy of BMW OF NORTH AMERICA, INC.

Step 5:

Pull tensioning strap fully out of automatic reel.

Fit a detachable safety knot on the left and right sides in the tensioning strap to prevent the tensioning strap from retracting (rolling up).

Unscrew nuts (1).

Remove automatic reel (2).

Courtesy of BMW OF NORTH AMERICA, INC.

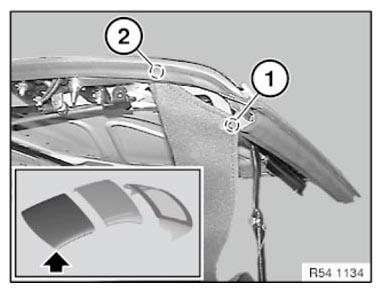

Step 6:

Release screws (1) and (2).

Courtesy of BMW OF NORTH AMERICA, INC.

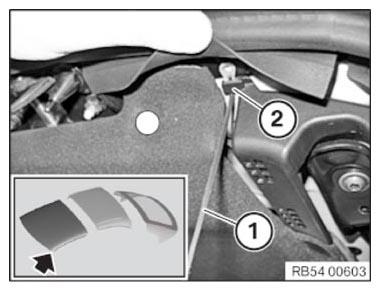

Step 7:

Feed tension cable (1) out of retaining lug (2).

Set down roofliner in downward direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Repeat steps 5 to 7 on right side of vehicle.

Installation:

Step 1:

Feed tension cable (2) into retaining lug (3).

Courtesy of BMW OF NORTH AMERICA, INC.

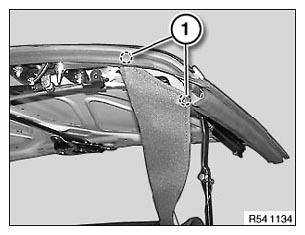

Step 2:

Tighten screws (1) and (2).

Tightening torque 54 37 14AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Step 3:

Install automatic reel (2).

Tighten down nuts (1).

Pull tensioning strap out of automatic reel and unfasten safety knot.

Courtesy of BMW OF NORTH AMERICA, INC.

Repeat steps 1 to 3 on right side of vehicle.

Step 4, left side:

Attach tension cable (4) in guide loop (3).

Secure guide loop (3) with screws (1 and 2).

Tightening torque 54 37 15AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Step 4, right side:

Attach tension cable (4) in guide loop (3).

Secure guide loop (3) with screws (1 and 2).

Tightening torque 54 37 15AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Step 5:

Clip in roofliner at rear.

Courtesy of BMW OF NORTH AMERICA, INC.

Step 6:

Connect connector with interior light.

Clip in roofliner at front.

Courtesy of BMW OF NORTH AMERICA, INC.

Step 7:

Clip roofliner into clamps on roof shell.

Check that inner headlining is securely seated. If necessary, bend clamps closed prior to fitting.

Carry out work on the right side in the same way as for the left side illustrated here.

Courtesy of BMW OF NORTH AMERICA, INC.
