Replacing both cushions for backrest width adjustment on left or right front seat

Necessary preliminary tasks:

• Partially remove FRONT SEAT SIDE AIRBAG .
• Remove lumbar support pump. Refer to REPLACING LUMBAR SUPPORT PUMP (WITH VALVE BLOCK) ON LEFT  or REPLACING RIGHT LUMBAR SUPPORT PUMP (WITH VALVE BLOCK) .

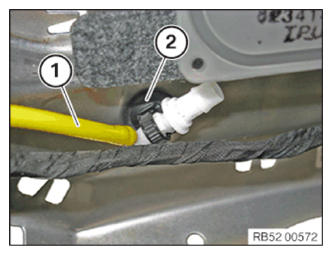

Release air hose (1) from the backrest frame at clip (2).

Courtesy of BMW OF NORTH AMERICA, INC.

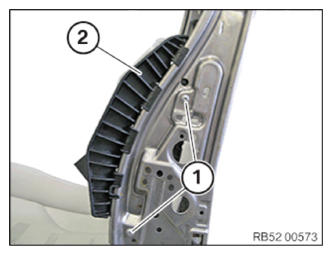

Release screws (1).

Remove carrier plate (2) with airbag.

Installation note:

Insert air cushion without kinks.

Courtesy of BMW OF NORTH AMERICA, INC.

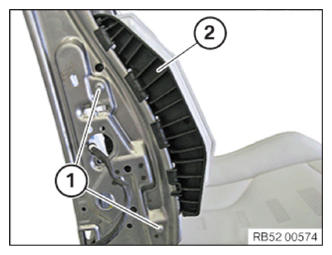

Release screws (1).

Remove carrier plate (2) with airbag.

Installation note:

Insert air cushion without kinks.

Courtesy of BMW OF NORTH AMERICA, INC.
