Removing and installing or replacing rear panel on left or right front seat backrest

Special tools required:

• 2 154 711
• 2 298 505
• 64 1 020

Necessary preliminary work:

• Remove front seat. Refer to REMOVING AND INSTALLING FRONT SEAT, DRIVER'S SIDE  or REMOVING AND INSTALLING FRONT SEAT, PASSENGER'S SIDE .

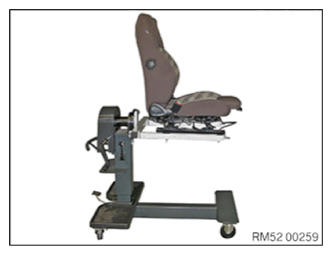

Use of the fitting aid 2 154 711 is recommended for professional repair.

Courtesy of BMW OF NORTH AMERICA, INC.

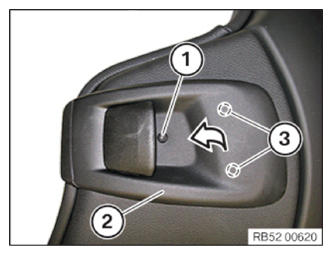

Release screw (1).

Release and feed out the trim (2) at the latch mechanisms (3).

Courtesy of BMW OF NORTH AMERICA, INC.

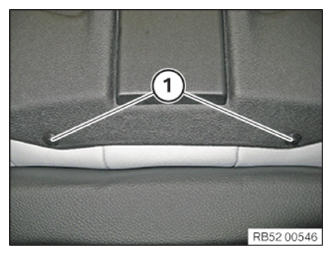

Release expanding rivet (1).

Installation note:

Replace faulty expander rivets.

Courtesy of BMW OF NORTH AMERICA, INC.

Only for vehicles equipped with Competition package:

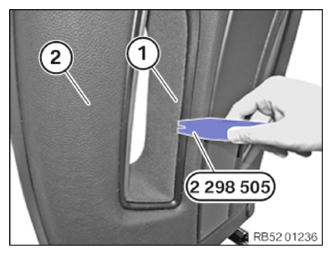

Lift welt (1) for backrest cover using special tool 2 298 505 (wedge) on both sides out of the rear panel (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Completely lift out welt (1) for backrest cover with special tool 64 1 020.

Courtesy of BMW OF NORTH AMERICA, INC.

Tilt backrest cover (1) slightly forwards.

Press rear panel (2) in marked areas to the front and simultaneously remove upwards and to rear.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Guides (1) must not be damaged.
