Removing and installing/replacing left socket housing for rear light (on side wall) (M4 Convertible)
WARNING:
Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .
Necessary preliminary tasks:
- Remove REAR LIGHT .

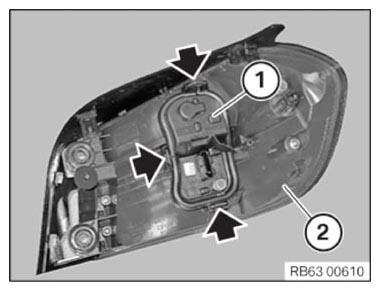

Release latch mechanisms.
Remove socket housing (1) from rear light (2).
Installation note:
Latch mechanisms must not be damaged or missing.
Make sure socket housing (1) is correctly fitted on rear light (2).
Installation note:

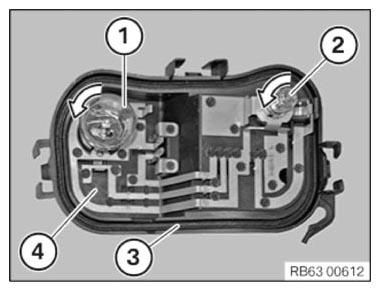

Gasket (3) on socket housing (4) must not be missing or damaged.
Replacement:
Carefully press bulb for reversing light (1) and bulb for rear fog light (2) into socket housing (4), turn in direction of arrow and remove from socket housing (4).
Verify BULB TYPE .
