Removing and installing (replacing) left, rear light (on side wall) (M4 Convertible)

Special tools required:

IMPORTANT: Risk of paint damage!

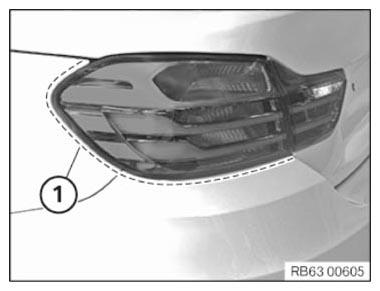

Tape off entire area (1) with yellow plastic adhesive tape.

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen trim (1) on latch mechanisms and remove.

Installation note:

Make sure cover (1) is correctly seated.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

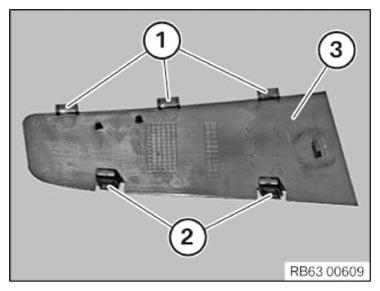

Latch mechanisms (1) and guides (2) on trim (3) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

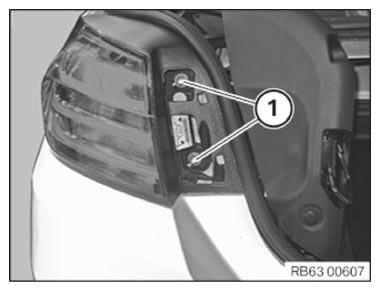

Unscrew nuts (1).

Tightening torque 63 21 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: The rear light is secured in the body with a latch!

In the interests of avoiding damage to the rear light and the paintwork the following text describes how to release the latch.

NOTE: Similar to graphic.

Detach the rear light (2) in direction of arrow from the latch mechanism (1).

Unlock associated plug connection and disconnect.

Remove rear light (2).

Installation note:

Make sure that rear light (2) is correctly locked.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

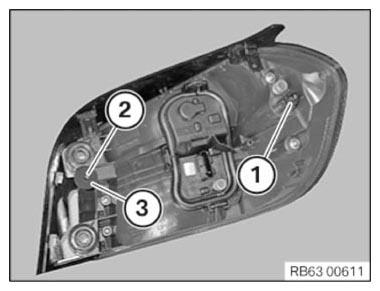

Latch (1) must not be missing or damaged.

Guide (2) and seal (3) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, REMOUNT BULBS .

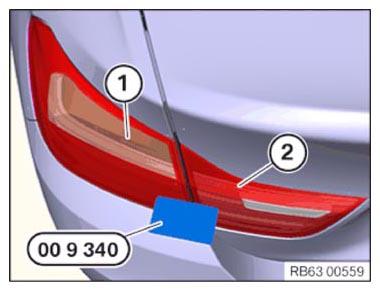

Check gap dimensions using special tool 00 9 340 on rear light (1) and (2), adjust if necessary.

Short length of rear light (1) to rear light (2) is 0 ± 1.5 mm.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

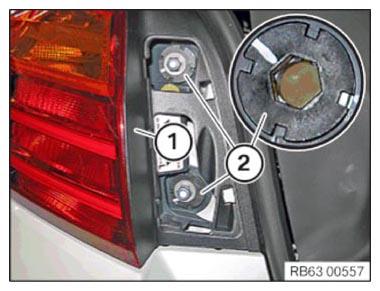

Adjust the gap dimension of rear light (1) by twisting the adjusting elements (2).

Courtesy of BMW OF NORTH AMERICA, INC.
