Replace LED module for left daytime driving lights

WARNING: Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .

Necessary preliminary tasks:

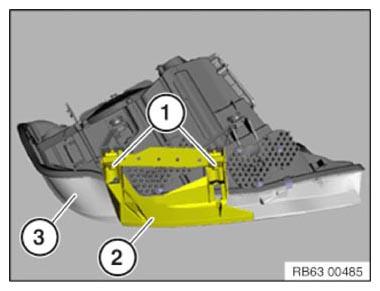

Release screws (1).

Pull guide for bumper panel (2) upward out of headlight.

Courtesy of BMW OF NORTH AMERICA, INC.

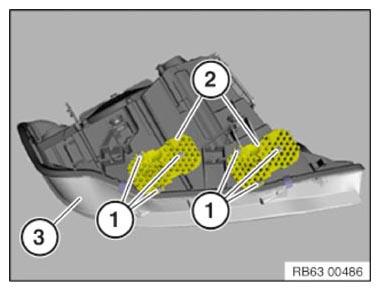

Release screws (1).

Tightening torque 63 11 3AZ .

Pull LED module (2) out of headlight towards top.

Courtesy of BMW OF NORTH AMERICA, INC.

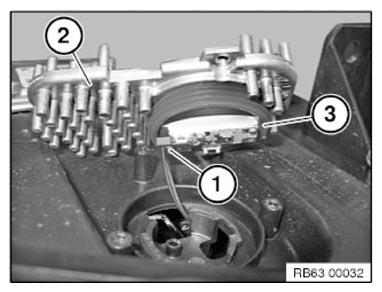

Disconnect plug connection (1).

Remove LED module (2).

Installation note:

Always replace LED modules (2) as a pair.

Replace seal (3) for LED module (2).

Make sure LED module (2) is correctly seated.

Courtesy of BMW OF NORTH AMERICA, INC.
